Project Mazdaspeed 3 Update!

It has been awhile since we provided an update on the shop Mazdaspeed 3. Because we are in a constant state of development for Mazdaspeed 3 parts, our shop car always has parts moving on and off it.

We recently took the speed3 back to stock in order to baseline it on our new dyno. We have been building the car back out again with bolt ons to determine what our max power is on the stock turbo. The car is efficient enough that it can only run 18psi at redline and makes slightly more power at less boost which is interesting see on the dyno. For the final tune, we are running 26psi tapering to 17psi by redline. The peak torque is up 100ft.lbs over stock and really comes on hard. Overall we have seen a 36% increase in peak power and 50% increase in peak torque.

The next thing to do is figure out where the factory injectors die off. With only bolt-ons we are at 85% duty cycle to keep the air/fuel ratio in the 11 to 1 range. Generally a good rule of thumb is to not go over 85% so I can see a huge need for aftermarket injectors or a secondary fuel system.

As for the suspension, not only does the car run our coilovers, camber arms, prototype toe arms, front and rear swaybars, front and rear endlinks, and a few other braces but also some upcoming suspension components that include motor mounts and some others we will be announcing in the coming months.

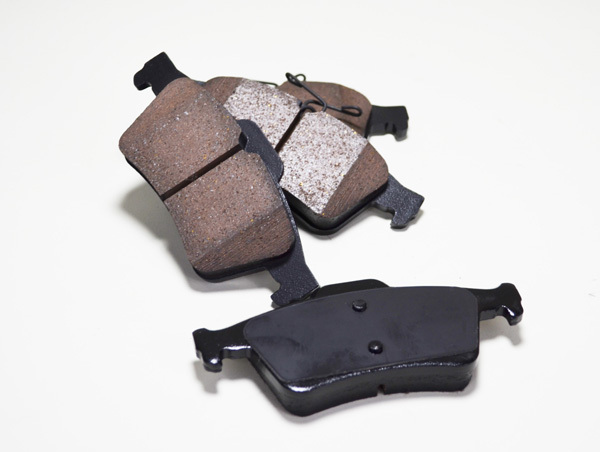

With the power up and the handling on point, we needed to address stopping. We are currently using our prototype brake pads on the Mazdaspeed 3 and our Mazda 2. We went with a compound that is made for the daily driver. They don’t have to be heated up to work very well, will last longer, and stop better than the factory pads. They also dust less which is nice if you like keeping your wheels clean.

The interior is getting a prototype shift knob that should have come from the factory. How many times have you thought that the mazdaspeed3 or mazdaspeed6 shift knob just doesn’t match the rest of the red and black interior? After running a few aftermarket knobs, my biggest complaint was that most of them are made from machined aluminum. Aluminum is not only lighter than the factory weighted knob which makes shifting harder but the first time you grab a metal shift knob on a hot summers day and your skin is on fire you will never forget it. Proper shift knobs should be wrapped and weighted which ours will be and made to compliment the interior styling of the vehicle. Other than that the interior has not much changed.

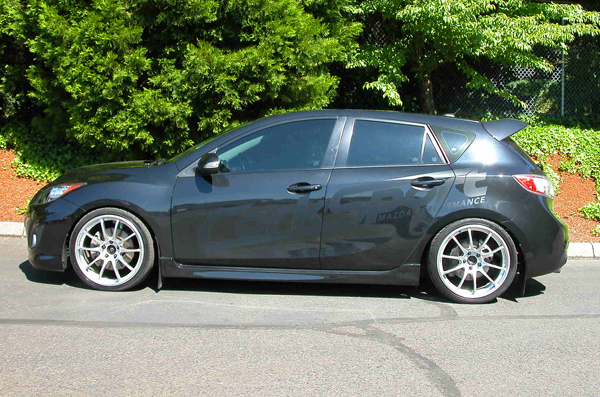

The exterior is back to having the AutoEXE front bumper and is about ½” lower than it was last year which really shows off the 19” Advan RZ wheels.

Current mods:
Engine and Drivetrain
CorkSport Stage II Short Ram Intake
CorkSport FMIC for SRI Kit
CorkSport Cat Back Exhaust
CorkSport Catted Downpipe
CorkSport Silicone Radiator Hose Set
CorkSport Aluminum Skidplate
CorkSport Oil Catch Can

CorkSport Adjustable Rear Swaybar
CorkSport Front Swaybar
CorkSport Coilovers
CorkSport Lower Tie Bar
CorkSport Trunk brace set
CorkSport Shifter Base Bushings
CorkSport Front Adjustable End Links
CorkSport Rear Camber Adjusters
CorkSport Braided Brake Lines
CorkSport Rear Adjustable Endlinks

Interior/Exterior Styling
CorkSport LED Light Kit
CorkSport Stub Antenna
CorkSport License Plate Frame
CorkSport Mud Flaps
J-Spec LED Tail Lights
CorkSport License Plate Relocation Kit
AutoExe Front Bumper
Advan RZ 19×8.5 wheels
Yokohama S-drive 235/35/19 tires

In Prototype
CorkSport Transmission Motor Mount
CorkSport Rear Motor Mount
CorkSport Rear Toe Adjusters
CorkSport Aluminum Coolant Expansion Tank
CorkSport Front/Rear Brake Pads


10 Replies to “Project Mazdaspeed 3 Update!”

  1. Brydon,
    The car looks great! I have a few questions relative to the engine upgrades. I also have a 2010 MS3. I live in Lancaster CA (just outside of Los Angeles). I have installed the following bolt on parts; CS-Short Shifter, CS- Catted Down Pipe with Race Pipe, CS- Cat back exhaust, CS- Stage 2 Short Ram Intake and a FORG (stock location) recirculation BOV. I also purchased the Cobb Access Port Tuner (from CS) (please note I have made additional modifications like new wheels and tires, new brake pads, new spark plugs, CS-Interior LED Kit, CS- Rear LED kit replacing the reflectors a 24″ CS decal on the rear glass and a 36″ CS decal on the front glass). I am in the market to purchase the CS- oil catch can (I hope to get this next month), the CS-FMIC (I hope by the end of the year, but we will have to see) and the HSK Super Sequential BOV Kit (from CS). I also plan on ordering the Garrett GT3071R turbo before the end of the year. With all of this being said, I am extremely new to the turbo seen. I purchased my MS3 in July of 2011. Tyler (from CS) has helped me thru the process of ordering the needed parts to increase the overall performance of the car (thank you Tyler!). I have been looking at different forums and realized that almost all of the forums are telling me that I should install a hi-flow fuel pump or at least the upgrade kit for the stock pump. I noticed that CS has not made any alterations to the stock fuel pump and wanted to know your thoughts on this topic. I am also attempting to obtain a Sponsorship from CS as I want to continue to modify my MS3, but hope to receive some potential help moving forward. I am not sure if CS comes to and of the southern California car shows, but I would love to promote CS in this area. I apologize for the long drawn out comment.

    Thank you,

  2. Been waiting for an update.. But where and how much did you get the autoexe front for? i know u probably ordered it directly from Autoexe so i want to know. REPLY? 😀

  3. Could the upcoming RMM pic you posted on FB yesterday be what you’ve been developing for the Gen2? I hope so….. I have a laundry list of your products I want to purchase when I pick up my 2013 MS3 at the begining of the year.

  4. sorry to go off topic but…. FUCK ME IN THE FUCKING OZARKS!! MICHAEL JUST INSTALL SOME FUCKING FP INTERNALS AND BE DONE WITH IT!!! I guarantee they have replaced the internals on this car already.

  5. Micheal, it sounds like you will need to look at some options for upgrading your internals. Typically want to start thinking about it after you have several bolt-on parts installed on your car.

    We will remain quiet for now on what CorkSport used to upgrade our internals, but they have been upgraded and we will share more about it in a future post.

    Taylor, YES! Be on the lookout for a Nov/Dec release!
