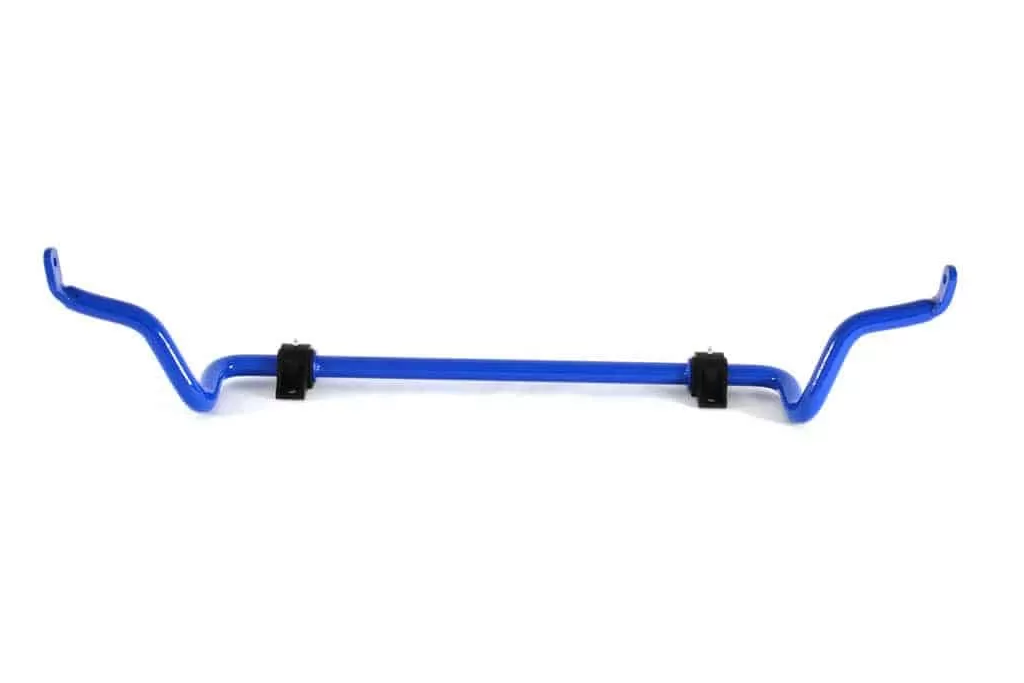

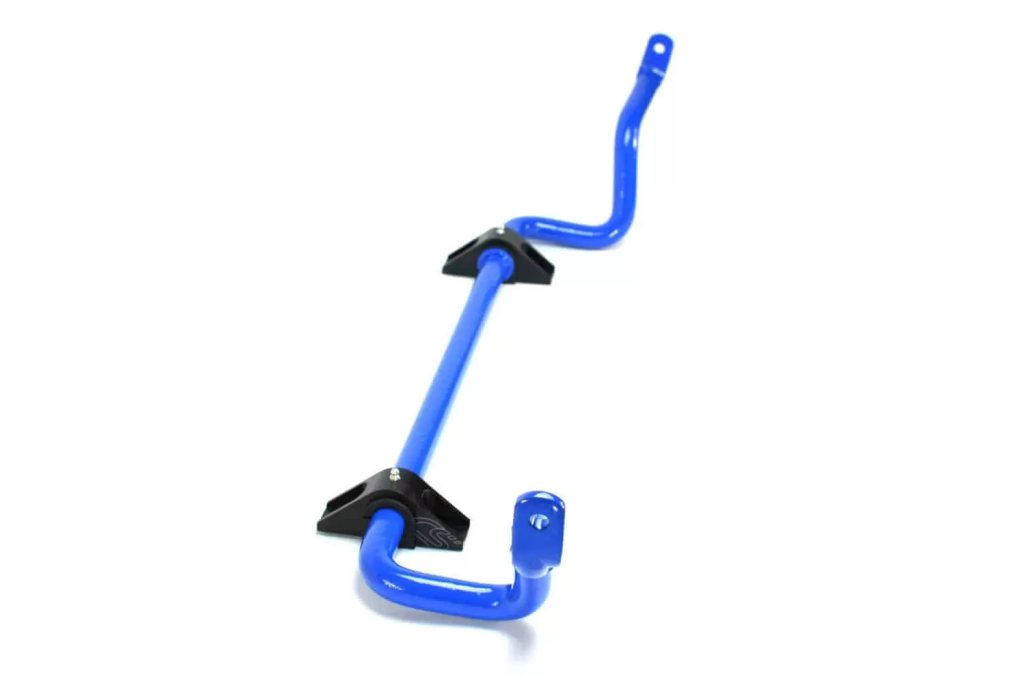

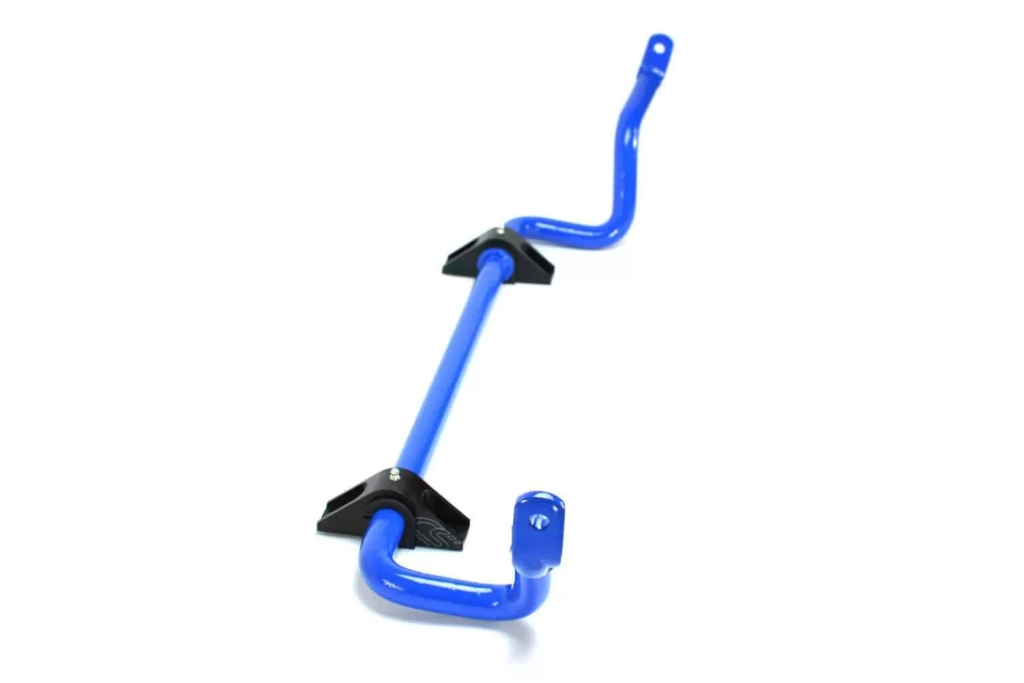

Improve handling and maintain ride height and comfort in your Speed3 while minimizing body roll with the CorkSport Mazda 3 2010-2013 / Mazdaspeed 3 2010-2013 Front Sway Bar. Intended to compliment the CorkSport Rear Sway Bar, this is not adjustable by design. If you prefer more under or over steer, simply set the rear bar firmer or softer to match your driving style. Each sway bar includes machined 6061-T6 aluminum sway bar brackets which are more durable than the stamped steel design common with other sway bars and look sharp with an anodized black finish.

The CorkSport Advantage

Single Piece: A single piece is used to create the front sway bar which adds strength by removing weak points such as welds.

Bushings are included with CorkSport's Mazda sway bar brackets.

Billet Sway bar Brackets: Superior bracket design with grease fittings for easy servicing with 90a durometer polyurethane, our brackets and bushings are the last you will need. Once installed, the reduced bar movement gives you extra confidence when taking corners.

The CorkSport Advantage:

Extra Value: Includes Billet Sway bar brackets, at $79.99 value.
One piece design: CNC bent for precise fit and made from 28mm 4130 Steel.
Fits Skyactiv: All models of 2010-2013 are covered.
Made in the USA: Engineered and manufactured by CorkSport in Vancouver, Washington.
Durable blue or black powder coated finish: can survive the winter driving in areas where roads are salted for snow and ice.
CorkSport Service and Support: Receive a two year limited warranty, full color installation instructions, all of the needed installation hardware, and knowledgeable telephone support.

So I have the rear sway bar and that went in no issue. I ordered this one along with the corksport sway bar end links and not only did the end links not fit the hole they’re supposed to go into, the old ones didn’t either. I had to bring it to a shop so they could bore the hole out a little bit which was kind of a pain. Performs well though and fairly easy to get in otherwise.

James 07/08/2020, 02:33 PM

I installed the CS RSB with the stiffest setting in December of 2016. My 2011 MS3 had an otherwise factory suspension. Then I had the FSB installed in February of 2018 by a reputable mechanic. For those looking to DIY, I highly recommend using a lift for the access and visibility benefits. Installation is a long and involved process, but the benefits are well worth the effort.

Driving impressions....I immediately noticed that the roll balance (front/rear) was more consistent than with just the RSB. In simple terms, the front and rear roll behavior match much better with both big bars installed. The turn-in immediacy and precision provided by the FSB transforms the car and makes it feel much lighter and more agile. I really like the car this way, and for me there is no going back. The swaybars give better roll control, and somehow seem to make the steering more accurate while powering out of corners. Torque steer has not been eliminated, but perhaps it has less leverage on the steering with the big bar. I am murky on the physics, but the impression from the driver's seat is better path accuracy as the differential starts to lock up. A marvelous benefit.

In all, this is a quality kit and I highly recommend it. The brackets are impressively designed and constructed. The bar has had no fitment issues. I had the factory end-links replaced with the CS adjustable ones at the same time as the FSB. Only minor issue was an end-link bolt on the bar side worked loose a few weeks after installation causing a clunking noise = easily remedied after trouble-shooting on a lift.

CA_MS3 03/27/2018, 01:38 PM

I have both this and the rear on my Mazda 5. Yes, the front is a fit for the 5. However, the bolt hole spacing on the brackets was not a match, so I had to do some last-minute "machining" to reduce the spacing 5mm. Everything did bolt up after my ghetto hole-widening.

Note: my stock endlinks died almost immediately. Am installing new, beefier ones (though not the CS model).

Will 07/19/2016, 02:17 PM

I installed his product about 2 weeks ago combined with the Corksport rear sway bar and I must say the suspension feels so much grounded and the amount of road feel is amazing. Best part is that this stiffened my coilover suspension so everything feels tight and I've gone auto X with this product and it truly makes a difference in your steering! Must have

Jose Robert 03/07/2016, 08:12 AM

As a Mazda Tech, I know Mazda put out a TSB in regards to the nuts that actually hold the sway bar to the end links, in both front and back. The TSB says if you have nut type A to replace the nuts, as they are not reusable because they are a lock nut, and could back off over time. If you have type B you can reuse them. I have type A on my car, was wondering if this kit came with new nuts to hold the sway bar to the end link? As I know I would have to replace the nuts anyways.

Eric 06/22/2015, 07:46 PM

Since the is no FAQ, ill ask my question here.

Does your Billet Sway Bar Brackets fit the Front Sway Bar for a Gen1?

When the picture description mentions the Billet Sway Bar Brackets being used, it specifies the rear sway bar. The installation of the Billet Sway Bar Brackets also specifies that they are only for the rear in the title. Plus, the add for the Front Sway Bar says the diameter is 28.5mm. The option of 28mm for the Billet Sway Bar Brackets is smaller then 28.5mm.

Chandler Wendt 05/10/2015, 04:41 AM

Got the front and rear installed 2 days ago, instructions they give you make it easy, customer service is outstanding, and my car handles awesome. Highly recommend

Michael Wallace 02/06/2015, 08:49 PM

Write a review

Will this be able to fit a 2016 mazda 3 sedan?

Asked by Raul Torres | 05/09/2023, 04:05 AM | 1 answer(s)

Does this work on a Mazda5 2012?

Asked by Khan | 10/01/2022, 12:55 PM | 1 answer(s)

One reviewer claimed the holes on the FSB did not fit the end links. Was the correct and if so has this been fixed?

Asked by bill | 09/08/2022, 09:17 PM | 1 answer(s)

What is the diameter of the bar?

Asked by bill | 07/17/2022, 03:56 PM | 1 answer(s)

Please let me know how much stiffer is this over the stock bar at the stiffer setting? Thanks.

Asked by William S Mah | 07/08/2022, 08:45 AM | 1 answer(s)

Does this bar fit a gen 1 mazda 3? I know one is made for the gen 1, I just needa know if this fits the gen 1 as well

Asked by Dominic Fonte | 01/16/2020, 03:46 PM | 1 answer(s)

Does this fit with your TMIC?

Asked by Matt Ross | 12/08/2016, 04:46 PM | 0 answer(s)

Does this fit a 2014+ Mazda3 hatch?

Asked by Andrew Royappa | 02/27/2016, 11:00 AM | 1 answer(s)

Since the is no FAQ, ill ask my question here. Does your Billet Sway Bar Brackets fit the Front Sway Bar for a Gen1? When the picture description mentions the Billet Sway Bar Brackets being used, it specifies the rear sway bar. The installation of the Billet Sway Bar Brackets also specifies that they are only for the rear in the title. Plus, the add for the Front Sway Bar says the diameter is 28.5mm. The option of 28mm for the Billet Sway Bar Brackets is smaller then 28.5mm.

Asked by Chandler Wendt | 06/23/2015, 09:22 AM | 0 answer(s)

As a Mazda Tech, I know Mazda put out a TSB in regards to the nuts that actually hold the sway bar to the end links, in both front and back. The TSB says if you have nut type A to replace the nuts, as they are not reusable because they are a lock nut, and could back off over time. If you have type B you can reuse them. I have type A on my car, was wondering if this kit came with new nuts to hold the sway bar to the end link? As I know I would have to replace the nuts anyways.

Asked by Eric | 06/23/2015, 09:22 AM | 0 answer(s)
