Beginner’s Dictionary to Mazda Mods

Mazda driving down a road.
Always street tune with a buddy for safety. (PC: renson_ms3)

Everyone was a beginner at some point. Whether you’re new to Mazda modding or you’ve been doing it since you first got behind the wheel, you’re bound to run into some terminology that goes over your head.

At Corksport, our customers are family, and we love learning from and educating our family when it comes to Mazdas. The more you know about your Mazda, the better it can be. This terminology cheat sheet of Mazda language will help you talk the talk as you work to reach your modding goals.

Mazda terminology you need to talk the talk

Axle Back Exhaust: An axle back exhaust starts from the area of the rear axle and extends to the rear bumper. An axle back exhaust replaces the muffler, tips, and a portion of piping that connects to the mid pipes. It has the least effect on performance and fuel economy of all exhaust mods.

Built Block: A built block is a term used when the engine internals are upgraded with higher performance variants over OEM. In most common cases a built block is referred when both the connecting rods and pistons have been upgraded for more strength.

Camber Kit: A camber kit usually consists of a rear camber arm and front camber plates. In addition to correcting wheel alignment on lowered vehicles, a camber kit provides camber adjustment for tracked vehicles which require a slightly negative camber. Correcting the camber is important for even tire wear and maximum traction. Learn more about Camber.

Cat Back Exhaust: A cat-back exhaust begins at the end of your catalytic converter and goes all the way back to your rear bumper. It is made up of a rear-pipe, resonator, and muffler. A cat-back exhaust system can provide more power, increase fuel efficiency, and deliver distinct sound.

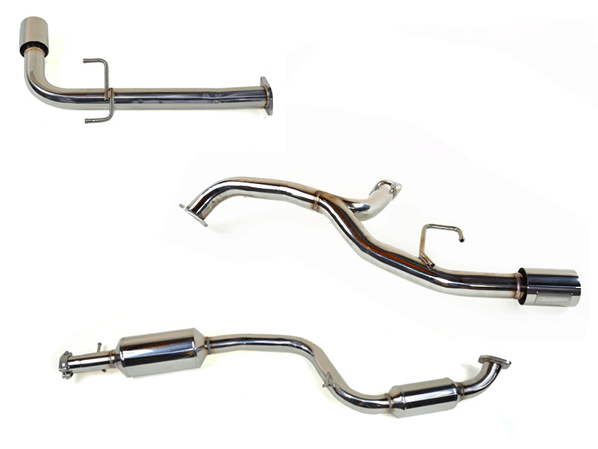

CorkSport cat back exhaust.

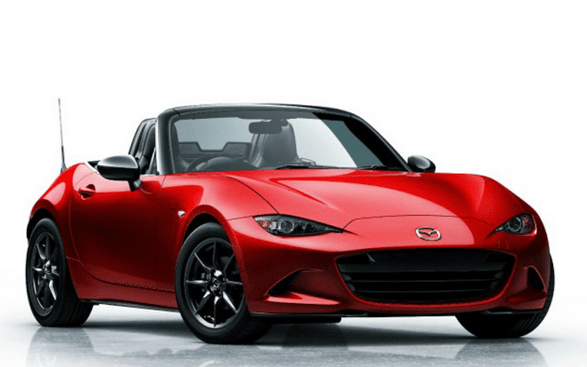

Mazda MX-5 with cat back exhaust. (PC: jdm.chris

Cold Air Intake: A cold air intake essentially lets your engine breathe. Cold air intakes move the air filter outside of the engine compartment so cooler air can be sucked into the engine for combustion. Cooler air brings more oxygen into the combustion chamber and that means more power.

Dyno Tune: Dyno tuning is a systematic approach to engine tuning, allowing a high-quality precise tune-up. During a dyno tune, the vehicle is stationary in a controlled environment.

Front Mount Intercooler: A front mount intercooler cools the charge air from a turbo or supercharged car. Mounted on the front of a vehicle, this intercooler results in better airflow and a higher cooling efficiency. Hot air enters one side and cool air exits the other.

Front mount intercooler on Mazda.
Kyle Sousa’s Mazdaspeed3. (PC: Kyle Sousa)

Lowering Springs: Lowering springs improve the appearance and handling of a vehicle. By lowering the center of gravity on the car and winding the coils closer together, a lowering spring can make the car feel more connected to the road for better cornering. Lowering springs will also give a more aggressive-looking stance and reduce the vehicle’s fenderwell gap.

Mod: Mod is short for modification. Mods are usually performed to enhance the performance and appearance of a vehicle.

NATOR: NATOR is a group of Mazda enthusiasts who come together to share knowledge about their beloved cars. As the story goes, it all began when a few guys got together to work on their Mazdas while enjoying Wendy’s Baconators. BacoNATOR. We can’t make this stuff up.

Join a NATOR near you.
NATOR group doing their thing.

OEM: Original equipment manufacturer.

Oversteer: Oversteer happens when the rear tires reach their limit before the front tires while cornering, leading to the tail opening up.

Powertrain Control Module: A powertrain control module, commonly called a PCM, is the onboard computer of a car. Essentially the brains of the engine control system, it controls many components of a vehicle and is used for diagnostics.

Short Ram Intake: A short ram intake, also referred to as an SRI, is a mod for internal combustion engines. It consists of a short metal or silicone pipe and a conical air filter inside the engine bay. A short ram intake increases power by eliminating the resonator and filter box, giving the air a shorter travel distance.

Short Shifter: A short shifter changes the geometry of the shifter so the distance of the shift lever is reduced. It moves the pivot point higher up the shift rod causing you to move the shifter less distance, with a shorter throw, transforming the driving experience.

Street Tune: Just as it sounds, a street tune or road tune happens on the street. It should be done to maintain the driveability of the system after the top end has been addressed on the dyno.

Sway Bars: A sway bar, also called a roll bar, anti-sway bar, or stabilizer bar, is a part of the suspension that helps reduce the body roll of a vehicle during fast cornering or when driving over uneven road. It connects opposite wheels together through short lever arms linked by a torsion spring.

Understeer: Understeer is when traction is lost at the front wheels while cornering, forcing you wide on a bend despite applying the correct steering angle. If your car is understeering, your speed is not at its maximum and you’re missing the line.

Want to add to our lingo list? Hit us up on Facebook or Instagram and let’s hear it!

What’s That Sound? Suspension Troubleshooting Guide

Good day, Mazda enthusiasts everywhere. In this tech blog, I want to share some tips with you guys and gals on how to diagnose suspension noise, and how to help pinpoint the source of your suspension problem.

It’s impossible for this blog to be the bible of suspension component noise, nor do I intend for it to be. The design, function, engineering, and workings of suspension could take several books to explain. The intention of this post is to help you ask the right questions and create a more methodical approach to diagnosing suspension noise. Hopefully, by the end of this, you will have that much more of an understanding of what might be going on before you take it in for some work.

Understanding Your Suspension

Suspensions are one of the trickiest and most commonly misdiagnosed parts of the car for a variety of reasons. The suspension components all work as a unit when driving. So when you’re navigating a turn, the springs and struts, shocks, ball joints, control arms, tie rod ends, sway bars, and more are all doing something different in an effort to keep you anchored to the road, all while trying to do their job quickly, quietly, and efficiently. For that reason, it can be tough to tell which part is doing its job and which part is causing the headache.

Another tricky issue to work with is the fact you can normally only replicate the problem while driving. It’s kind of hard to make a turn going 30 mph while poking your head under the chassis to hear what’s clunking. All of that, plus the fact that you’re not sure if it’s coming from the left or the right side of the car (or perhaps even from the front or back), can make it that much harder to find the awful noise you’re wanting to eliminate.

How To Start Troubleshooting

When diagnosing suspension related concerns, I always like to start with the tires. We start with the tires because, when it’s all said and done, the suspension is trying to keep those four little square contact patches firmly on the road all the time and under every condition. Reading the tires tells us a story of what the suspension is doing.

If the tires are cupped, then we may have bad struts or shocks. If there is excessive wear on the inside of the tires, then it could mean we are having a camber issue and perhaps have some worn out control or camber arms. Feathered wear can indicate poor toe, which can be caused by bad tie rod ends. Being able to interpret tire wear can be very beneficial in our suspension diagnosis. Below is a chart with some of the most common types of wear.

Tire Road Automotive Maintenance

Making A List of Occurrences to Diagnose the Issue

Now, the main reason you want to report a suspension problem is due to noise. The first question to ask is: When did the noise start?

  1. Did the noise start after you hit a really big pothole in the road?
  2. Did it start after you installed some new struts and shocks?
  3. Is it a noise that has slowly gotten louder over time?

If the noise has developed over time, then it could have something to do with aged components. If the noise started up after installing some sort of upgraded suspension component, then we want to double-check the work and make sure nothing was left loose or installed inappropriately.

You’ll also want to see if the replacement of your new part accelerated the wear of an older part. An example would be replacing front struts with 100K on them without replacing the strut mount bearings. The new and fast reacting component of the upgraded struts can unmask the worn out strut bearings you had the whole time. It’s like buying a new pair of shoes but still keeping the old laces. Some of these components heavily rely on the other.

Conditions Of The Noise In Question

  1. Is the noise only on certain types of road surfaces?
  2. Does the noise vary with speed?
  3. Is it only over bumps or on full steering wheel lock?
  4. Does the noise come from both sides or just one?
  5. Is the noise more pronounced in cold weather versus hot?

All these questions and more need to be asked to paint the best picture of the problem. Generally speaking, most clunking comes from loose components such as sway links and tie rod ends that were not securely fastened. Loud bangs or knocking sounds are from physical contact of hard items. Inspect the suspension for shiny spots that indicate where two pieces of metal are hitting each other. Squeaks and squeals will generally come from components that rotate over each other. In this case, examine strut bearings and sway bar bushings.

Once you have asked yourself the correct questions, it’s always a good idea to inspect the components and check the condition. When inspecting the front suspension, it’s good to look for the obvious stuff first, such as bent end links or control arms, broken springs, worn out bushings, leaking shocks, or torn dust boots. Don’t forget the steering system is incorporated into all of this as well; parts such as tie rod ends and wheel bearings should also be examined.

While this is not the be all end all, if you begin your diagnostic approach by asking the correct questions and looking for the simple things first, then it ultimately will make everyone’s job a little bit easier. Stay on the lookout for some more tech blogs and further follow-ups. If there’s ever something you want us to write about, be sure to let us know in the comments section below.
