CorkSport’s Mazdaspeed 3 Stage II Engine Mount

You may be surprised to hear that there is yet another Rear Motor Mount available for the Mazdaspeed 3 platform in a market with more than a handful of options; however, this one is different. This RMM takes the idea box and kicks it to side as it makes a great leap towards style, performance and refinement. Ladies and Gentlemen, this is the new CorkSport Stage 2 Rear Motor Mount.

If you are even remotely familiar with the OE style (and many aftermarket options) RMM then you can clearly see that the CorkSport Stage 2 RMM is drastically different. Now let me explain why this is a good thing.

We all understand that the engine mounts isolate the engine from the chassis in an attempt to reduce and/or eliminate undesirable vibrations and noise experienced by the driver. That’s great and all, but what is really important is how the isolation is executed, specifically by the RMM. First, some background information.

There are three motor mounts working together to suspend the engine so let’s talk about the other two real quick. The transmission and passenger side motor mounts reside on the furthest ends of the assembled transmission and engine, respectively. These do most of the work supporting the engine given their positions, but a side effect of that is the aggressive rotational force they allow the engine to exert due to their transverse setup. This is where the rear motor mount comes in by managing the rotational force from the engine when applying power to the axles/tires.

Let’s take a look at the diagram below:

In the diagram we are looking at the OE RMM installed on the vehicle. This view is looking at the RMM from the right hand side of the vehicle. The diagram also attempts to show the general location of the transmission mount which is approximately where the transverse pivot point of the engine lies.

The engine exerts the rotational force onto the RMM shown with the double end red arrow. This can be further broken down into directional components as shown with the blue arrows. The forward force is unavoidable due to the design of the system in a whole, but the downward force can be reduced or even eliminated with a clever design such as relocating the damping material from the OE location to a location closer the engine pivot point. Note the length of the blue arrows as it will be different in the following diagram.

There are two key aspects of the CorkSport Stage 2 RMM that contribute to its superior performance and low NVH (noise, vibration, & harshness). First is the rigid design of the mount that installs into the sub-frame. This nearly eliminates any up and down pivot capabilities at the sub-frame thus reducing the magnitude of the up/down motion the RMM will allow. This feature has been used by a couple other manufacturers in the community because of is superiority. Second, and more importantly, is the location and orientation of the polyurethane bushings. The horizontal orientation of the bushing allows the bushings to function and support load in the same direction the engine exerts force. This results in a more durable design with less NVH.

Now comes the big game changer…the location of the bushings are in a location never done before in the Mazdaspeed 3 platforms. Comparing the OE RMM pivot location vs the CorkSport pivot location you will see that the CorkSport design moves the pivot point of the RMM forward in the vehicle. This is important because of how it relates to the natural pivot location of the entire engine/transmission. Moving the RMM pivot location further forward reduces the amount of downward force applied to the RMM at the sub-frame, thus reducing the NVH without compromising performance. This is shown with the different length blue arrows in the diagram. This allowed us to use very stiff 95A durometer polyurethane without compromising driver and passenger comfort.

Anyways, enough with the technical stuff; check out this video comparing the OE RMM and CorkSport Stage 2 RMM in action.

If this hasn’t blown you away already then let Jason Atwell’s Beta test review set it in stone for you…

“Tested out the new CS RMM and I’ve gotta say; I was dead set on the gold RMM I was currently using. Once I got the CS one, I installed it right away. The fitment was spot, I hoped in the car and took it for drive and noticed an even more solid feel in the shifts. The vibes are about the same as the gold RMM so all in all I’d have to say it’s a fantastic product and would recommend.” – Jason Atwell

Get your CorkSport Stage 2 RMM today here!

New and Improved Mazdaspeed 3 Lower Tie Bar

CorkSport is proud to announce the new Lower Control Arm Tie Bar for the 2007-2013 Mazdaspeed 3. The lower tie bar is designed to increase the stiffness of the front sub-frame assembly to improve driver feedback by reducing wheel hop and torque steer.

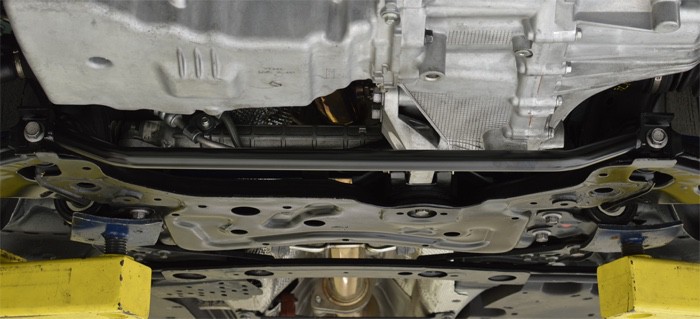

The CorkSport Lower Tie Bar works by connecting the front LCA inboard pivots together to add stiffness to the front of the sub-frame assembly as shown below.

The Mazdaspeed 3 lower tie bar improves driver feedback by reducing wheel hop and torque steer.

Continue reading “New and Improved Mazdaspeed 3 Lower Tie Bar”

Just Released: CorkSport Cold Air Intake System for the 2016+ MX-5

Introducing the CorkSport Cold Air Intake System for the 2016+ Mazda ND Miata. Maintain your cool intake air temperatures without the restriction of the OEM intake.

2016-Miata-Intake-Airbox-700

The CorkSport CAI System was designed with performance, functionality, and significance in mind. This is not just a piece of metal pipe with an air filter on the end. This was thought out and designed with the latest technologies to give you a no compromise intake system for your favorite weekend toy.

2016-Miata-Mx5-Cold-Air-Intake-System

First, we focused on the system performance since we all want to go fast, right?

This proved to be more difficult than expected. Mazda did a good job designing their intake, but they did leave some room for improvement when you combine hard parts and a proper tune. Now, this isn’t surprising since cars have become more and more dependent on the tune, not just the physical parts. Below is a dyno-graph of the OEM intake system versus the CorkSport CAI System; a net gain of 3-4 WHp with the OEM tune.

2016-Miata-Intake-System-Graph

So, what makes the CorkSport CAI System superior?

We wanted to create a system to provide smooth laminar flow which means removing any abrupt edges, sudden expansions, and tight radius bends. First, we use an AEM performance dry-flow filter that features an internal velocity stack design. Then we matched the billet aluminum MAF inner diameter to the filter for a seamless edge that provides smooth flow to the MAF sensor. Leaving the MAF, you see another velocity stack expansion with just a 2mm edge as the air enters the 4-layer reinforced silicone with large sweeping bends. Check out the cut-away view below!

2016-MX5-Intake-System-Interior

Next, is the functionality of the CorkSport CAI System. We wanted the CAI to be a quick and easy installation without the need to remove the bumper or any other intensive parts. The cold air box is designed in CAD and through the iterative process of design, a 3D print, and test fittings, we were able to produce a box that fits great and still utilizes the OEM rubber isolators for mounting and the OEM cold air ducting.

2016-MX5-CAI

Finally, we wanted to ensure significance of the CorkSport CAI System, because nobody wants a piece of pipe with a filter on the end flopping around in their engine bay. We knew our awesome customers wanted more than just great performance. We know you want it to look great and that you’ll want to brag about it because we’re all car guys and gals, right? The CorkSport CAI uses premium silicone, a beautiful black anodized billet aluminum MAF housing, stainless fasteners, and high quality thermoformed ABS that blends nicely into your engine bay.

2016-Miata-Cold-Air-Intake-Underhood

2016-ND-Miata-Intake

Don’t wait any longer! Get your CorkSport Cold Air Intake System today! Pair it with a pro-tune and really wake up your favorite weekend toy!

Cheers,

CorkSport

Corksport Aluminum Swaybar Bracket

Feeling a little loose in the rear end lately?

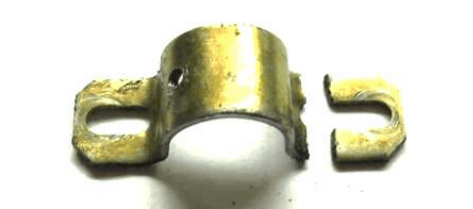

Take a peek and you will probably find another broken steel, gold zinc-coated bracket.  Stop your 4 month ritual to the local auto parts store and upgrade to something much better!

Gold Zinc Coated Bracket

Introducing the new CorkSport Sway Bar Bracket!

Manufactured from high-grade 6061-T6 aluminum, these precision machined brackets are strong, durable, and look great.  Plus it’s 100% designed and manufactured right here in the Pacific NW, USA. (BUY NOW)

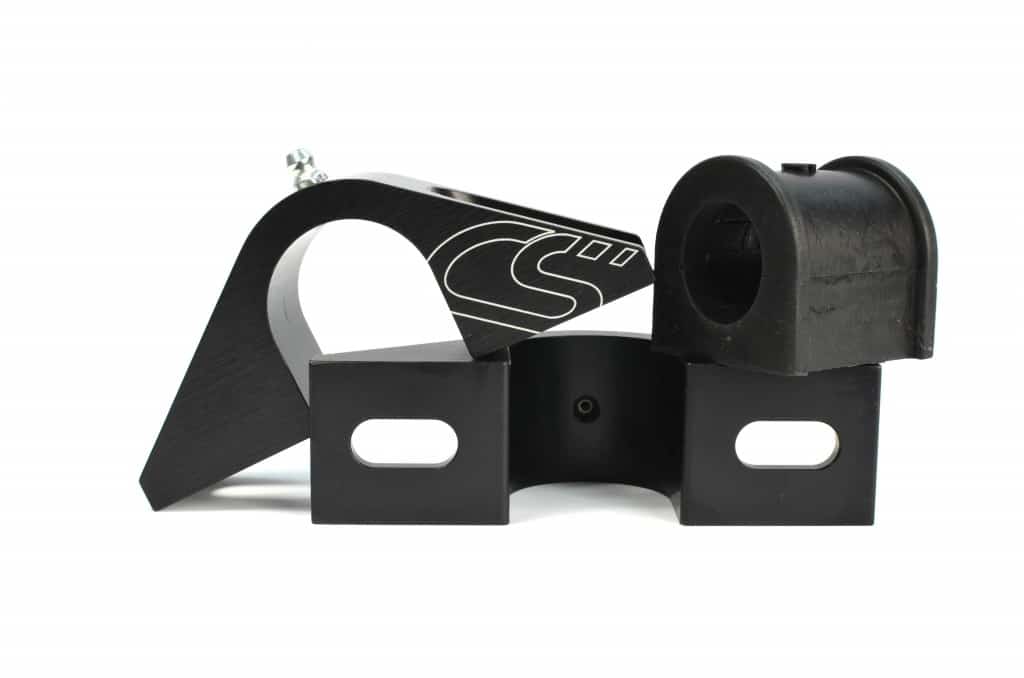

CorkSport_Mazdaspeed_Heavy_Duty_Swaybar_Brackets_Group

But wait, there’s more!

Not only did we fix the broken bracket problem, we went a step further.  We use 1” and 1-1/8” poly bushings to really get your sway under control.  Made from 90A durometer polyurethane, these bushings are far stiffer and much more durable than rubber bushings.  Polyurethane will not deform or crack over time like the rubber counterparts so frequently do.

CorkSport_Mazdaspeed_Heavy_Duty_Swaybar_Brackets_Logos_Bushing_Top

Time to get technical!

If you have any doubts about the strength of the CorkSport brackets then let the next images put your mind at ease.  The magenta arrows represent the force that is applied in the approximate direction that the bar pushes on the bracket.  The green arrows represent the “fixturing” or bolting of the bracket to the vehicle. cgi bracket force chart

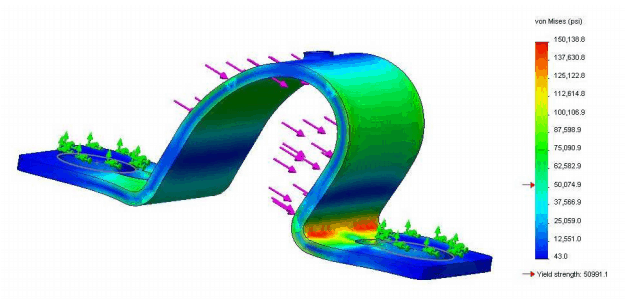

Above is the FEA (Finite Element Analysis) result after applying a force of 1000 lbf to the steel bracket.  Obviously the bracket has deformed significantly, but is also an exaggeration to show the deformation.  The deformation scale factor is 16:1 (I’ll talk about this in more detail later).  Now there are two key things to see from this image. 1. The yield strength of the material is ~51k PSI, but you can clearly see that the maximum stress in the bracket is ~150k PSI.  2. That maximum stress is represented by the color red.  If you look back at the first image in the blog you will see where the typical fracture in the bracket is; the exact same location as the red in the image above.

Now let’s take a look at the CorkSport bracket with the same force in the same direction.

cgi bracket force chart2

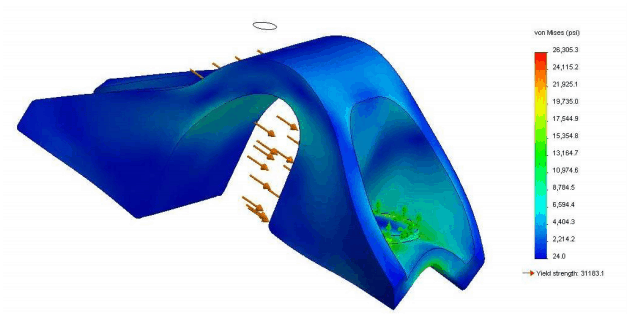

Above is the FEA result after applying a force of 1000 lbf to the aluminum CorkSport bracket.  Obviously the bracket has deformed significantly, but is also an exaggeration to show the deformation.  The deformation scale factor is 192:1 (Yup, you read that right).  Now let’s compare those two key things. 1. The yield strength of the material is ~31k PSI, but you can clearly see that the maximum stress in the bracket is only ~26k PSI.  2. The bracket is not experiencing any yielding (permanent bending) due to the 1000 lbf.

Let’s talk about that “deformation scale factor”.  In most instances when conducting FEA, the material deforms so little that you can’t actually see it.  To assist in the designing process the computer program automatically scales the deformation (exaggerates it) so that the naked eye can easily see it.  So what’s another way to “look” at this deformation scale factor?  If the same force of 1000 lbf is applied to both brackets, yet the steel bracket has a 16:1 (small exaggeration) scale and the CorkSport bracket is 192:1 (extreme exaggeration) scale, then there is an obvious difference of strengths.

With such a huge difference, my engineering curiosity kicked in, I began investigating. The conclusion I came to is staggering.  The steel bracket began to yield when a mere 350 lbf was applied, whereas the CorkSport bracket could handle 1200 lbf.  This means that the CorkSport bracket is nearly 3.5 times stronger than the steel bracket!

Excited yet? You should be! Stop your 4 month ritual right now with the CorkSport Sway Bar Bracket Kit!  Zoom-Zoom!

-Barett, CS Engineering

ABOUT_BLOG_General

Corksport Aluminum Crank Pulley for 2.0L & 2.5L SkyActiv Engines

Feeling like your SkyActiv powered Mazda isn’t getting the “shining” attention it deserves? Maybe you’ve already bought every CorkSport item you can, but just want more! I can’t blame you really; it’s a virus that all car fanatics fight.  So here’s fuel for the fire! Introducing the aluminum crank pulley for 2.0L & 2.5L SkyActiv engines!

Screen Shot 2014-12-18 at 1.54.58 PM

Manufactured from high-grade 6061-T6 aluminum, this precision machined crank pulley is sure to give you that extra level of detail you’ve been searching for. Plus it’s 100% designed and manufactured right here in the Pacific NW, USA.

Screen Shot 2014-12-18 at 1.57.41 PM

This crank pulley isn’t just for looks folks, it’s got bite too!  With a 68% weight reduction, compared to the OEM component, your engine is going to rev faster due to the lower moment of inertia of the rotating mass.  I can’t guarantee your bum will feel the difference, but your 2.0L will.

You may also be wondering: “The OEM component is steel, will the aluminum be strong enough?” Absolutely! We’ve been testing the component on an employee car for 2 months (roughly 2000 miles) without a single issue. The accessory belts put a very small, almost insignificant, amount of force on the pulley.  The real concern is the bolt that holds the pulley on, but we got that covered also, see below.

corksport-mazda3-crankshaft-pulley-isometric-vonmises-stress-psi-700x586

To be confident in the products we produce, we conduct FEA (Finite Element Analysis) on all applicable components.  In this case it is the bolt clamping force holding the pulley on the crank.  The crank pulley bolt is an M16x1.5 with a torque spec of 67-80 ft-lb.  For this analysis I used 79 ft-lb which creates a clamping force of 7557 lbf.  Looking at the color graph to the above, you can see that the maximum stress is ~12420 psi which is far below the material yield strength of ~40k psi.  So what does this mean to you? You can (but shouldn’t) torque that bolt down to ~250 ft-lb without worrying about your beautiful new pulley being structurally damaged, but you will have to worry about getting that bolt out next time, that’s your own problem.

Crank Pulley

Add some shine to your engine bay and just a little more pep in your step.  Keep an eye out for the product release in the near future! Offered in anodized black.  Zoom – Zoom!

Barett – CS Engineering

ABOUT_BLOG_General

Product Release!! CORKSPORT 2010+ Mazda 3 Skyactiv Air Box for CorkSport SRI

Help limit your CorkSport Short Ram Intake from sucking in hot air with the CorkSport SkyActiv Cold Air Box for the 2010+ Mazda 3 Skyactiv. By coupling your Short Ram Intake with a cold air box, you will see the benefits of the intake system without the pressure drops inherent to longer tube intakes. Using the CorkSport Cold Air Box helps block hot air from the engine, while keeping open the access to cool air from the inner fender.  Our Cold Air Box has undergone extensive testing at various ambient air conditions to verify performance in all conditions.

CorkSport SkyActiv Airbox

Made of durable and lightweight FRP construction the CorkSport Mazda 3 SkyActiv Air box is strong and lightweight, but looks great under your hood. Simple instructions make the CorkSport SkyActiv Air box easy to be installed by anyone with a CorkSport Short Ram Intake. With the SkyActiv Airbox your intake will stay cooler, which means your engine will run better. Whether you sit in a lot of traffic, live in a hot climate, or simply have noticed too much heat-soak, the SkyActiv Air box is the solution to loss of power due to high under hood temperatures.

SkyActiv-Airbox-Installed



The CorkSport 2010+ Mazda 3 Skyactiv Air Box for CorkSport SRI is available at our online catalog for only $99.99 and is ready to ship now. For more information please visit our product listing at:https://www.corksport.com/corksport-2010-mazda-3-skyactiv-air-box-for-corksport-sri.html

CorkSport Coilover Develpment Process

There are many features and design elements that can be incorporated into coilovers so when CorkSport decided to design new coilovers for the Mazda 3 and Mazdaspeed 3 we had to come up with priorities. We asked the Mazda community what features they wanted to see incorporated and what we came up with and will be releasing in the near future fulfills all of those wants and needs at a competitive price.

You told us you wanted inverted struts. We decided on a 45mm inverted strut body for the fronts and traditional strut bodies for the rear. There are some huge advantages to inverted struts. Inverted refers to a strut that is built upside down. The shaft that moves actually holds the gas or oil in some cases. Traditionally this is held in the lower section of the strut and moved up and down as the control arm moved up and down. The first huge advantage to inverted struts is the unsprung weight. This refers to the weight that your suspension holds. If the weight is on a portion of the suspension that moves this is referred to sprung weight which we limited by moving the factory oil and strut body to a hard mounted body position so the only weight that has to move is a hollow body.

The second advantage of inverted struts is side loading. With Macpherson style struts in the front, your suspension is literally held together by the strut. By increasing the surface area on the strut tubes we increased the rigidly of the structure to make a more stable suspension, which is great if you like a good autocross day, track day or a drive through the twisties.

The rear of the Mazdaspeed 3 and Mazda 3 uses a multilink suspension meaning the rear is tied together in a way that the suspension doesn’t hold any load. There was little need to go to an inverted strut in the rear so we decided against it.

For those of you out there that need data, we have what you want.

If you have ever tried to dig up data on coilovers, you may have found that it was hard to actually get the compression and rebound on the settings. Now I am not sure if this is because it is a tightly guarded secret or most company’s just don’t fully test their struts before sending them out, but we wanted to make sure that ours would be the best option on the market and out last the factory struts in every way so we tested all of the struts for rebound and compression on professional tooling.

The data below breaks down rebound and compression into six twists of the dampener knob. They are 15 way adjustable but by showing the six major steps the data is a little easier to absorb. Now you can have the important data that no one else seems to want to share.

Another important part about choosing coilovers is comfort. Yes, they will be stiffer than stock but there are ways to limit the stiffness so that the system is not undrivable on harsh roads.

Up front we added helper springs to make those little bumps and potholes take less impact on your vehicle. It can also save those nice wheels from bends and dings. The 15 way adjustment front and rear also helps. With easy adjustment you can go soft for the weekdays and stiffer for the weekends. You can also combine dampening and swaybar adjustments to make that perfect combination for your driving habits.

After you really get comfortable with the adjustments you can start changing endlink preload, sway bar adjustment, strut dampening, camber settings and toe settings.

In January, CorkSport released the front camber kit for the Mazdaspeed 3. Aside from the obvious ability to change camber, these camber plates have a lot of advantages over the factory camber plates so we decided to incorporate these into our coilover design. Using thick machined aluminum, high-grade bolts and tightly machined plates and bearings they will hold up to almost all abuse. They also get rid of the unwanted flex in the factory rubber mounts.

Now that we have covered the front coilovers we can learn a little about the rears. Because the system is a multilink rear suspension we have a separate spring and shock combo. In order to again have great ride quality with great handling we went with a progressive spring. In order to have ride height adjustability, we produced an adjustment device for the spring that is easily adjusted with an Allen wrench from the bottom of the spring.

The rear shocks are 15 way adjustable just like the fronts and can be adjusted in length to match any setup of the coilover springs. We have also accommodated for the differences between the Gen1 and Gen2 struts so everyone can enjoy these coilovers. For those people who like a little more camber in the rear, you don’t have to worry because we are currently in development of camber adjusters for the rear.

Even at the lowest settings we were able to dial camber into factory spec but some of us like more adjustments to their suspension settings. Soon CorkSport will release our camber adjustments for the rear. There will be another blog on camber coming soon.

We are in the final stages of testing on the coilovers and will be announcing the release soon! To be included on our pre-release list for advance information on this product, please email gwynne@corksport.com

Brydon-

Product Release! CorkSport Mazdaspeed 6 License Plate Relocation Kit

CorkSport is pleased to add the License Plate Relocation Kit to its growing line of styling products for the Mazdaspeed 6!

An easy upgrade to boost the look of your Mazdaspeed 6, the newly released license plate relocation kit will allow you to move your license plate to the OEM tow hook location on your vehicle allowing you to improve the overall look of the front bumper of your vehicle without requiring any permanent modifications.

The CorkSport Mazdaspeed 6 License Plate Relocation Kit is made from impact and temperature resistant ¼” lexan with a billet machined mounting base for added strength. The hardware is made from stainless steel and the base is anodized black for added protection against the elements.

“Our Mazdaspeed 3 License Plate Relocation Kit has been a huge success so it only made sense when we got a couple customer requests for this product, to develop it for the Mazdaspeed 6 as well,” said Rich Harris, President of CorkSport Mazda Performance, “I think our Mazdaspeed 6 customers will be impressed with the quality and fit of the CorkSport License Plate Relocation Kit on their vehicle.”

As with all CorkSport products, the Mazdaspeed 6 License Plate Relocation Kit comes with a two-year limited warranty, full color installation instructions and CorkSport service and support. For added support, this kit also has a complete installation video.

The new addition to the CorkSport Mazdaspeed 6 line is priced at $88.00, making this an easy and inexpensive way to boost the look of your Mazdaspeed 6. Installation for this parts takes only about a half hour and will significantly improve the look of your front bumper.

For more information about these products, please visit the CorkSport online catalog at www.corksport.com

CorkSport Announces Expansion of Mazdaspeed 3 Front Mount Intercooler Product Line

CorkSport Performance is pleased to announce another addition to our Front Mount Intercooler line for the 2010+ Mazdaspeed 3. The latest kit is designed specifically to accommodate the CorkSport Power Series Short Ram Intake, giving customers the flexibility to purchase a kit that will accommodate a short ram intake while providing the maximum air cooling capabilities that can only be achieved with a front mount intercooler.

The factory top mounted intercooler can easily be over worked and overheated due to its smaller size. In return, the intake air temperatures rise causing a loss in power. Rather than mount the intercooler under the hood where it receives minimal air flow and is constantly surrounded by engine heat, the CorkSport Front Mount Intercooler Kit for the 2010+ Mazdaspeed 3 features an optimum front mount position to maximize exposure to ambient airflow. This not only increases overall cooling at every boost level, but dramatically reduces heat soak.

Unlike many other front mount intercoolers, the CorkSport Front Mount Intercooler for Short Ram Intake does not require any cutting or trimming of the vehicle and features a 24x6x3.5” aluminum core with custom cast end tanks and 2.25” aluminum mandrel bent piping with bead rolled ends connected with your choice of black, red, or blue silicone couplers and stainless steel T-bolt clamps.

The CorkSport FMIC Kit for SRI has been developed and tested specifically for the 2010+ MazdaSpeed 3 in all types of conditions including hot and cold, rain and snow, freeway driving, and stop and go traffic. During testing, the Front Mount Intercooler saw a pressure drop of approximately 2psi and a maximum efficiency of 85%. When coupled with the CorkSport Short Ram Intake, customers will benefit from substantial gains in torque and horsepower.

The best value on the market, CorkSport will be offering the new Front Mount Intercooler Kit for just $699.00 which includes all of the needed installation hardware and a two year standard warranty. As an added value, customers will now also be able to purchase the CorkSport Power Series Short Ram Intake at a reduced price of just $200.00 with the purchase of the Front Mount Intercooler Kit.

For more information about the CorkSport 2010+ Mazdaspeed 3 Front Mount Intercooler Kit, please visit https://www.corksport.com/corksport-2010-mazdaspeed-3-fmic-kit-for-short-ram-intake.html
