Mazda 3 Turbo & Non-Turbo Oil Catch Can Kit - 2019+ Mazda 3 & CX30

Old price: $239.99 Ā
Price: $220.79
You save: $19.20Ā (8%)
Price in points: What are Points?221 points
Save $19.20

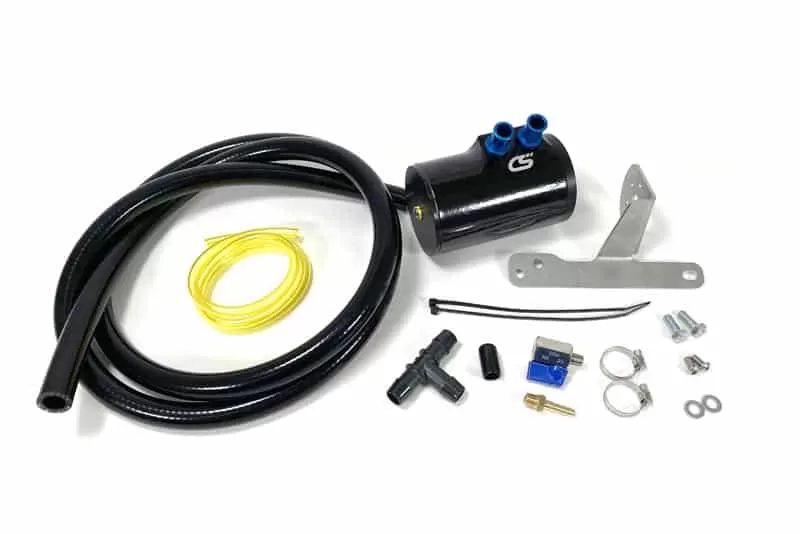

Mazda Oil Catch Can Kit for Mazda 3 and CX-30
AXO-6-889-11
Add to wish list

The Mazda 3 Turbo Oil Catch Can kit helps remove water and fuel vapor from the engine crankcase keeping these contaminants out of the engine oil. While the SkyActiv engines have a factory air/oil separator before the PCV, it does a poor job at preventing contaminants from entering your intake manifold, gumming up your intake valves, and causing poor combustion. If you want to keep the Mazda 3 SkyActiv engine in your new Mazda healthy, a Catch Can system is required to keep contaminants from entering your engine.

Designed for both Mazda OEM and CorkSport Upgraded Turbo Inlet Pipe systems.


Read The BlogOil Catch Can Tech Breakdown for SkyActiv-G Turbo 2.5L


The CorkSport Advantage

mazda 3 turbo oil catch can explanation

Engine Health Focused:

The CorkSport Oil Catch Can receives input from the PCV valve and the valve cover breather/intake manifold. These two sources typically send oil, fuel, and water vapors from inside your engine’s crankcase back into the combustion chamber, causing less than optimal combustion and over time dirty intake valves. The CS Oil Catch Can capture these vapors and condense them in the catch can before the air is ingested by the engine.

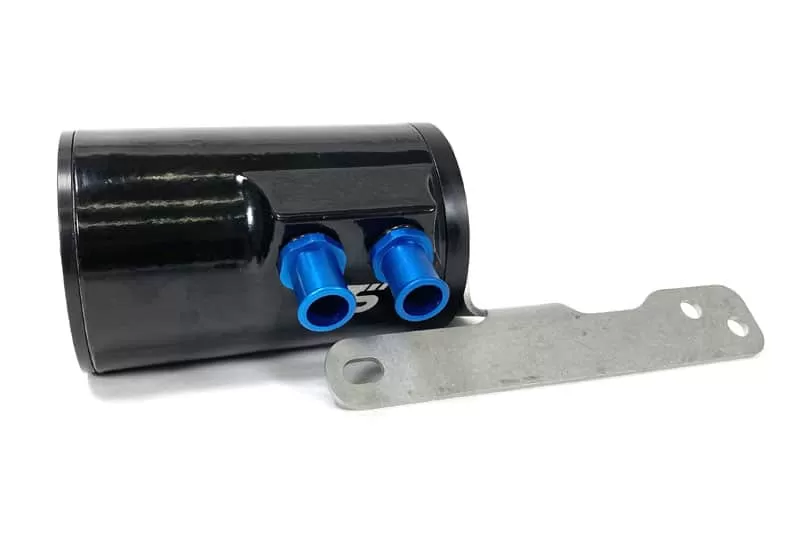

CorkSport Mazda 3 turbo OCC

Performance Design:

The CS OCC is a dual chamber design that uses a built-in baffle to separate the inlet and outlet ports. The inlet is tangent to the inside edge of the OCC, which promotes the spinning/swirling of the incoming vapors and contaminants and causes them to condense on the walls of the OCC and settle to the bottom for drainage. The clean air then travels through the center of the baffle and out of the catch can.




Mazda turbo occ kit installed

See the Difference:

Oil catch cans are especially important on turbocharged and/or direct injected vehicles to ensure long-term engine health, even more so if your vehicle is modified. While there is a factory air/oil separator, we have found that it does not perform at a high level. Check out all the contaminants our OCC caught on our Mazda 6 2.5T during the first 3000 miles after installation. Typically, all of this would have entered your engine which over time adversely affects engine health.




Mazda turbo oil catch can kit installed

Optimized Fitment:

The CorkSport OCC kit was designed specifically to fit the vehicles equipped with the SkyActiv 2.5L (both Turbo and Non-turbo engines). Not only was the stainless bracket designed specifically for these Mazda chassis, but it is also in a location chosen to be easy to access and empty during an oil change. Plus, the location in front of the driver’s side wheel ensures short routing for all OCC lines. This means an easier install and less distance for contaminants to travel before being trapped in the OCC.




CorkSport 2.5T mazda 3 oil catch can

Materials and Manufacturing:

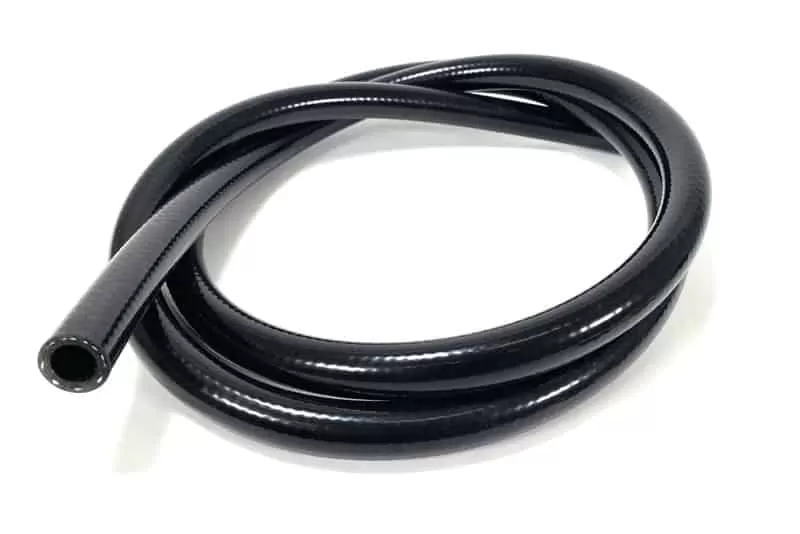

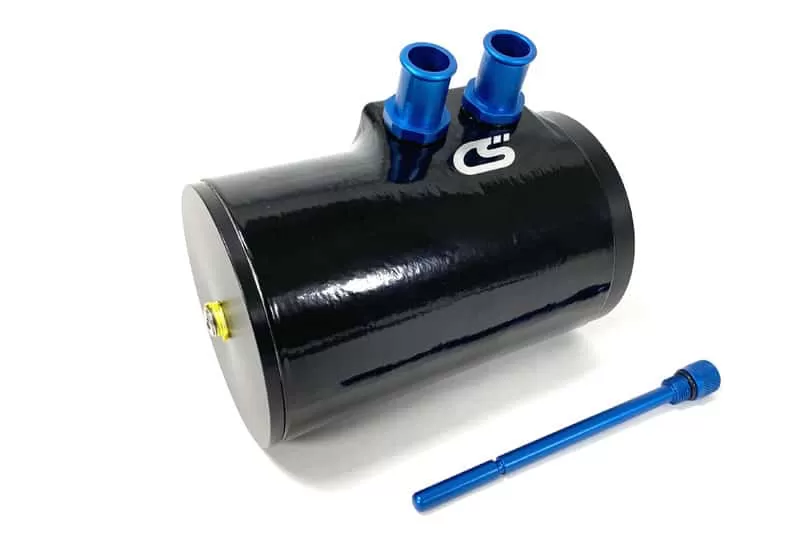

The CS oil catch can dipstick, ports, and end caps are precision machined out of 6061-T6 billet aluminum, while the body is constructed of cast aluminum. Each part is then coated black for corrosion resistance and a classy look. The supplied mounting bracket is laser cut and precision formed 304 stainless steel; again for superior corrosion resistance. Finally, the supplied OCC hoses are made from reinforced silicone for great resistance to heat, oil, fuel, and the elements so your catch can set up lasts as long as your Mazda!




Product Advisory Note
  • If you live in an area that gets below freezing, you must empty the catch can before temperatures drop to maintain proper functionality
  • Removal of the OEM valve cover breather hose and PCV hose on Turbocharged models is quite difficult. Read through the instructions below if you are concerned
  • Replacing the OEM PCV system with an aftermarket Oil Catch Can System may allow smells of gasoline and oil to ventilate into the engine bay and thus the cabin depending on HVAC settings; this is normal of an Oil Catch Can System especially during idling situations and after shutting off the engine. If excessive smell is noticed, inspect hose connections and drain the catch can.
  • Recommended to inspect & verify the PCV is working correctly when installing the OCC Kit. Replace if needed.
  • 2.0L fitment unconfirmed
  • This kit does NOT work on a CX50

Additional Features

  • Vehicle Fitment: 2019+ Mazda3/CX30 Non-Turbo 2.5L, 2021+ Mazda3/CX30 Turbo 2.5L
  • Designed in the USA!
  • CorkSport Service and Support: Receive a 2-year warranty, full-color installation instructions, all of the needed installation hardware, and knowledgeable telephone installation support.


How To Install the the Oil Catch Can

It will take you Approx. 3 hour to install.

3 hour Install Time

3 hour Install Time

Difficulty: 3/5

3/5 Difficulty

2-Year Warranty

2-Year Warranty

No CEL

No CEL

installation instruction for the oil catch can

I just installed the Corksport Oil catch can just two days ago. I did this as a preliminary safety feature before installing my VT supercharger.

The install was very straightforward and easy. The CS instructions are really good. The only thigs I noticed is that the initial angle recommended for the attachment of the catch can to the bracket didn't work for me and I had to change then angle, which is super easy as there are various holes on the catch can. I may have read the instructions wrong also at the beginning. Other things were, the shifter cable they they you to route around had a different orientation on mine, but this made pretty much no difference. I also didn't remove the two 12mm that attaches the electrical harness for the starters' bracket to the transmission. I didn't need to. I also did not install the brass fitting to the bottom of the drain. I plan to to drain it straight down rather than attach a hose to it.

Really no problems at all, with the install.

Initially I definitely experienced a decrease in low end power, I checked the hoses, they are all fit snugly so I don't think there is a vacuum leak. I am attributing the initial power decrease to the Mazda Sauce Tune reset after the battery was disconnected, so it took a while for it to adapt back to the higher octane E20. That's what I am attributing it to.

All in all it was a satisfying install and should be slightly better for the cleanliness of the twin-screw supercharger that I am going to add after getting it ported.
Write a review

I would like to know is it easy to drain the OCC after install, how many parts i have to remove to do so?

Asked by Calvin | 08/15/2024, 06:28 PM | 1 answer(s)

I have a strut tower bar. Will the hose fit still?

Asked by Wesley Heimer | 10/01/2023, 11:05 PM | 1 answer(s)

Does this fit a 2.0L mazda3 2022?

Asked by Calvin Man | 09/20/2023, 05:27 PM | 1 answer(s)
Mazda performance parts financing is available with CorkSport

Looking to finance your parts purchase and want to get 6 months NO interest on any purchase over $199? Click on the image above for more details.

Fits:

2019+ Mazda 3 Turbo + Non-turbo
  • 2019 Mazda 3 2.5L Turbo + Non-turbo
  • 2020 Mazda 3 2.5L Turbo + Non-turbo
  • 2021 Mazda 3 2.5L Turbo + Non-turbo
  • 2022 Mazda 3 2.5L Turbo + Non-turbo
  • 2023 Mazda 3 2.5L Turbo + Non-turbo
2021+ Mazda CX-30 Turbo + Non-turbo
  • 2021 Mazda CX-30 2.5L Turbo + Non-turbo
  • 2022 Mazda CX-30 2.5L Turbo + Non-turbo
  • 2023 Mazda CX-30 2.5L Turbo + Non-turbo
