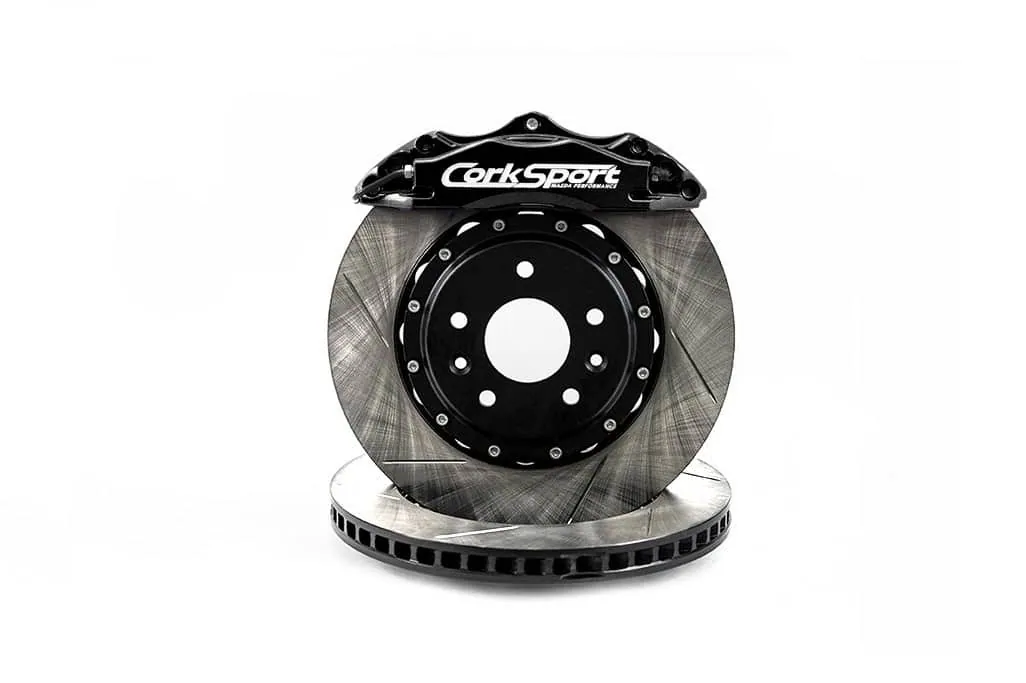

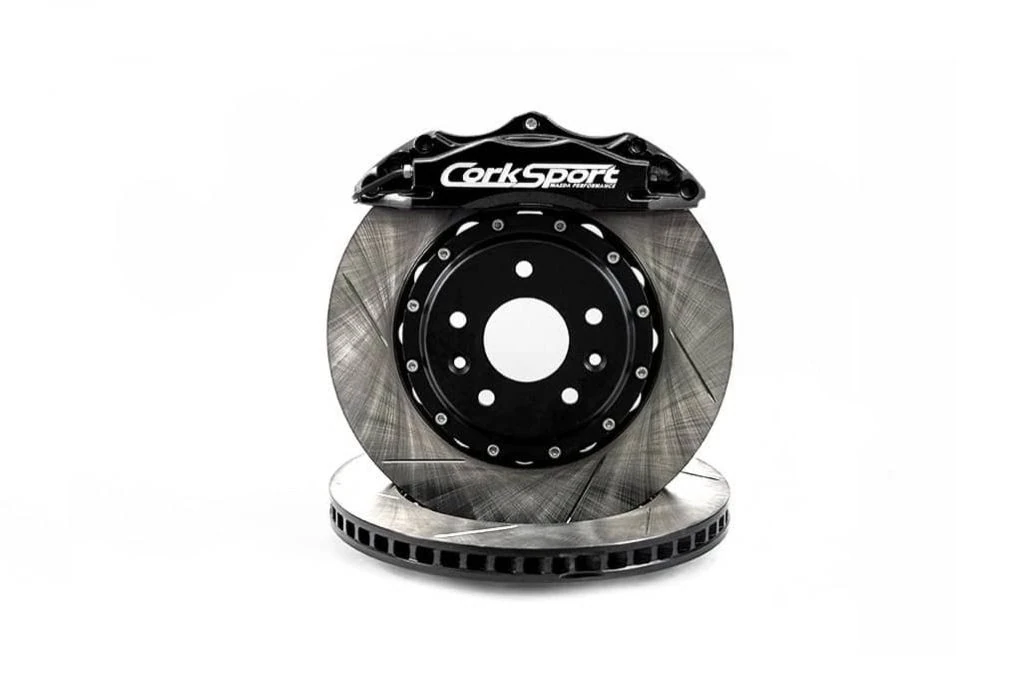

Big Brake Kit for 2023+ Mazda CX-50 Turbo & Non-Turbo


Price: $1,599.99
Price in points:  What are Points? 1600 points
AXO-3-413
+

Welcome to the CorkSport 13” Big Brake Kit for 2023+ Mazda CX-50! We improved just about every aspect of the braking system to provide your ride with vastly improved braking performance. A rotor size upgrade is coupled with four-piston forged aluminum calipers and stainless steel brake lines to completely change how it feels when you push that brake pedal. Improve your confidence while driving so you can attack corners or crawl through trails, from a desert trail to the highest mountain pass and every road along the way. Read on for full details!

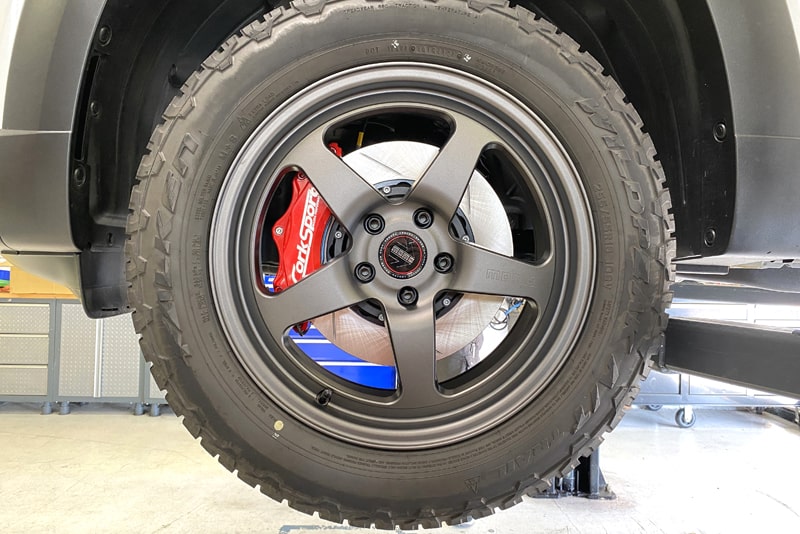

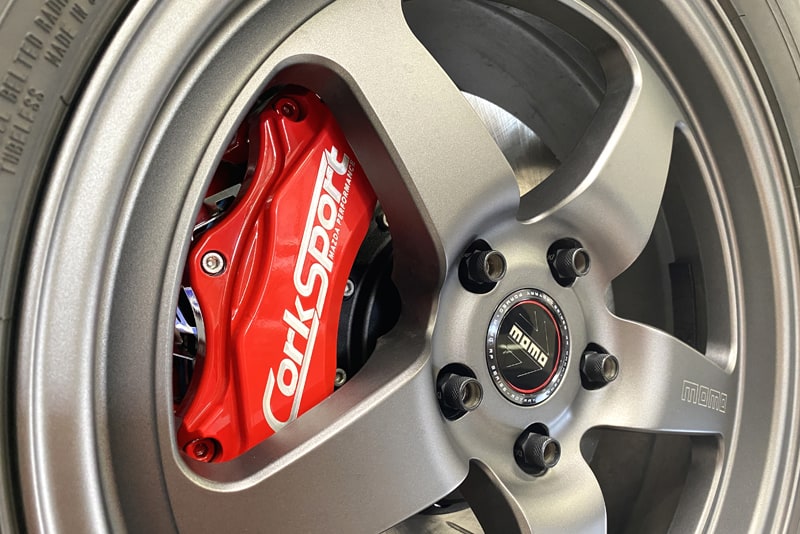

Wheels & Tires Shown: 255/55R18 Falken Wildpeak AT3W with 18x8.5+35 Momo Etna Wheels

#ZoomZoom!


The CorkSport Advantage

Lightweight brakes for cx50

Performance Advantage:

Brakes are a complicated system that has to carefully balance heat, weight, and force to deliver optimum braking performance. Thankfully, the CorkSport BBK has been carefully designed to improve each of these aspects through high-performance components. When combined together, each component in the CS big brake kit compliments one another to really outshine the OEM brakes, giving you the confidence to know that you can stop, no matter the situation.



2023 cx-50 big brake kit comparison

Brake Rotor Size Increase:

The CS BBK uses a 13” (330mm) diameter brake rotor that is 1.10” (28mm) thick. This is a respectable increase from the OEM turbo model rotor size, which measures 12.79” (325mm) in diameter and 0.98” (25mm) thick on our Mazda CX50 Turbo. Our naturally aspirated model is even smaller at 11” (280mm) diameter. This is increase in diameter offers more braking torque at the same amount of braking force (like how a longer wrench makes it easier to loosen a stuck bolt). The larger diameter and thicker rotor mean there is more mass for the system to reject heat into; keeping your brakes from overheating for longer.

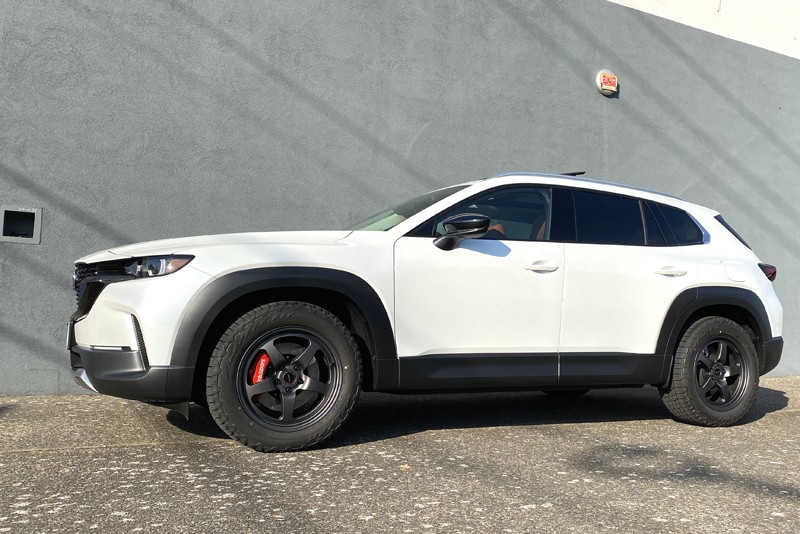

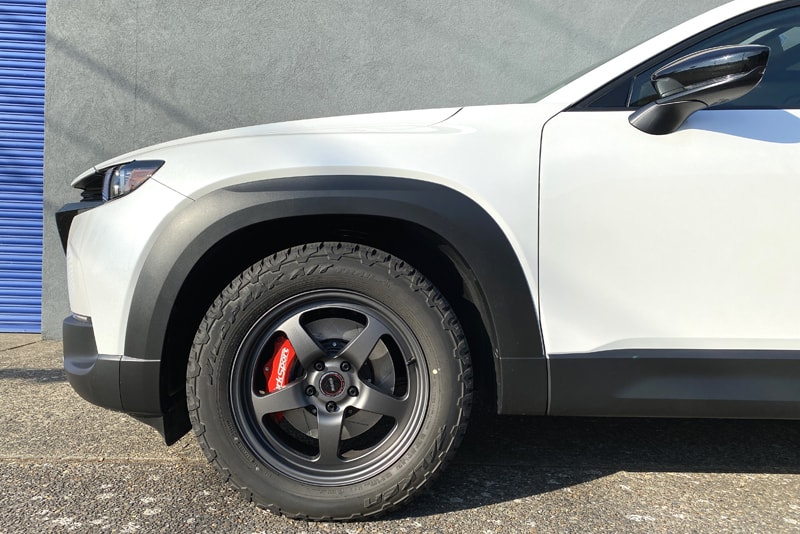

Off Road Brake Kit Mazda CX50

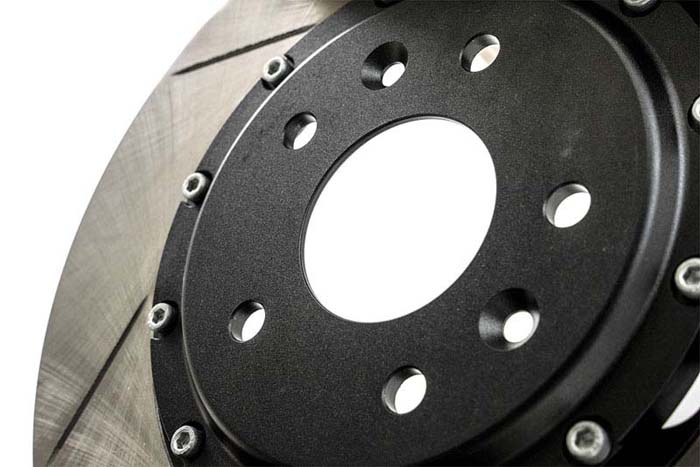

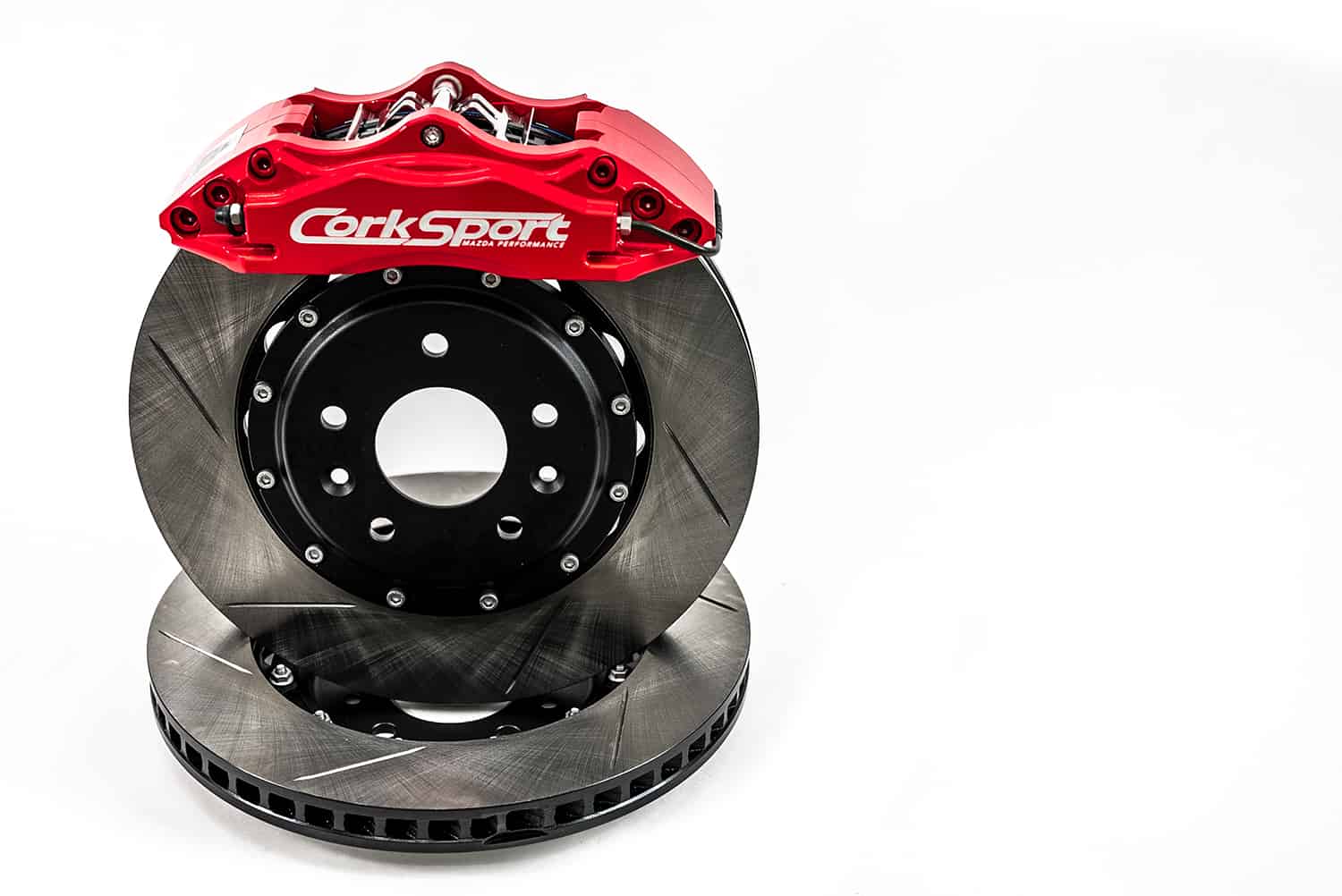

Performance Brake Rotor Design:

The CS brake rotors aren’t all just size, they have been designed specifically to offer the best function for your car. They are a two-piece design with an aluminum center section. This keeps weight down while improving heat transfer efficiency. The rotor rings themselves are also optimized for heat dissipation, with specially curved “vanes” in between the inner and outer faces. These vanes help draw air through the rotor to cool it while the rotor is spinning. Lastly, each rotor is slotted for more consistent brake performance. The slots help sweep away brake dust, gases, and any other debris that may adversely affect braking



CX50 Big Brake Upgrade Kit

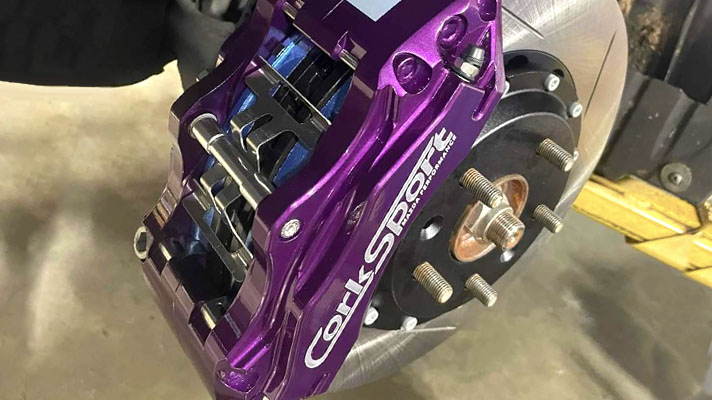

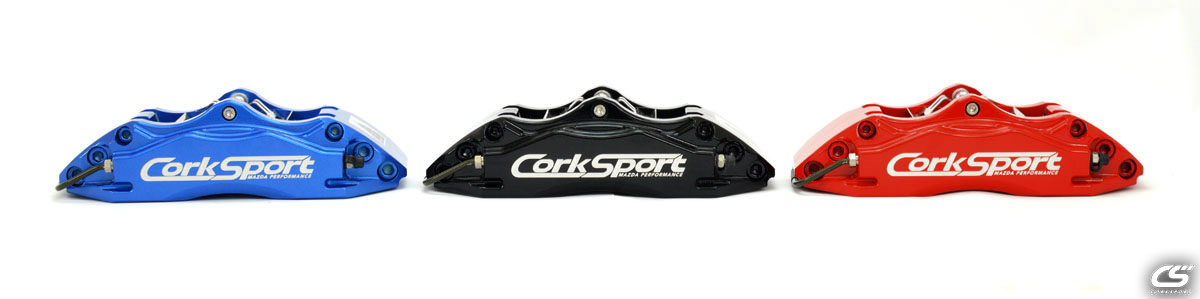

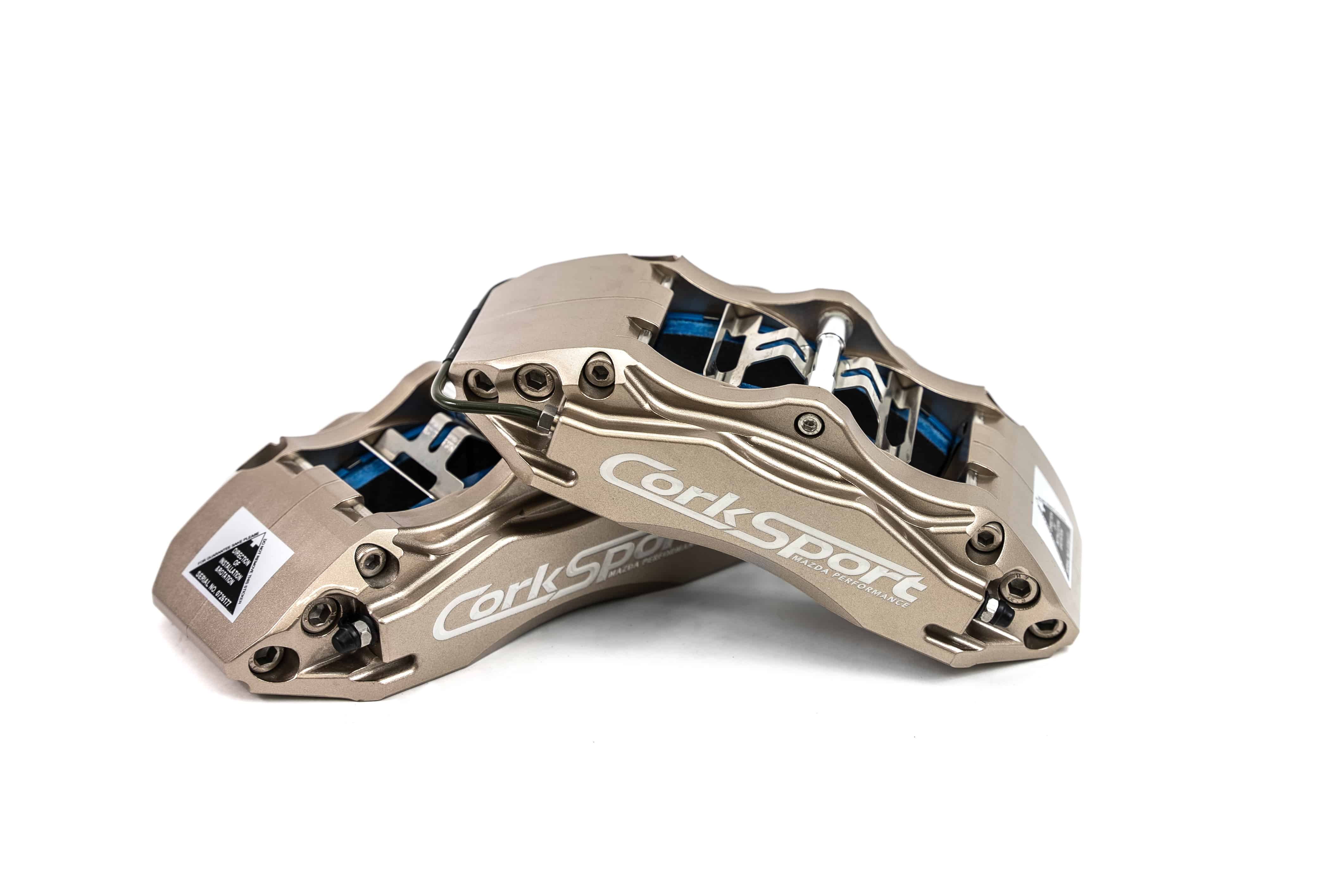

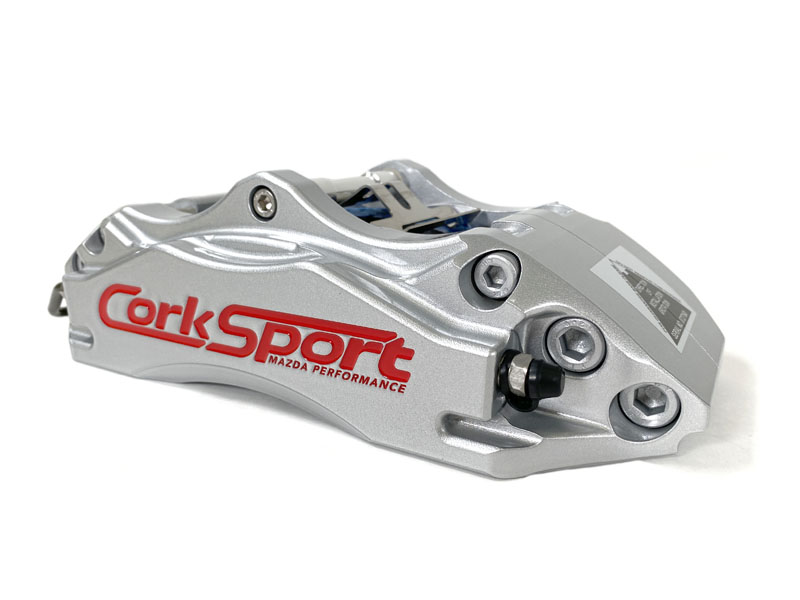

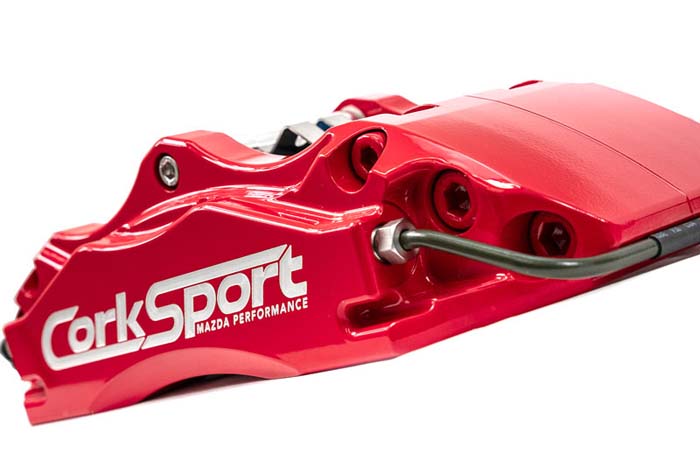

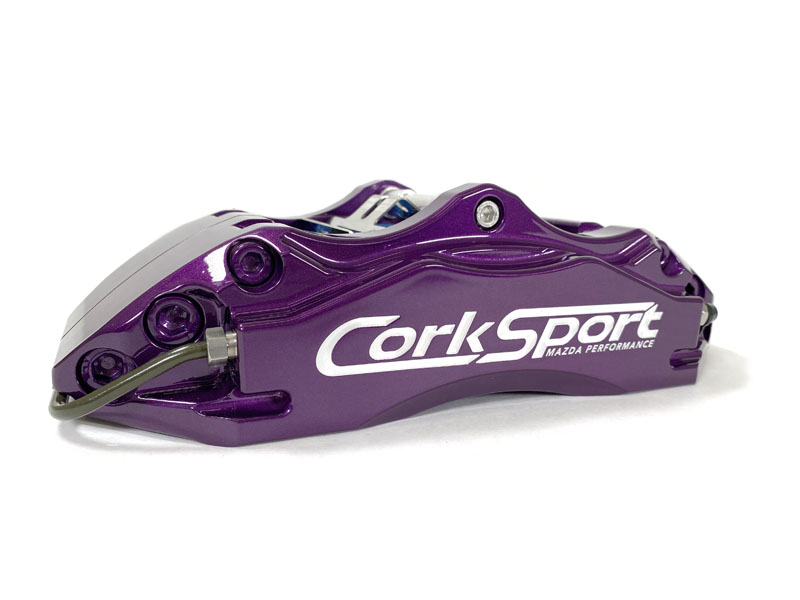

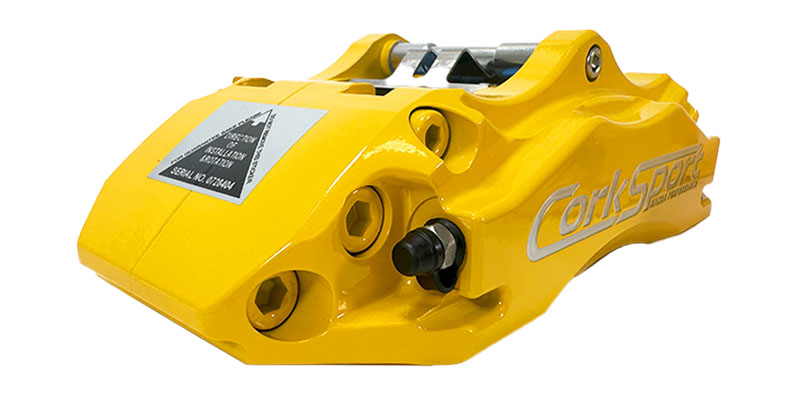

Four-Piston Calipers:

The calipers in the CorkSport 4th GEN Big Brake Kit are 4-piston units made from forged aluminum which offers a more rigid and direct feedback to you, the driver. 4 pistons offer a large advantage over the OEM single-piston calipers. Having multiple pistons on both sides of the brake rotor allows for maximized brake pad surface area (larger pads) and encourages even pad wear. We even stagger the piston sizes slightly, to further promote even pad wear. Each caliper has a powder-coated color finished to ensure a long good looking life under harsh brake conditions or dust and heat. As a final bonus, each caliper piston is made from stainless steel. Stainless has a lower coefficient of heat transfer than aluminum or regular steel. This keeps your brake fluid cooler for longer!

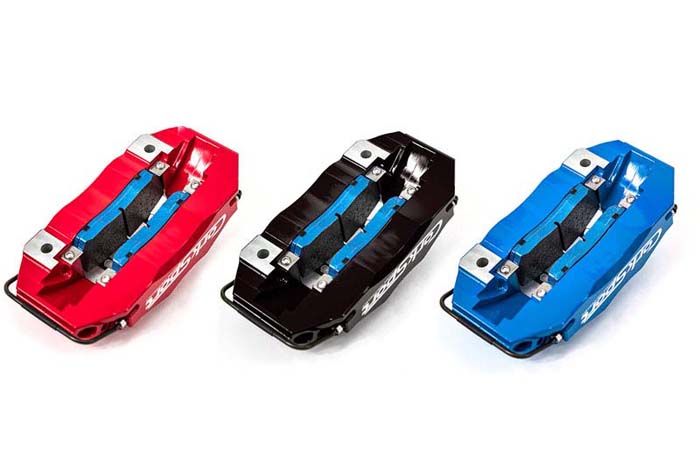

Mazda CX-50 brake-pads

Upgraded Brake Pads:

But wait there’s more! Each CorkSport BBK comes equipped with upgraded brake pads pre-installed in your 4-piston calipers. They bridge the gap between a street pad and a full trackpad. You have good performance when the brakes are cold, which gets even better with a little heat in the brakes, yet they are very quiet and not too dusty. Don’t worry, when it comes time to replace pads, the CS BBK uses a very common size with plenty of options from all the big-name brands.

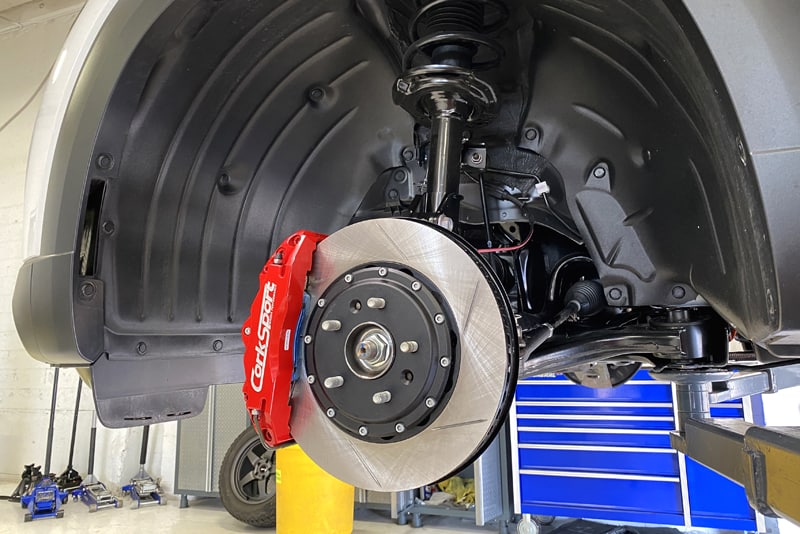

Mazda CX-50 turbo brake upgrade

Hardware, Brackets, and Lines:

The CorkSport BBK is truly an all-in-one kit. All hardware needed for installation is included, all of which is corrosion-resistant grade 12.9 bolts. High-strength billet caliper brackets are also included, to keep everything positioned securely. Braided stainless steel brake lines ensure a stiff and consistent pedal feel. As a final bonus, even with all the added size and complexity, the CorkSport BBK weighs in at about 6 pounds LESS than the weight of the OEM CX-50 turbo brakes...PER CORNER.



  • Minor trimming of the OEM brake rotor dust shield is required.
  • OEM wheels require the use of a 10mm or thicker wheel spacer for operation. We strongly recommend extended wheel studs for a spacer this large.
  • Wheel diameters of 17 inches or larger can be used with the CS BBK. Verify BBK clearance with the cutout template link below.
  • Some aftermarket wheels may require the use of a wheel spacer for operation of this BBK. Use this template (Click Here) to check if your wheels will fit.

Additional Features

  • Vehicle Fitment: 2023+ Mazda CX-50.
  • Designed & Developed in America: Designed, tested, and validated in Vancouver, Washington, in the Pacific Northwest.
  • We sell replacement brake rotor rings when the time comes to replace your rotors. Give us a call to order some!
  • CorkSport Service & Support: Receive a 2 year warranty, full color installation instructions, all of the needed installation hardware, and knowledgeable telephone installation support at(360) 260-2675.

Brake Pad Cross Reference

The following brake pads series may operate with the CorkSport 13” BBK. Other brake pad manufacturers may have pads designed for this configuration that is not listed here.

  • Hawk HB110
  • G-Loc GPX6
  • Cobalt AP12
  • Brembo B52
  • AP Racing AP5200 & CP3215
  • Cobalt AP12

  • How To Install 2023+ Mazda CX-50 Performance Big Brake Kit

    It will take you 3 hours to install the CorkSport Mazda CX50 BBK.

    3 Hour Install Time

    3 Hour Install Time

    Difficulty: 3/5

    3/5 Difficulty

    2-Year Warranty

    2-Year Warranty

    No CEL

    No CEL

    2019 to 2021 how to installation instructions for the Big Brake Kit

Mazda performance parts financing is available with CorkSport

Looking to finance your parts purchase and want to get 6 months NO interest on any purchase over $199? Click on the image above for more details.

Fits:
2022-up CX-50
2022-up CX-50 Turbo
