2023+ Mazda CX50 Turbo 2.5L - SRI Heat Shield

The CorkSport Advantage

Design & Fitment :

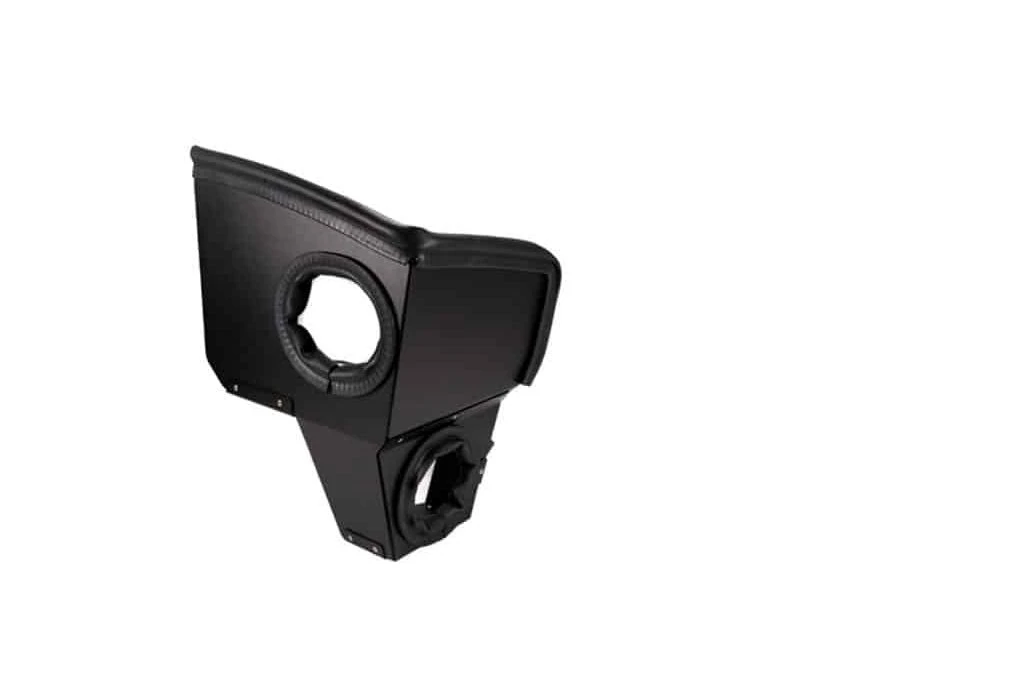

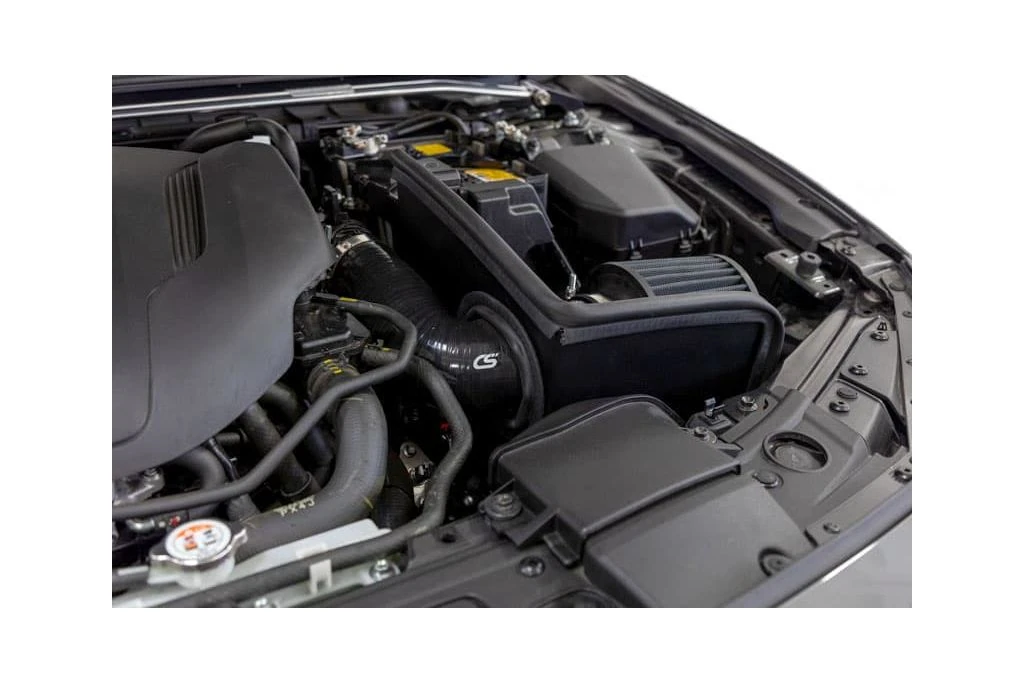

The CorkSport Heat Shield for the SkyActiv 2.5 Turbo in the CX-50 is designed to reduce the intake air temperature entering the turbo and thus engine. There are two key advantages to the CorkSport Heat Shield Design: Firstly, the steel heat shield creates a barrier between the intake and the hot engine components such as the radiator, engine block and transmission. Secondly, the heat shield is open to the fender well where there is cooler air and uses the OEM snorkel ducting to pull in cool air from the front grill. Installing the CS Heat Shield is quick and easy from the utilization of the OEM air box mounting points so that no modifications or other brackets are required.

Testing:

Testing of the CorkSport Heat Shield was critical to make sure the heat shield performed as designed. Testing included both spirited daily driving and remaining stationary to gain a good understanding of how intake air temps are affected with and without the heat shield installed. From these test we found that when the CS Heat Shield is installed, the average reduction in inlet air temperature was almost 10°F cooler over the duration of the test. Check out the graph to the right to see exactly how the CS Heat Shield performed against the CS SRI without the heat shield under similar conditions. The test was more demanding than a typical drive to show how both setups would perform under harsh conditions that you might see sitting in traffic on a hot day.

Off-Road Ready:

If you enjoy the CX-50 for its abilities to go off the beaten path and explore the world then the CS Turbo Short Ram Intake and Heat Shield are the performance parts for you. While the power and turbo noises are...what about getting water into the intake? Well unlike other cold air intakes on the market; the CS design keeps the filter high in the engine bay away from water and debris. We didn’t see the logic in putting the filter down in the fender well near debris, obstacles and water that could much more easily be ingested by the engine.

Materials & Manufacturing:

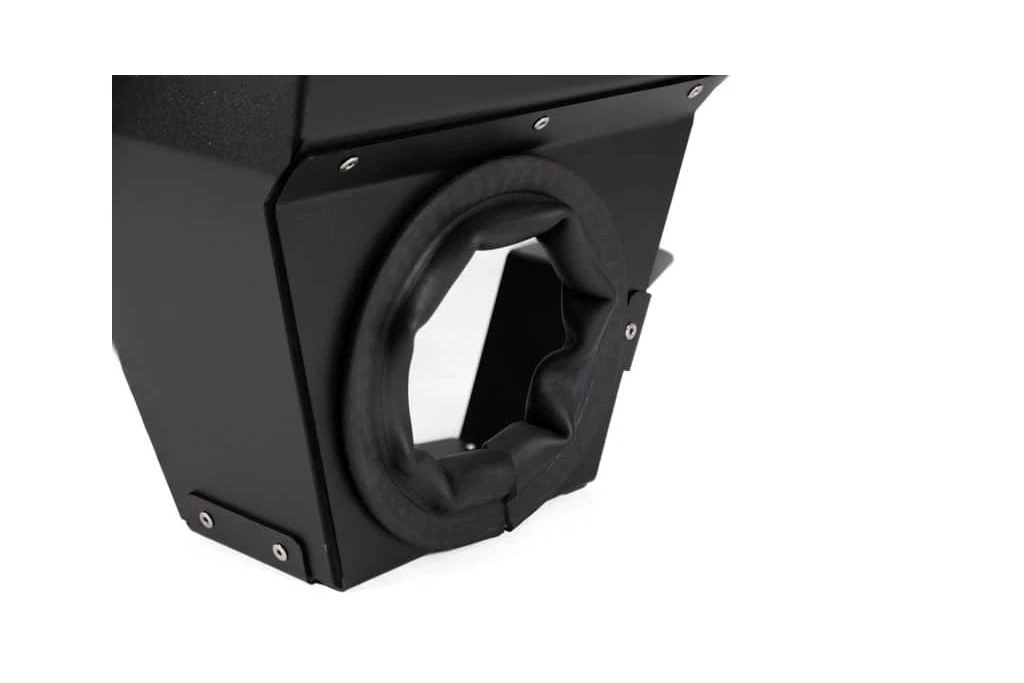

The CorkSport SRI Heat Shield is manufactured from carbon steel that is laser cut and precision formed. The use of steel over other materials ensures good strength and provides a low amount of heat transfer through the material. The CS Heat Shield is separated into multiple pieces and is riveted together using stainless steel rivets to provide resistance to corrosion so they remain strong and continue to look good for a long time to come. All the heat shield sections are powder coated in wrinkle black to give and durable and great-looking finish when installed in your engine bay.

Seamless Integration:

CorkSport modular and seamless intake system lets you decide how to mod your CX50! Combine the Turbo Inlet Pipe, Short Ram Intake & Heat Shield for the ultimate intake system.

Additional Features

• Vehicle Fitment: 2023+ Mazda CX-50 2.5T
• Designed & Developed in America: Designed, tested, and validated in Vancouver, Washington, in the Pacific Northwest. .
• CorkSport Service & Support: Receive a 2-year warranty, full-color installation instructions, all of the needed installation hardware, and knowledgeable telephone installation support at (360) 260-2675.
