Now available for the 2014-2018 Mazda 3 and 2014+ Mazda 6 are Adjustable Swaybar End Links. The extra adjustment provided by the end links allows for the fine-tuning of your sway bar to help remove preload or binding that could be caused by a change in ride height. The construction of the end links features a 5/8in aluminum turnbuckle which is anodized black. They also include ball joints that are sealed to prevent water or other debris from entering the joint. More details on the CS End Links can be found in the sections below.
Match with the Rear Adjustable End Links
Read The BlogThe Best Adjustable End Links for Your Mazda
The CS end links are designed with a total adjustment range of ~18mm or 0.70in to provide a range that can be fine-tuned to your specs. They share a similar design to the end links currently available for the Mazdaspeed 3, but the length has been adjusted to fit the 2014-2018 Mazda 3 and 2014+ Mazda 6 front. This ensures that the end links will perform and be durable for years to come.

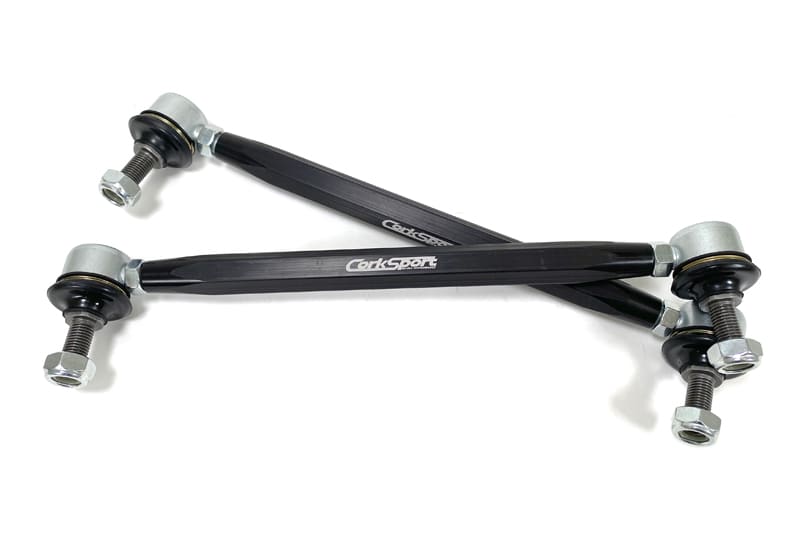

Two main components make up the adjustable end links. These components include the center bar or turnbuckle and the ball joints that are on each end. The ball joints that are used feature a rubber boot that seals them from unwanted material entering, such as water or dust. This helps prolong the life of the joint so that it can operate as intended for years to come. The center bar is constructed of 2011-T3 5/8in hex aluminum and is CNC machined to the length required for this application. After machining, the turnbuckle then gets anodized in black to provide a surface that adds good corrosion protection.
All hardware needed for the installation of the CS Adjustable End Links is included with DIY instructions can be found below so you can get back out on the road as fast as possible.
It will take you Approx. 1 hour to install.
1 hour Install Time
