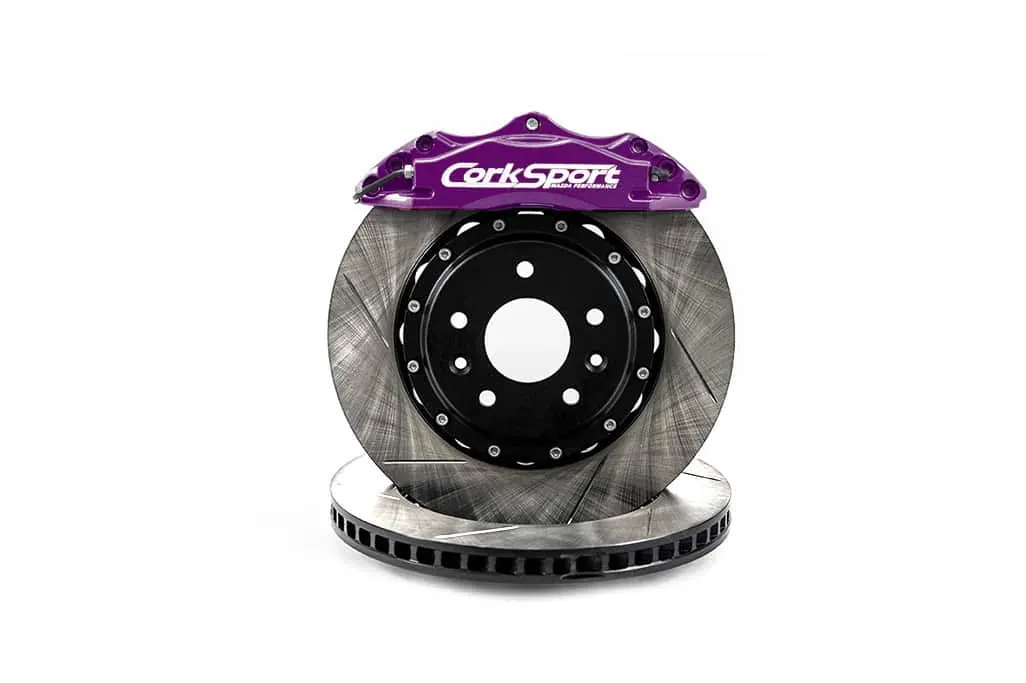

2014-2018 Mazda 3 and 2014-2021 Mazda 6 Big Brake Kit, 330mm. 2013-up Cx5

Old price: $1,599.99
Price: $1,479.99
You save: $120.00 (8%)
Price in points: What are Points?1480 points
Save $120.00
The Mazda 3 specific fit CorkSport BBK offers a substantial increase in braking performance.
AXM-3-413-15
Add to wish list

Welcome to the CorkSport 13” Big Brake Kit for the 2014-2018 Mazda 3, 2014+ Mazda 6 and 2013+ CX-5. We’ve stepped up the performance with this new 13” BBK for the 3rd GEN platform. Comparing to our current 325mm caliper and rotor kit, this is a great performance increase due to the larger diameter and thicker rotor and much larger calipers which can apply a higher clamping force.

#ZoomZoom!


The CorkSport Advantage

3rd-gen-Mazda-3-brake-upgrade-kit

Performance Advantage:

The brake system has to deal with many factors to achieve a high level braking performance, whether it is clamping force, weight or heat. Each of these factors has been taken into considered with the CorkSport BBK to achieve elevated braking performance in your Mazda. This is accomplished through a combination of improvements including increased rotor diameter, a larger piston surface area and braided stainless steel brake lines. Read more below about the details into each of these enhancements over the OEM brake system.



Gen-3-Mazda-3-BBK

Brake Rotors Design:

One of the most important upgrades included in the CS BBK is the rotor size and design. Starting with the OEM rotor size of 11.02”(280mm) or 11.61”(295mm) for the S trim level, the CS rotors are 13”(330mm) which equates to an increase in size between 1.39”-1.98”(35-50mm). The CS rotors are not only bigger in diameter they are also thicker, going from 0.98”(25mm) to 1.10”(28mm). Both of these changes add material to the rotor so that is can better distribute and dissipate heat so the brakes can go longer without overheating. The increase in diameter also provides another advantage by being able to apply more torque with the same amount of force being applied to the brake. The CorkSport rotors also feature a two-piece design with an aluminum inner hat to reduce weight and help cooling and an outer ring that can be replaced separately to save money when needing a replacement. The outer ring also features vanes on the inside that aid in cooling by pulling in cool air when the rotor is spinning. The last feature of the CS rotors is that they are slotted to help remove brake dust and gases that could negatively affect braking.



3rd-gen-Mazda-6-BBK

Four-Piston Calipers:

The calipers in the CorkSport 3rd GEN Big Brake Kit are 4-piston units machined from forged aluminum. The 4 piston design offers a significant advantage over the OEM calipers which only have a single piston. While each piston by itself is smaller than the single OEM piston, the overall piston area is greater. This leads to an increase in braking force from the same amount of braking pressure. Plus, having pistons on both sides of the brake rotor allow for better contact with the back of the brake pad to help improve pad wear. The brake calipers come with a powder coated color finished to ensure a long good looking life under the harsh brake conditions or dust and heat. Each caliper piston is also made from stainless steel. Stainless has a lower coefficient of heat transfer than aluminum or regular steel to help keep the brake fluid cooler for longer. The pistons are also staggered in size within the caliper, to further promote even pad wear.



2014-2018-Mazda-3-performance-brake-pads

Upgraded Brake Pads:

Brake pads are critical and each CorkSport BBK comes equipped with upgraded brake pads already installed in your 4-piston calipers. They fit in between a street pad and a full track pad in terms of aggressiveness so you’ll have good performance when the brakes are cold as well as when there is a heat in them. They are also quiet and not too dusty. We do still recommend an actual track pad for extensive track time, but they perform well as an in between set. If you want to change out the pads the CS BBK uses a very common size with plenty of options from all the big name brands which can be seen a little further down.



brake-upgrade-brake-kit-for-mazda-3

Brake Lines, Brackets, and Hardware:

The CorkSport BBK is truly an all-in-one kit. We have included braided stainless steel lines to improve the brake pedal feel and make sure it stays firm and consistent. High strength billet caliper brackets are used to keep everything positioned correctly and securely. All hardware needed for the install is included and is corrosion resistant grade 12.9 bolts. As a final bonus, even with all the added size of the calipers and rotors, the CorkSport BBK weighs in at about 0.25lbs LESS


  • OEM wheels require the use of a 12mm or thicker wheel spacer for operation. We strongly recommend extended wheel studs for a spacer this large.
  • Some aftermarket wheels may require the use of a wheel spacer for operation of this BBK. Use this template (Click Here) to check if your wheels will fit.
  • Rear Only BBK has a unique wheel fitment template, refer to that template for checking rear wheels.

Additional Features

  • Vehicle Fitment: 2014-2018 Mazda 3, 2014-2021 Mazda 6, and 2013+ Mazda CX-5.
  • Designed & Developed in America: Designed, tested, and validated in Vancouver, Washington, in the Pacific Northwest.
  • We sell replacement brake rotor rings when the time comes to replace your rotors. Give us a call to order some!
  • CorkSport Service & Support: Receive a 2 year warranty, full color installation instructions, all of the needed installation hardware, and knowledgeable telephone installation support at(360) 260-2675.

Brake Pad Cross Reference

The following brake pads series may operate with the CorkSport 13” BBK. Other brake pad manufacturers may have pads design for this configuration that is not listed here.


How To Install 2014-2018 Mazda 3, 2014-2021 Mazda 6, and CX5 Performance Big Brake Kit

It will take you 3 hours to install the CorkSport 3rd Gen Mazda 3/6 and Cx-5 BBK.

3 Hour Install Time

3 Hour Install Time

Difficulty: 3/5

2/5 Difficulty

2-Year Warranty

2-Year Warranty

No CEL

No CEL

2019 to 2021 how to installation instructions for the Big Brake Kit

I had the previous smaller generation of CS BBK on my car, and man jumping to this larger newer iteration was a night and day difference. These rotors are absolutely massive, and the calipers dwarf even the smaller BBK calipers… so seeing them parked up next to a stock car is insane. The install is a breeze to be honest with the included brackets and hardware. The pedal feel is close to OEM but with a lot more bite, and of course you will never have to worry about brake fade.

Whether you are a serious driver that does track days frequently, or a daily driver with some spirited driving on the side - I’d say this is easily one of the best mods you can do. Not only does it greatly enhance your driving experience, it looks great while doing it too.
The CorkSport 13-inch Big Brake Kit has been a game-changer for my 2018 Mazda 3. The titanium color not only looks fantastic but also adds a sporty touch to the car's appearance. After driving over 10,000 miles with this kit, I can confidently say that it has significantly improved my braking performance. The larger rotors and calipers provide excellent stopping power, especially during spirited driving or emergency stops.

Installation was straightforward, thanks to the detailed instructions and included hardware. The kit is a direct bolt-on upgrade, requiring no modifications to the vehicle, but be aware that OEM flare nuts are kinda soft, and may be destroyed during installation. Since installing the CorkSport Big Brake Kit, I've noticed a more responsive brake pedal and reduced brake fade, even during aggressive driving. Overall, I'm extremely satisfied with this product and would highly recommend it to any Mazda 3 or Mazda 6 owner looking to enhance their driving experience.
Installs don’t get any easier than this. Detailed instructions make this a breeze. Pedal feel is manageable, even in a daily driver.
This kit really is an amazing upgrade to the OEM brakes. Not only do they look amazing, but the increased stopping power greatly aids in the performance of your mazda.

Yeah driving fast is cool but that means nothing if you can't slow down for those tight corners or emergency braking situations. Even in traffic these have stopped me in situations the OE brakes may not have. This is a spectacular upgrade that is great for daily driven and track oriented mazdas alike. 10/10
The bigger badder brother of Big Brake kit Jr. Does all the same things as the first version but goes harder, longer and fills out your nice aftermarket wheels better. The touch up paint provided is nice if you have an oopsie or a shop is careless with your ride.
Passengers are always impressed with the enhanced stopping capabilities this kit has. The brake pad options that the kit supports gives you plenty of options for a variety of needs.
