2014-2018 Mazda 3 & 2013-2017 & 2018+ Mazda 6 Coilover Suspension

Price: $1,599.99
Price in points: What are Points?1600 points
Get great performance on the street and track with the Mazda 3 CorkSport Coilovers.
Add to wish list
This product can't be added to cart now. It will be available on 06/05/2024

Hover see ride height range

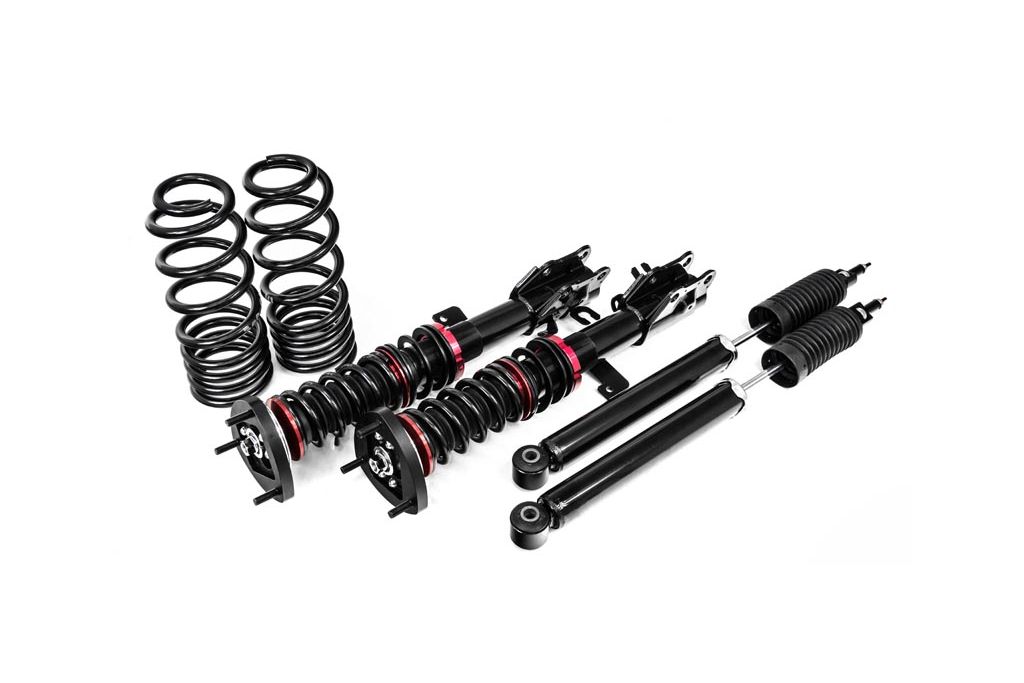

We took everything we learned from making the Mazdaspeed 3 coilovers and created the CorkSport Coilovers for 2014-2018 Mazda 3 and 2014-2017 Mazda 6! With 2.5 inches of ride height adjustability, optimized spring rates, 15-way damping adjustability, and front camber adjustability, the CS coilovers are ready for whatever you throw at them. Lots of design and testing has gone into making the CorkSport coilovers the best they can be for your GEN3. Check out the full details below! Wheel & Tire Specs on the CS Gen3 Sedan: Enkie GTC02 18x9.5+40 with Falken 255/40 Performance Summer Tires.#ZoomZoom!

The CorkSport Advantage


Optimized Spring Rates:

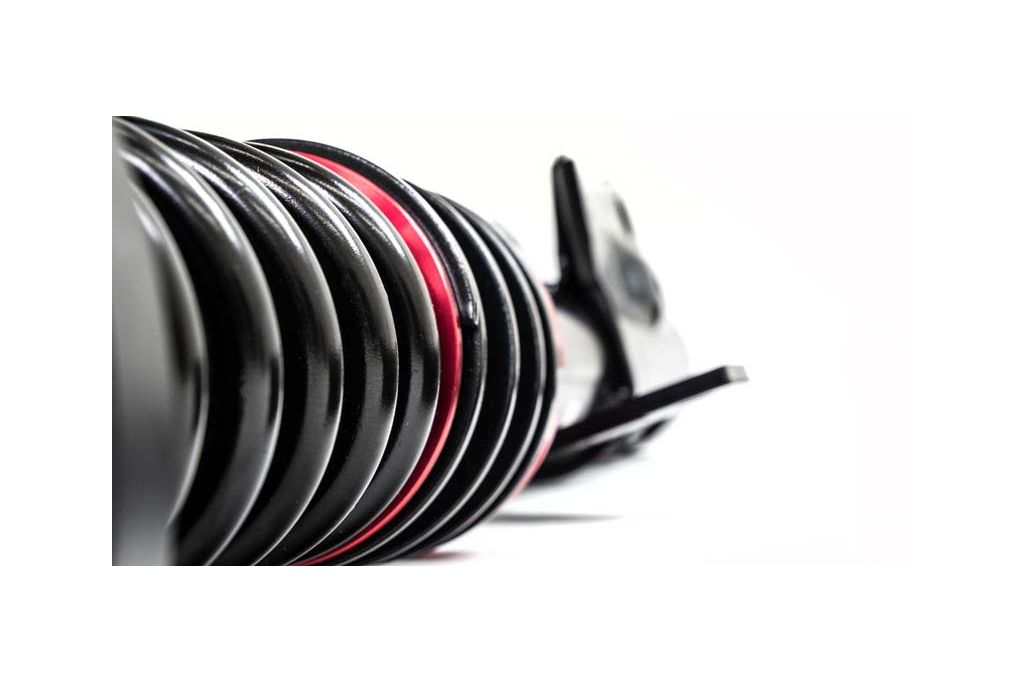

We carefully chose the 7K front 8K rear spring rates to be aggressive enough for the track but not too stiff on the street. This means you can set a great time at the track or autocross, while being comfortable to and from the event. By increasing the rear spring rate more than the front spring rate; the CS coilovers promote more neutral handling with less understeer. Finally, we used natural frequency analysis to ensure our spring rates and damping match well with one another and aren’t harsh on the street.

Mazda 3 BM Axela Coilovers

Racing Inspired:

The front coilover bodies of the CorkSport coilovers are not a typical coilover design. They use an inverted monotube design which is similar to a normal coilover but rotated 180° (inverted). This design offers superior strength and reliability over a regular monotube, so you can be confident your vehicle will react the same when cornering hard. This is further emphasized by the pillow ball top mount, which encourages rigidity and repeatable handling.

Super low stance Mazda 3 coilovers

Visual Boost:

Being a performance unit, the CS coilovers are meant to improve handling. It would be a shame though to ignore another huge benefit, the visual boost that comes with lowering a car. For handling’s sake, a lower car means a lower center of gravity, reduced body roll, and better driver confidence but it also looks fantastic. There is about 2” of ride height adjustability with the CorkSport Coilovers so you can really dial in your handling and look. Minimum ride height drop is approximately 0.5” lower than stock

Mazda 6 low down coilover suspension

Adjustability for Street and Track:

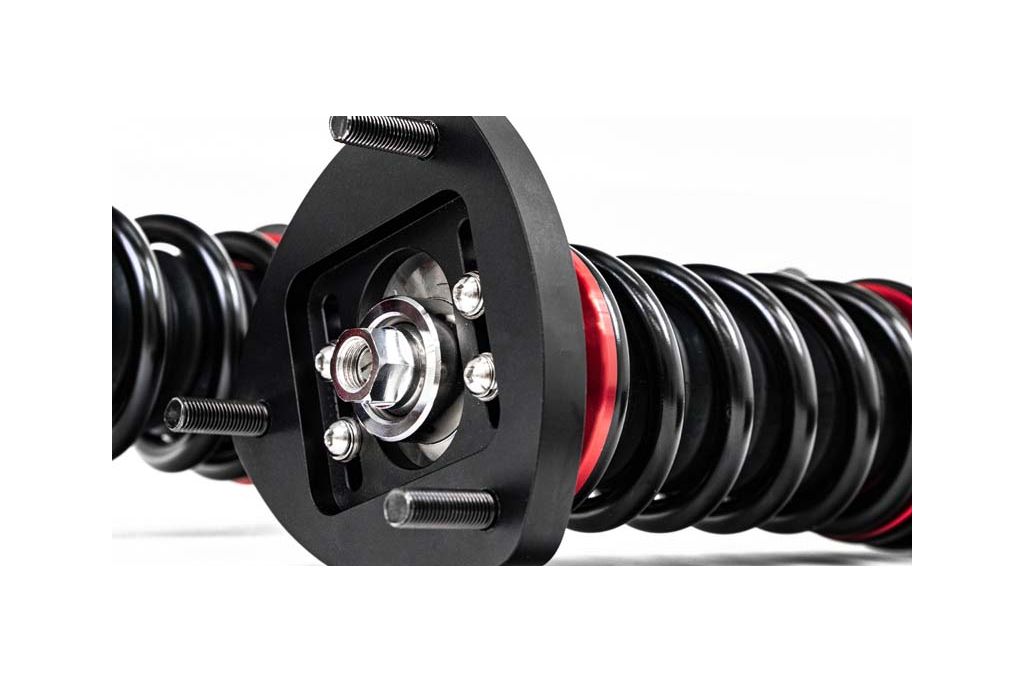

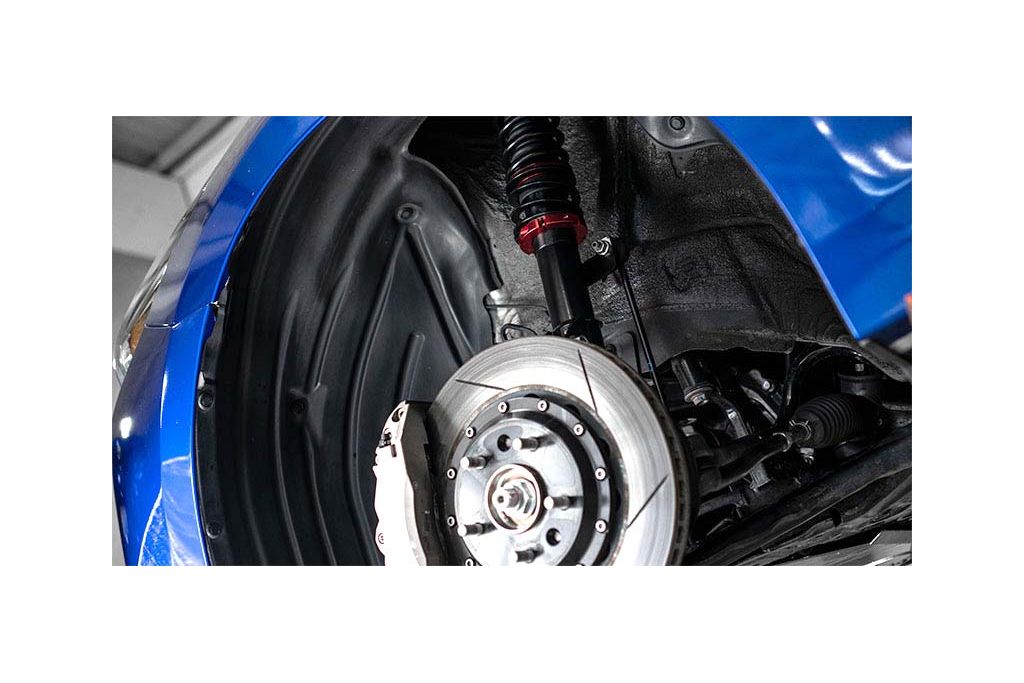

15-way adjustable damping is present on both the front and rear of the CS coilover kit. This allows you to fine tune how your car reacts to bumps, so you can stiffen things up when you get to the track and then add some comfort back for the drive home. Damping adjusters are easy to access and can be done without disassembly or tools, but a jack makes is even easier! There is also camber adjustability in the front, so you fine tune your handling or fitment with up to -1.5° of camber.

2014-2018 Mazda 3 Coilovers

Fitment Focused:

The CorkSport Coilover kit is truly a direct replacement for the OEM suspension setup. This means no special tools, and not even spring compressors are required for install. There is also no permanent modification required for installation, however if you adjust camber frequently, you will need to modify your strut towers for accessibility.

Mazda Atenza and Axela coilover Kit

Long Lasting Quality:

Each component in the CorkSport coilover kit is designed to last the test of time. All components either use corrosion resistant materials, or have corrosion resistant coatings. All steel parts are powdercoated while aluminum parts are anodized. This means the parts look good and will last as long as your GEN3 Mazda 3/6.

  • Coilover suspension will add NVH (noise, vibration, and harshness) and ride rougher than the OEM suspension. Give us a call if you are concerned about ride quality.
  • Full access to the camber plate while installed in the vehicle will require vehicle modifications via cutting the strut tower opening.

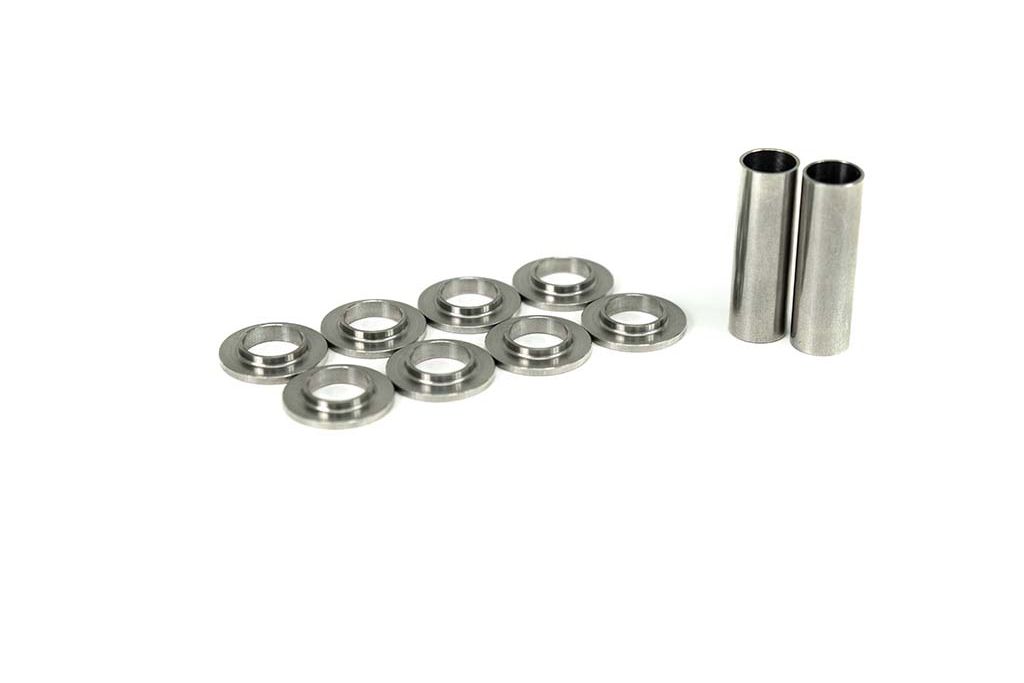

  • Mazda 6 Note: Build dates 2013 and early 2014 have a unique rear damper attachment that will require pressing out a bushing for installation. Please check your vehicle before purchase.

Additional Features

  • Mazda Fitment: 2014-2018 Mazda 3, 2013-2017 & 2018+ Mazda 6.
  • Designed & Developed in America: Designed, tested, and validated in Vancouver, Washington, in the Pacific Northwest.
  • CorkSport Service & Support: 2 year limited warranty, full color installation instructions, all necessary components, and knowledgeable telephone support at (360) 260-2675.

How To Install Mazda 3/6 Coilovers

It will take you four hours to install the CorkSport Coilover Suspension with our easy-to-use instructions.

4 Hour Install Time

4 Hour Install Time

Difficulty: 3/5

3/5 Difficulty

2-Year Warranty

2-Year Warranty



How to install Mazda 3 coilovers
