Boost Reference Adapter Mazda 3 Turbo

Looking to add a boost gauge to your SkyActiv 2.5L Turbo Mazda so you can monitor boost levels while driving? If that’s the case then the CorkSport Boost Reference Adapter will help simplify the install process and requires no permanent modification.

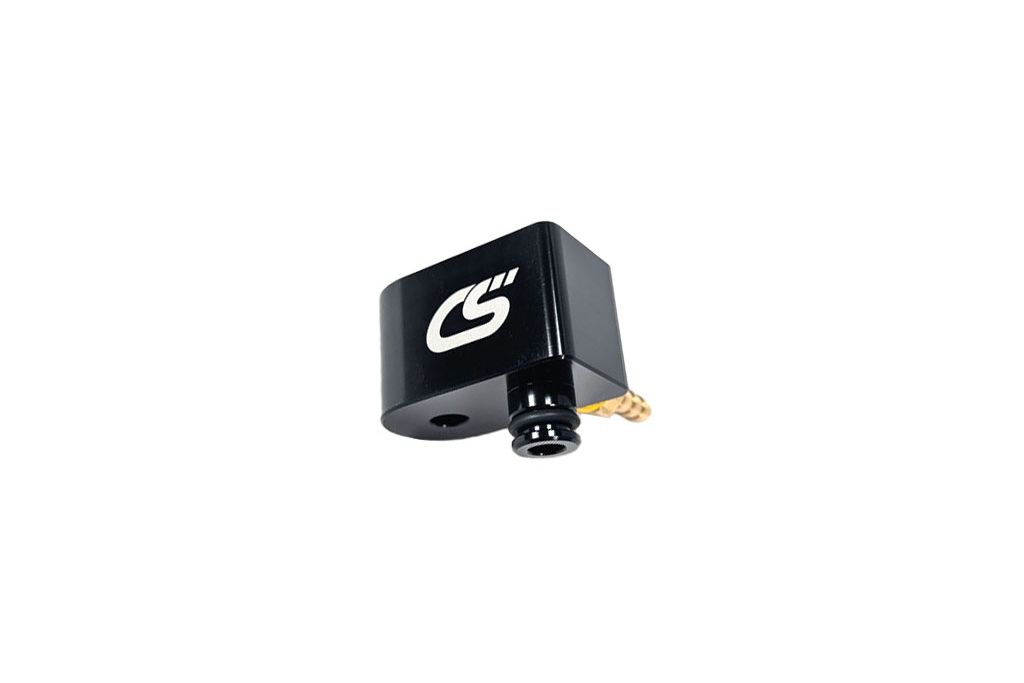

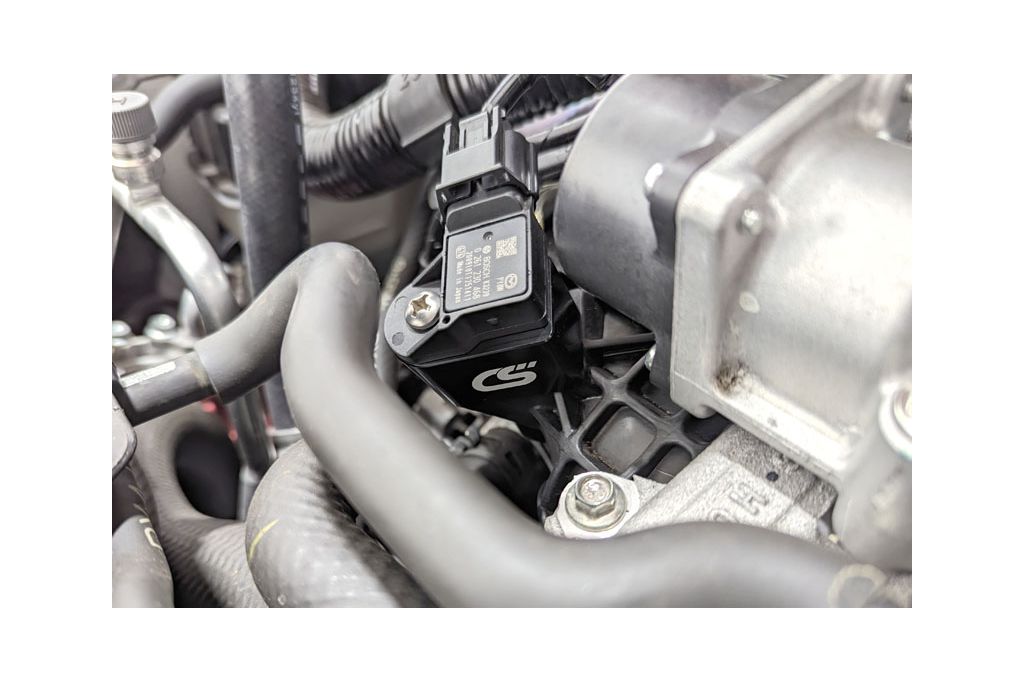

The CS Boost Adapter allows you access to the same port in the intake manifold that the MAP sensor utilizes. This makes it so installation is as easy as removing a screw and placing the adapter between the MAP sensor and the intake manifold, and just like that, you have access to a boost source via a 3/16 in-barb.

If the CS Boost Reference Adapter is something you are interested in, keep on reading for more in-depth info below.

Read The BlogThe Easy Boost Gauge for the 2021+ Mazda 3

The CorkSport Advantage

Mazda 3 Performance Manifold Pressure Gauge

Fitment and Design:

The CorkSport Boost Reference Adapter is designed to offer an additional port in the intake manifold without making any permanent modifications.

The adapter acts as a spacer for the MAP sensor so that a 1/8 NPT fitting with a 3/16 inch barb can be installed.

This fitting allows you to connect your boost gauge directly to the manifold so you get accurate boost readings that are post-intercooler.

Material and Hardware:

For the CS Boost Adapter, 6061-T6 aluminum was selected for its good corrosion resistance and machinability. This part gets CNC machined out of the billet to provide tight tolerances and is anodized black.

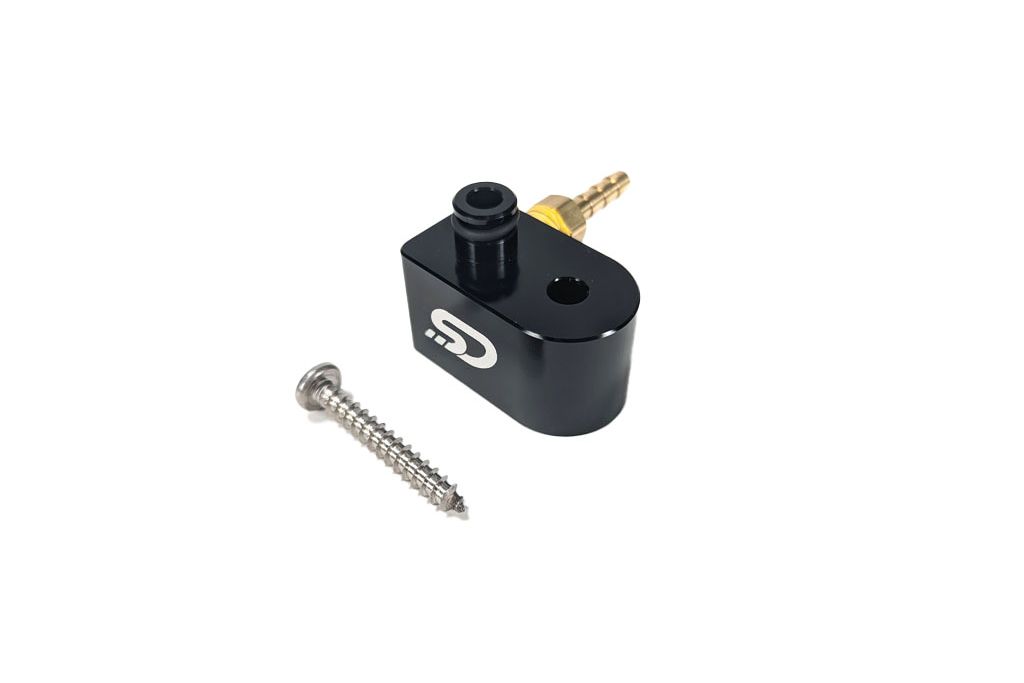

Also included with the CorkSport Boost Reference Adapter is a new stainless steel screw that secures the adapter and MAP sensor to the intake manifold.

Hose is not included with the Boost Reference Adapter Kit.

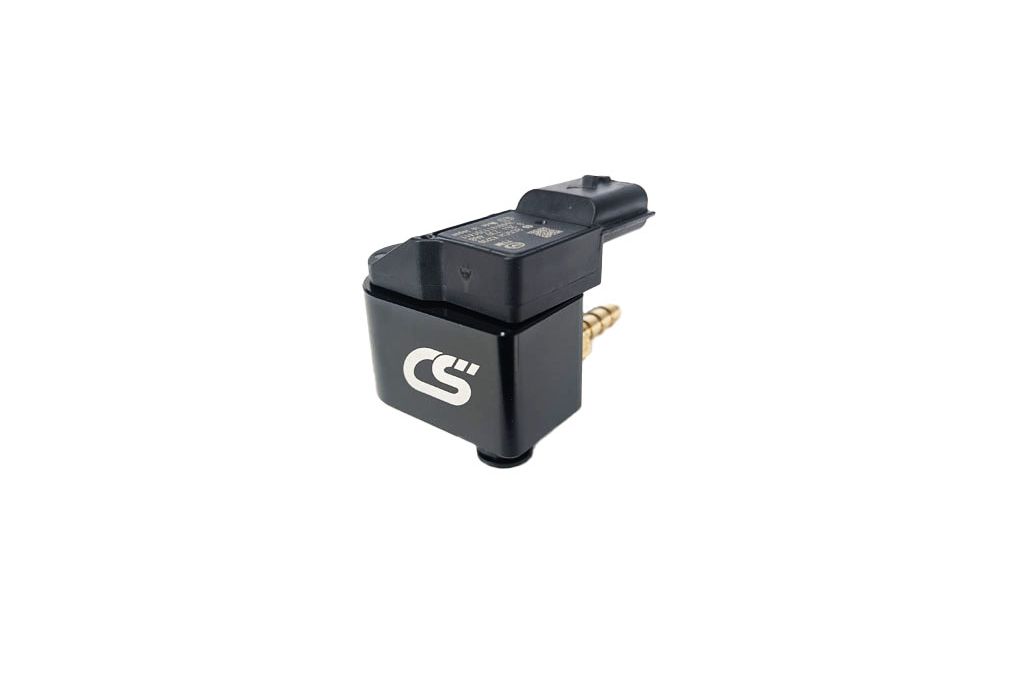

MAP Sensor is not included with the Boost Reference Adapter Kit, only shown for reference.

Additional Features

Vehicle Fitment: SkyActiv 2.5L Turbo Engine
Developed in America: Designed, tested, and validated in Vancouver, Washington, in the Pacific Northwest.
CorkSport Service and Support: Receive a 2-year warranty, full-color installation instructions, all of the needed installation hardware, and knowledgeable telephone installation support at (360) 260-2675.

How To Install the Boost Reference Adapte

It will take you Approx. 30 minutes to install.

30-min Install Time

1/5 Difficulty

2-Year Warranty

No CEL
