Get maximum turbo performance and dramatically increase power and torque with the CorkSport Mazdaspeed 3 “Modular Series” 3 Inch Downpipe. The new V2 design uses our modular system to improve flow, enhance fitment and make installation simpler in your MS3 engine bay. The design utilizes a cast stainless steel bell mouth with a v-band connection to 3” stainless steel piping. Available with fitment options for an upgraded 3-inch/80mm exhaust or fitment with a stock/2.5” exhaust. Plus, it fits all years of MS3! Check out more information and pictures down below!
Read The BlogCorkSport Mazdaspeed 3 Downpipe Now Available with High-Flow Catalyst
The CorkSport V2 Downpipe drastically improves exhaust flow compared to the restrictive OEM downpipe. This results in gains of up to 50whp & wtq on a stock turbo car with an intake, HPFP upgrade, and a tune. Even larger gains could be expected for cars with an upgraded turbo!
Knowing the installation can be a huge pain when upgrading your downpipe, we aimed to make installation and fitment much easier with the V2 design. The modular design with a separate cast bell mouth and v-band connected pipe section does just that.
With the 2-piece upper and lower sections of the downpipe, all downpipe nuts are now easier to access as you do not have the lower section in the way while tightening. This allowed for easy stud & nut access as well with cutouts designed to fit sockets & wrenches. Lastly, should you ever need to remove the downpipe or turbo for maintenance, the bellmouth portion can stay attached to the turbo! Just disconnect the v-band clamp and remove the lower DP section from the exhaust.
The CorkSport V2 Downpipe is designed to fit an upgraded 3” or 80mm exhaust for no flow restrictions. If you want a more sleeper build, there is also an option that necks down slightly to work with OEM and 2.5” diameter exhausts.
Both options will require your catback to use the OEM-sized flange with the donut-style connection for an easy installation with your existing pipes. Both sizes are offered only in a catted setup that is for race use only and is not street-legal in areas with emission controls. The cat itself is a high-flow 3-way metallic foil 300cel CAT with a 4-inch outer diameter.
At the turbo side, the CorkSport modular downpipe uses a cast 304 stainless steel bellmouth for strength, reliability & simplicity. The piping uses a CNC machined V-band flange TIG welded to mandrel bent 304 stainless piping. CNC machining ensures a leak-free seal, TIG welds ensure high strength, and mandrel bends ensure smooth exhaust flow.

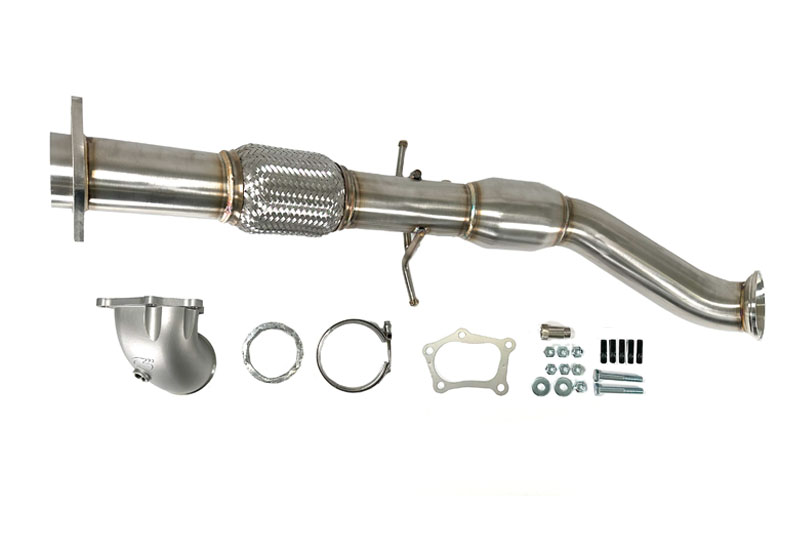

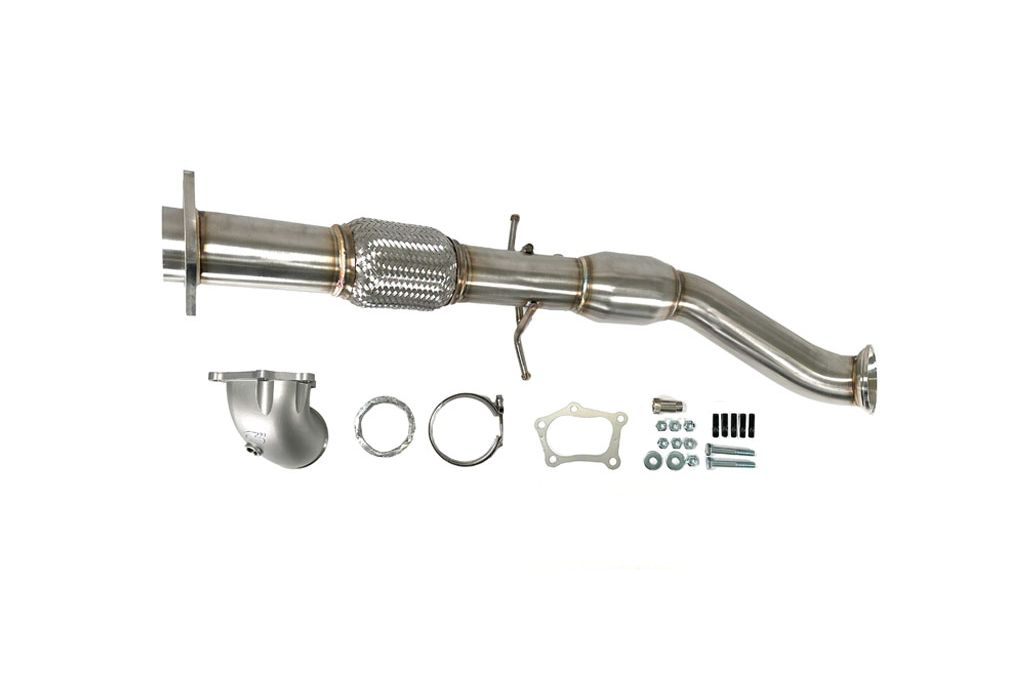

Included with your modular 3” downpipe is everything needed for installation. This includes a stainless v-band clamp for the bellmouth to DP connection, brand new downpipe mounting studs & lock nuts, and even an O2 sensor harness extension.
The thing we’re most proud of is our custom MLS downpipe gasket included with each kit. We port-matched it to the DP bellmouth & CST6 to ensure no flow restrictions whatsoever!
NOTE: if you order the OEM-sized outlet option, we recommend you purchase a new donut gasket, as it is not provided. 3” sized outlets include a new donut gasket to suit the larger pipe diameter.
It will take you Approx. 5 hour to install.
5 hour Install Time
4/5 Difficulty
2-Year Warranty
Yes CEL
Fits:
2007-2013 Mazdaspeed 3
2007-2013 Mazdaspeed Axela
2007-2013 Mazda 3 MPS
