Mazda 3 Short Shift Plate Kit


Price: $99.99
Price in points:  What are Points? 100 points
Axl-6-961-10
+
Add to wish list


Mazda 3 short shifter


Reduce the throw of your shifter and improve precision and performance with the CorkSport Mazda 3 Short Shift Plate. Providing a 33% throw reduction, the CorkSport Mazda 3 Short Shift Plate is designed for spirited driving and will reduce throw while keeping the height of the OEM shifter unchanged. The installation takes a mere 20-30 minutes with some simple hand tools and will provide a serious improvement to the quality of your shifting experience. This short shift plate fits all non-Skyactiv Mazda 3 manual transmissions with 5 and 6 speeds from 2004-2013

The CorkSport Advantage:

  • Made from CNC Machined Steel Plate with powder coated finish for a long lasting durability
  • Adjustable: Reduce the throw by 33% to customize your shifting experience
  • Self Locking Nuts: Pre-applied locking patch nuts included with shifter plate
  • Fitment: 2004-2009 Mazda 3 and 2010-2013 Mazda 3 non Skyactiv.
  • CorkSport Support and Service: Receive a full 2 year warranty, all of the needed installation hardware, and knowledgeable telephone support. Takes 20-30 minutes to install


  • Fitment Note: Does not fit Diesel versions of the Mazda 3

    how to install a Mazda 3 short shift plate
Just installed the short shifter plate on my 2005 Mazda3 SP23 hatchback (2.3L) with 150k on it. The plate tightens up shifting -- there is less freeplay, the throw is shorter, and each gear engages more crisply. The throw is reduced by 33% according to Corksport, though it feels perhaps closer to 50%. This comes at the expense of 50% higher effort, which is also how it feels subjectively. While the shifter plate won't make shifting Miata-like, it will bring it much closer and is definitely worth the money. Be sure your engine and transmission mounts are in good shape before installing this, or shifting will continue to feel vague and variable. My 3's engine mounts were all new at the time this kit was installed.

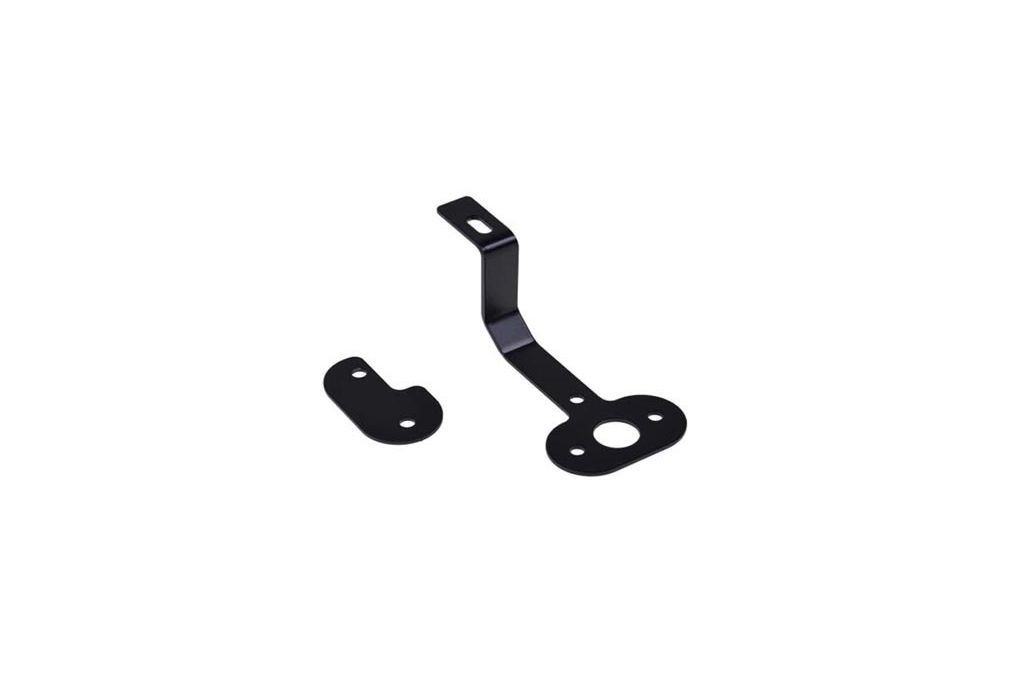

The kit consists of the shift plate and a locking plate with all the necessary nuts and bolts. Minimal tools are necessary -- just a 10mm socket/6"+ extension/ratchet, 10mm crescent wrench (stubbier is better), and a large flat-head screwdriver or 13mm crescent wrench. I did need to use a second 10mm crescent wrench as the clearances were too tight for my 3/8" ratchet for the last bolt. Also, I used a torque wrench to tighten to the 7-9lb-fit spec. I agree with Corksport that installation is a 2/5 (depending on the size of your hands). Instructions are fairly clear, though I did end up installing the shifter bracket backwards (step 1k) -- install the bracket so the cut-out is toward the front of the car. Small hands are helpful but not essential. Installation should take someone with mechanical skill about an hour (Corksport's 20-30 minutes is a bit optimistic unless you have tiny hands and have done it before).

The battery box comes off easily enough. Disconnecting the ECU harness requires proper technique and a delicate hand -- as described the white camlocks need to be gently unclipped and slipped off without any effort. The fitment of the plate, locking bracket, and bolts/nuts is perfect -- just tighten everything down evenly together when everything is in place at the end. Also, apply lithium grease to both shifter balls as the lubrication is probably all dried out.

The shifter plate is definitely worth the cost and is easy enough to install on your own. I tried the e-bay Manzo short shifter, but didn't care for its tilt toward the driver or its shorter shift height. But, the metal washers (still installed) did help reduce some of the sponginess from the flexible plastic shifter base. If I had to do this again, I would make this my first modification, along with replacing all of the engine mounts with firmer aftermarket mounts.
