Adjustable Rear Sway Bar | Mazdaspeed 3 Sway Bar

	CODE	Swaybar Color	Availability	Price
	CODE:Axl-3-070-10	Black	Availability:In stock	$249.99
	CODE:Axl-3-070-12	Blue	Availability:In stock	$249.99

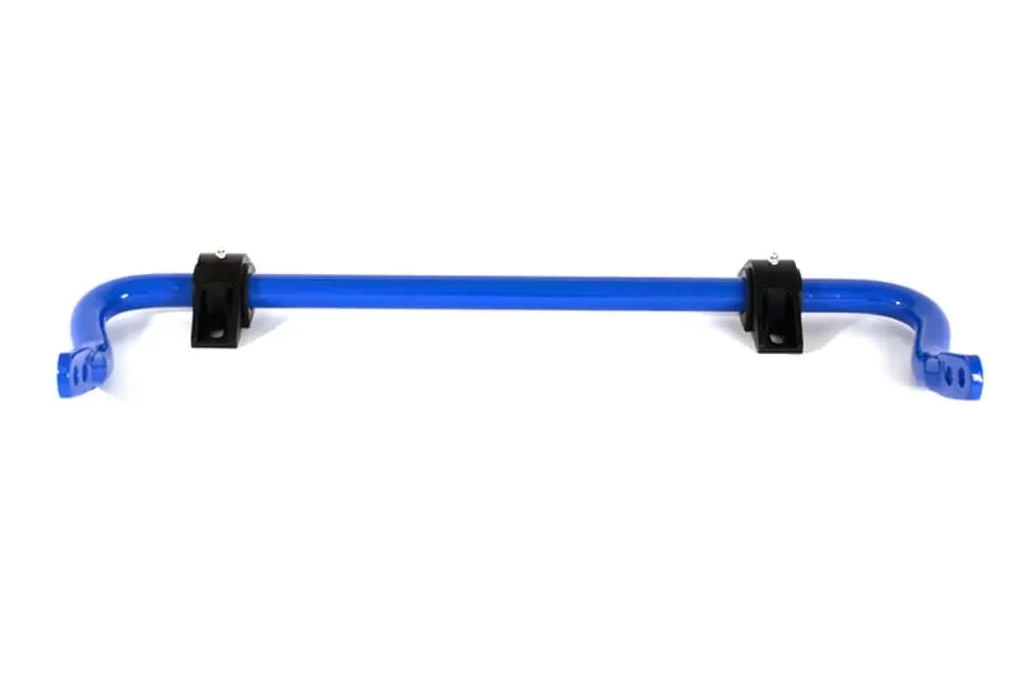

Remove the tendency to overpower the front tires under hard cornering and minimize traction robbing body lean with the CorkSport Mazdaspeed 3 Rear Adjustable Sway Bar. Compressing inside suspension, the CorkSport Mazdaspeed 3 Rear Sway Bar effectively increases the spring rate on side of the suspension which is compressed most and its adjustability allows you to fine tune the handling. Each Mazdaspeed3 sway bar includes machined 6061-T6 aluminum sway bar brackets which are more durable than the stamped steel design common with other sway bars and look sharp with an anodized black finish.

The CorkSport Advantage

Two Speed 3 sway bar end link attachment points

>Adjustable:

Two end link attachment points to change the stiffness between 45% stiffer (1305 lbs/inch) than stock, or 80% stiffer (1603 lbs/inch).

Single Piece:

A single piece is used to create the rear sway bar which adds strength by removing weak points such as welds.

Billet Sway bar Brackets:

Superior bracket design with grease fittings for easy servicing with 90a durometer polyurethane, our brackets and bushings are the last you will need. Once installed, the reduced bar movement gives you extra confidence when taking corners.

The CorkSport Advantage:

Extra Value: Includes Billet Sway bar brackets, at $79.99 value.
One piece design: CNC bent for precise fit and made from 28.5mm 4130 Steel.
Adjustable: Two adjustable locations for the end links to install allowing you to change how much the bar uses the other side of the suspension. 45%/80% stiffer than stock on the Mazdaspeed 3.
Fitment:2007-2013 Mazdaspeed 3.
Made in the USA: Engineered and manufactured by CorkSport in Vancouver, Washington.
Durable blue or black powder coated finish: can survive the winter driving in areas where roads are salted for snow and ice.
CorkSport Service and Support: Receive a two year limited warranty, full color installation instructions, all of the needed installation hardware, and knowledgeable telephone support.

Install time 2/5 Difficulty 2 year warranty No CEL

How to install a Mazdaspeed 3 rear sway bar

I replaced a JBR rear sway bar with this unit and the construction of the part and stiffness is a night and day difference. No welds to rust or break like the JBR, powdercoat finish has held up a lot better over the year plus timeframe I’ve had it on as well.

This bar at the ‘softer’ setting is still stiffer than the JBR at its ‘stiffest’ setting. I’ve had mine on the stiffer setting this whole time and the car actually feels twice as stiff as the other sway bar did. When comparing costs, I strongly suggest you take into account the stiffness measurements of both units and the parts included. Corksport including the billet brackets is a great feature and makes greasing a breeze.

Zach Nieman11/01/2024, 04:51 PM

Paired with the front sway bar and the adjustable front sway bar end links, my car now handles like a DREAM. Couldn’t ever imagine going back to a time where I did not have these sway bars installed.

Solid construction, step by step instructions that make it simple even while combating the typical rusty undercarriage that comes along with a midwestern car. The adjustability is nice because it allows the effect to be more or less aggressive depending on your driving style and needs. This kit comes with all the hardware needed to install too, which is always a plus when you are trying to get something installed in time for a same day test drive!

Jaclyn M03/06/2024, 08:51 AM

Just installed both the front and rear sway bars yesterday in a couple of hours. They arrived on time and well packaged as usual, even with an extra little treat and some stickers!

Installation was not as bad as I thought it would be. Everything came out and went back in really smoothly, although I think that mostly depends on how rusty your car is underneath. The sway bars themselves are really high quality and look incredible, especially once you get all the brackets and hardware attached to it. It’s a shame you can’t really see them once they’re installed!

The cars waiting for first day of testing in spring but I have no doubt these are going to make a huge difference. These are an absolute must if you’re thinking about doing any racing or just want better handling for some fun spirited driving. I also like that I have some adjustments for the rear to balance out the over/steer in the turns.

Wyatt Hockensmith01/31/2024, 03:44 PM

Corksport was very helpful. I ordered this and informed them that I would be moving out of state and they were helpful enough to get this shipped to me and keep me updated the entire time through the receiving of the parts and shipping the sway bar link itself. The sway bar itself is great quality and sturdy enough to hold up. A great replacement for the rusted bushings and sway bar that's on my car currently.

Nathan Acosta10/07/2021, 03:44 PM

So much better than stock happy I waited for it. Definitely worth the upgrade.

Dean Gierz05/23/2021, 10:09 AM

Great performance, but eats end links. I'm about to take this off my 2012 MS3 after about 20,000 miles because it has destroyed a second pair of end links. About 5-10k miles after installing this sway bar, I started to hear a clunk from the rear when going over angled bumps or turning sharply, anything that uses the sway bar. It got progressively louder. I replaced the worn end link, noise went away. Came back on the other side, replaced that, noise went away. 10k miles later, it's back again. I wish CorkSport sold beefier end links that could handle the sway bar, because turning those into a 10k mile consumable is not worth the minor handling upgrade for me personally.

Griffin04/12/2021, 10:57 AM

I've had this sway bar on the stiffest setting for only 50 miles and I am impressed. Installed with a new pair of end links. The car is much more confident in cornering and this has got to be my second favorite(after rear motor mount Stage 11) and instantly noticeable install.

Jesse F.01/07/2019, 06:37 AM

I bought this RSB for my 08 speed3 over a year ago. Install was a little longer because I had to cut the old sway links off but it wasn’t bad. I went straight to the stiffest setting and haven’t looked back! High speed cornering has vastly improved. The car feels like it’s on rails. This RSB coming with the CNC mounts makes it a no brainer over other options available out there.

Andrew Cesarini10/28/2018, 08:21 AM

I've been driving with this for about 2 weeks now on the "low" setting I guess you could call it, and this has definitely corrected the issue with understeer. I'm actually curious about trying the "high" setting just to see how it feels. As always CS provided absolutely beautiful craftsmanship. I mean the brackets alone are a true work of art.

Ryan Olson07/27/2018, 10:43 AM

drive with confidence. I wanted this for a while and betrayed CS for a different brand and it didn't work out too well and I suffered greatly. I have over 10 CS products so far and they haven't get me down.

GCPhotographers04/25/2018, 07:31 PM

← Prev

12 3 4 5

Next →

Write a review

Will this work on non-mazdaspeed models? I have a 2012 Mazda 3 I touring, with the Skyactiv engine

Asked by Nicholas Schwartz | 08/03/2022, 11:55 AM | 1 answer(s)

I currently have Corksport's older rear sway bar with the 3 hole settings. I no longer recall the stiffness rating for that bar and hoping you could tell me if the stiffest setting of your current rear sway bar is greater than the stiffest setting of my bar? Thanks in advance.

Asked by William S Mah | 07/09/2022, 08:34 AM | 1 answer(s)
