Cool down your Speed3 boost air temperatures without compromise with the new CorkSport Front Mount Intercooler Kit with the small or large intercooler. #ZoomZoom!

Hover to lift the hood

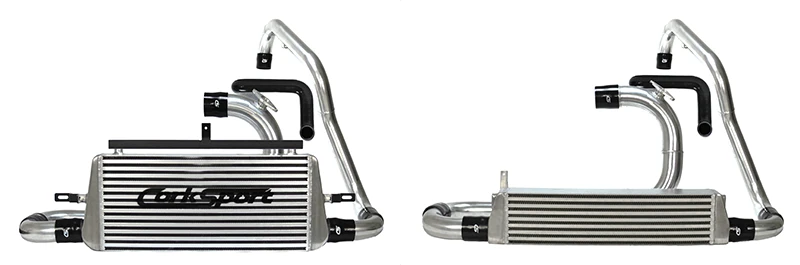

Featuring all new piping for better fitment and performance, the CorkSport Front Mount Intercooler Kit comes standard with the high flow small core or the optional big core with crash bar. Whether you are sporting a few bolt-ons or a groundbreaking big turbo build, this FMIC Kit has the performance to support your goals. Warning: Crash bar will NOT work on non-USA DOT compliant cars.

Read The BlogThe New and Improved Mazdaspeed FMIC

Check out the video and installation instructions below. Share your performance review with the CorkSport community once installed!

2010-2013 Mazdaspeed 3 Front Mount Intercooler and RAM Air Kit

The CorkSport Advantage

High Flow/High Efficiency Intercoolers

Small Core: This core may be small, but it's mighty. Featuring 10mm runners that provide ample thermal efficiency while only inducing a 0.6psi pressure drop at 15psi on the OEM turbocharger. Measuring in at 23.5" Long x 6" Tall x 3.5" Thick
Big Core: Only available with the CorkSport crash bar, the big core is big and even more mighty. Featuring 10mm runners, the CorkSport big core has been proven on a 684whp car (credit to Sean Strout). Measuring in at 23.5" Long x 11" Tall x 3" Thick.

Performance Piping Design

The CorkSport FMIC Kit features a new variable diameter piping that reduces boost lag and improves throttle response.
Hot Side Pipe: The hot side pipe utilizes 2.25" diameter piping to get the hot boosted air to the intercooler fast to reduce boost lag.
Cold Side Pipe: The cold side pipe utilizes 2.5" diameter pipe in the first half and 3" diameter pipe in the last half to increase the volume of cold charge air directly in front of the throttle body. This reduces boost lag and improves throttle response.

Engine Mounted Piping

All the piping's mounting locations are located on the engine, allowing the piping to move with the engine reducing the chance for wear and tear.

Reinforced Silicone Couplers

9-layer (4-layers braided & 5-layers silicone) available in red, black, or blue.

CorkSport's Mazdaspeed3 carbon fiber hood scoop has a superb finish.

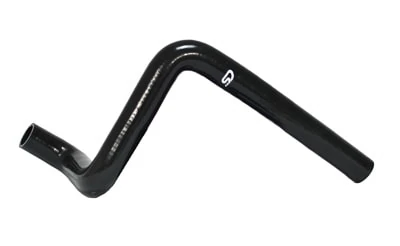

Reinforced Silicone Coolant Hose

The cold piping routing interferes with the OEM coolant hose so we provide you with a new coolant hose that fits and functions great! Only available in black.

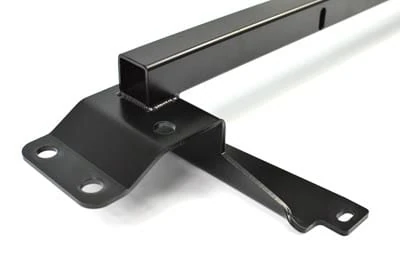

Direct Fit Crashbar

Included with the big core kit, the crashbar utilizes the OEM mounting locations on the chassis and the radiator core support while still providing the OEM tow point hook-up location.

Stainless Steel T-Bolt Clamps

Stainless steel T-bolt clamps with nylock nuts. Available in black zinc or polished.

Precision Manufacturing

CNC bent aluminum piping with bead rolled ends for a great fit and less chance to pop a coupler.

Quality Hardware

Manufactured from mild steel, the brackets are laser cut and bent then powder coated black for long lasting durability.

Polished Finish

All the piping is polished so it's ready to install right out of the box.

Additional Features

Compatible with:2010-2013 Mazdaspeed 3 equipped with a CorkSport Intake.
Designed & Developed in America: CorkSport Mazda Performance is resides in Vancouver, Washington and is located in the beautiful Pacific Northwest.
Quality Hardware: Manufactured from mild steel, the brackets are laser cut and bent then powder coated black for long-lasting durability.
CorkSport Service & Support: 2-year limited warranty, full-color installation instructions, all necessary components, and knowledgeable telephone support at (360) 260-2675.

How To Install Your CorkSport Front Mount Intercooler

It will take you Approx. 4-6 Hours to install the CorkSport Front Mount Intercooler with our easy-to-use instructions.

4-6 hour Install Time

4/5 Difficulty

2-Year Warranty

No CEL

One of my favorite purchases for my speed so far. And works great with my GFB response blowoff. I read in a previous review somoen having problems with there after market blowoff, and I purchased anyway. And I'm glad I did. Made the car come together and pair up with the cst4 perfectly. Thanks for always coming through with the best mazdaspeed aftermarket parts as always guys!

Taylor Richards07/28/2020, 04:55 PM

Bought this a few weeks ago and as far as quality and function..... A+. That being said, have a few things I wasn’t really happy with.
1. The clamps hold it all together are a bit small, really had to put in way more effort than I should’ve to get these on. Even an 1/8 of an inch bigger would’ve saved me an hour or more.
2. The big core is exactly that, it’s huge. Which was a big reason why I bought it. I’m wanted to fill up that bayson r GV style grill. But..... it’s a bitch getting the splash pan and center lip piece back on, even after modding. That center lip piece went back on, but it was way stretched and looked awful. The piping and intercooler itself don’t give you a ton of space to work with down there. Within a few days, that center lip had caught enough wind and completely tore off the mounting points and totally trashed the entire splash pan front section. Now even if I buy a new center lip and try to get it back on there, the plastic tabs are gone and have nothing to Mount to. So..... if yours ends up like mine, be prepared to spend even more money to fix your bumper and front section of the splash pan. I work at a dealership and had two of our top techs (one being Mazda certified for many years) and this still happened.
3. The piping route runs right next to your intake and BPV and I have an HKS setup for BOV, that was a huge pain to wedge in there and almost had to go back to the stock unit. So be prepared if your running a larger bov
Now.... most of the parts on my car are from corksport and I’ve had an A+ experience with every one..... except this. Now these aren’t massive issues.... sure. But the fact that I’m surfing the internet now trying to find replacement parts for the lip and front section of the splash guard and possibly a new front bumper since it completely ruined the mounting points for said lip is a real bummer after spending $1300 ish after shipping and everything. Hopefully I can figure out a way to retain my current bumper and ghetto rig something to make the replace parts work and mount to the car

Anthony Gideo05/17/2020, 03:28 PM

First off I want to say that this is a nice quality piece intercooler kit. I purchased the big core with the front crash bar and everything lines up correctly according to the instructions it comes with. Air temps are much better with this front mount especially on hot summer days compare to the stock top mount. I bought this kit for a good price from a local that sold his ms3 and never got around to installing this kit so I can't complain much. With that being said I only have couple of things I didn't like with this kit, first off half of the clamps that comes with the kit is completely useless as they are nearly impossible to put on which is kinda dissapointing considering that the kit is sold for 1k+. Second, I bought a Turbosmart Dual Port bpv prior to this intercooler kit but based on the design of the piping and how it's routed I now literally have a useless $300 bpv just sittting around as the piping doesn't clear the height therefore I had to put the stock bov back on which fits fine but if you have the stock bypass hose you have to fidget with it a little bit because the position is a little off. Next thing is the the bpv flange isn't threaded so make sure you have some nuts and bolts handy. Other than that the intercooler performs great as throttle response feels different.

Richard Vang10/30/2017, 07:56 PM

Once I got the FMIC in it preformed great. The problem was getting it installed. First, half of the clamps that are provided with the intercooler did not fit no matter what I did. I ended up going to the auto parts store to buy standard hose clamps. Second, The bypass valve which they don't mention in the instructions on mounting it to the hot pipe which is not threaded. You will need 2 bolts and nuts to mount this. Last, there is no provided bolt for relocating the evap solenoid and bracket, hope your like me and saved all of the nuts and bolts from your previous Corksport installs. If your a do it your selfer and this is a weekend project, good luck contacting someone for help with your install as Corksport is not open on weekends. Needles to say, it took a lot longer than the 5 - 6 hour estimate.

Ricky Graham06/06/2016, 06:50 AM

Write a review

Does the larger intercooler kit and crash bar fit with the OEM bumper?

Asked by Brett | 09/11/2024, 07:42 AM | 1 answer(s)

As of today will this kit clear a turbosmart dual port bov? the reason of my question is because i see in the reviews back in 2020 a user wasn’t able to clear his same bov.

Asked by Eliezer Perez | 01/05/2023, 06:15 AM | 1 answer(s)

What is the shipping weight for the large core with crash bar setup? Also how many boxes does is it ship out as.

Asked by Cuong Ly | 10/05/2022, 08:27 PM | 1 answer(s)

I want to replace my current air filter, what is the exact size of the air filter on the Ram intake or the part number?

Asked by Bobby Yocum | 02/20/2022, 07:16 PM | 1 answer(s)

Does this fit with bayson R grill ?

Asked by Creegan | 01/11/2022, 09:27 AM | 1 answer(s)

what is the overall lenght of the intercooler with the inlet and outlet pipes

Asked by mitchell katona | 12/28/2021, 04:42 PM | 1 answer(s)

Will fitment be an issue w/ the 4" SRI?

Asked by Brandon | 09/30/2021, 03:39 PM | 1 answer(s)

Will this install with a stock intake?

Asked by bill mah | 03/26/2021, 02:06 PM | 1 answer(s)

Is this available without the core?

Asked by Forest | 01/15/2021, 01:16 AM | 1 answer(s)

could i run the large core with a cobb sri, tip, & bpv being my only mods? would i need a tune?

Asked by Jonas Harmon | 12/04/2020, 11:10 PM | 1 answer(s)

do you guys sell the crashbar and big core separatelly? for future upgrades?

Asked by Joshua Lopez | 07/29/2020, 01:05 PM | 1 answer(s)

Do the intercoolers come with the Corksport logo painted on them?

Asked by Tyler Beckstead | 10/16/2019, 09:47 AM | 1 answer(s)

Which is a better fit for stock turbo? Big core or standard FMIC.

Asked by Alex | 10/12/2018, 02:46 AM | 1 answer(s)

If I buy it with the ram air intake box does it come with the TIP or do I have to buy it separately?

Asked by Eli Q Bettelyoun | 08/19/2018, 06:23 AM | 1 answer(s)

Will this fit a 2006 Mazda 6 MPS?

Asked by Reon Stewart | 09/16/2018, 08:55 PM | 1 answer(s)

Would you be willing to sell the couplers separately?

Asked by Sarah | 07/15/2016, 01:53 PM | 1 answer(s)

the small core is a direct fit? it doesn't need the crash bar correct?

Asked by Ray | 11/09/2016, 01:40 PM | 0 answer(s)

Am I going crazy or did the price for this FMIC go up since last month...? I was saving up to buy the large core and now again I don't have enough... I guess its not for me :(

Asked by jose | 11/04/2016, 04:07 PM | 0 answer(s)

Will this work with the K&N SRI?

Asked by Andrew Schuh | 04/28/2016, 11:15 PM | 1 answer(s)

I have the stage 3 cold air intake with the turbo inlet pipe. Is there any special placement for the use with that intake or will it work with out changing anything?

Asked by Brett | 04/10/2016, 01:09 PM | 1 answer(s)
