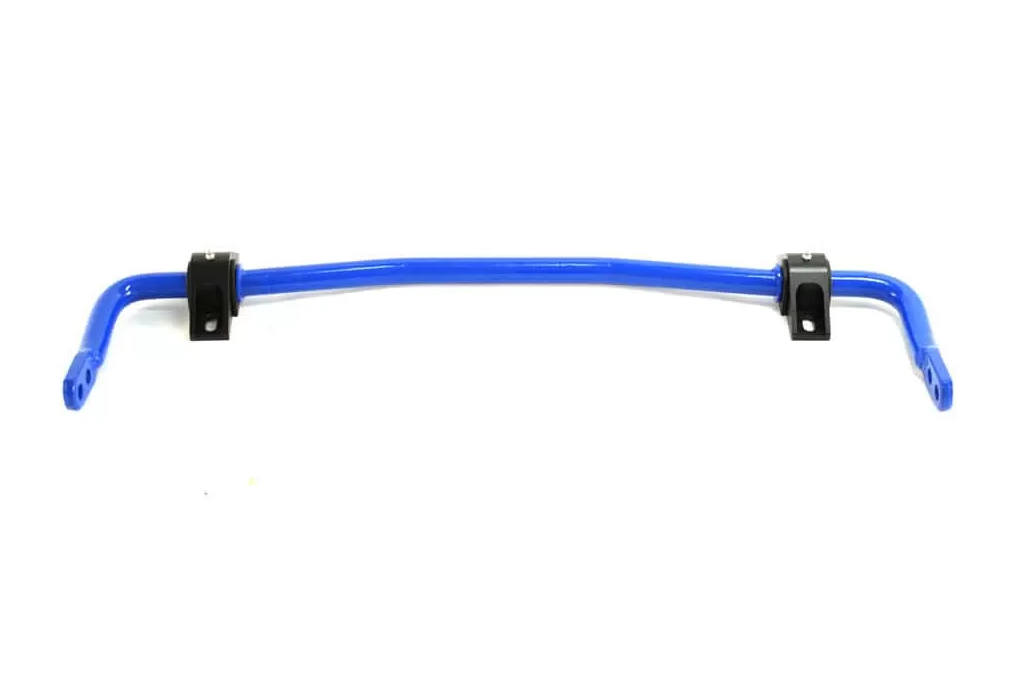

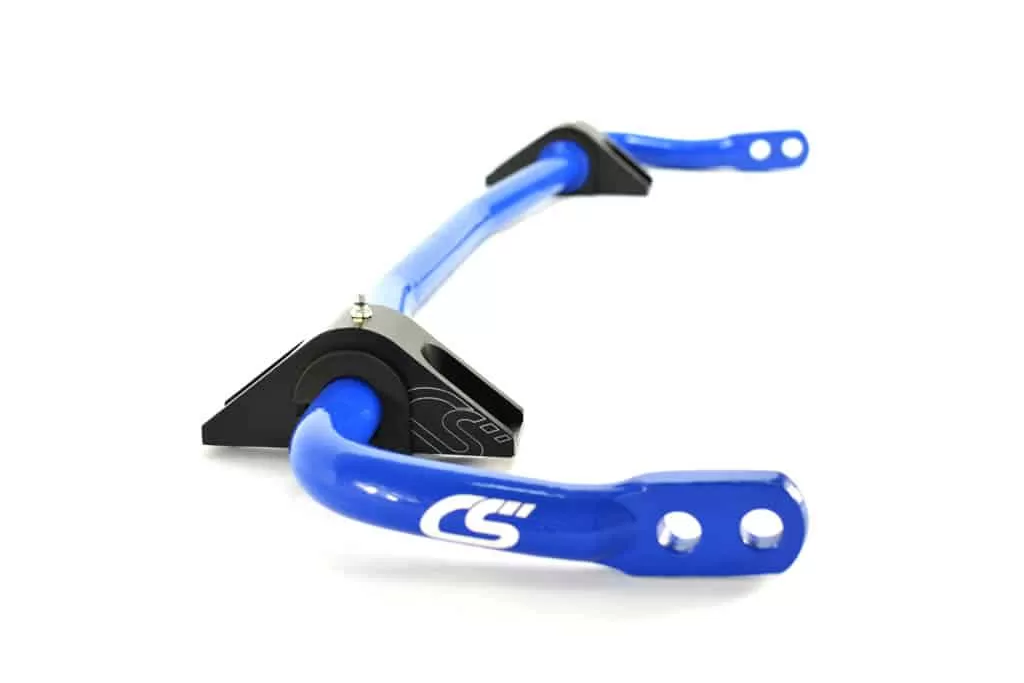

2014-2018 Mazda 3 Rear Sway Bar
Ā
Price: $249.99
Reward points:0 points
- View all variations as list
| CODE | Car Model | Availability | Price | ||
|---|---|---|---|---|---|
 | Axm-3-070-12 | 2014+ Mazda 3 | In stock | $249.99 |
Remove the tendency to overpower the front tires under hard cornering and minimize traction robbing body lean with the CorkSport Mazda 3 Rear Adjustable Sway Bar. Compressing inside suspension, the CorkSport Mazda3 Rear Sway Bar effectively increases the spring rate on side of the suspension which is compressed most and its adjustability allows you to fine tune the handling. Each Mazda 3 sway bar includes machined 6061-T6 aluminum sway bar brackets which are more durable than the stamped steel design common with other sway bars and look sharp with an anodized black finish.
Adjustable: Two endlink attachment points to change the sway bar from 130% to 220% stiffer than stock.
Single Piece: A single piece is used to create the rear sway bar which adds strength by removing weak points such as welds.
Billet Sway bar Brackets: Superior bracket design with grease fittings for easy servicing with 90a durometer polyurethane, our brackets and bushings are the last you will need. Once installed, the reduced bar movement gives you extra confidence when taking corners.
The CorkSport Advantage:
The CorkSport Advantage
Adjustable: Two endlink attachment points to change the sway bar from 130% to 220% stiffer than stock.Single Piece: A single piece is used to create the rear sway bar which adds strength by removing weak points such as welds.
Billet Sway bar Brackets: Superior bracket design with grease fittings for easy servicing with 90a durometer polyurethane, our brackets and bushings are the last you will need. Once installed, the reduced bar movement gives you extra confidence when taking corners.
The CorkSport Advantage:
- Extra Value: Includes Billet Sway bar brackets, at $79.99 value.
- One piece design: CNC bent for precise fit and made from 25mm 4130 Steel.
- Adjustable: Two adjustable locations for the end links to install allowing you to change how much the bar uses the other side of the suspension. 130%/220% stiffer than stock on the Mazda 3.
- Made in the USA: Engineered and manufactured by CorkSport in Vancouver, Washington.
- Durable blue powder coated finish: can survive the winter driving in areas where roads are salted for snow and ice.
- CorkSport Service and Support: Receive a two year limited warranty, full color installation instructions, all of the needed installation hardware, and knowledgeable telephone support.
Install time Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 2/5 Difficulty Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 2 year warranty Ā Ā Ā Ā No CEL
I always tell people that this is one of my top 5 mods on my 3!
Even on stock suspension, the rear sway bar made a massive improvement on body roll and handling. The stiffer ride not only increases corner grip and speed, but also gives a huge sense of confidence to the driver. I no longer feel like Iām going to roll on any turn above 30 mph, and can really power out of the curves.
Hands down one of the best handling mods out there!
Even on stock suspension, the rear sway bar made a massive improvement on body roll and handling. The stiffer ride not only increases corner grip and speed, but also gives a huge sense of confidence to the driver. I no longer feel like Iām going to roll on any turn above 30 mph, and can really power out of the curves.
Hands down one of the best handling mods out there!
I agree with mostly all the positive reviews here. I'll add that using a 90 degree grease coupler adapter on a grease gun allowed me to utilize the hard to reach zerk adapters.
This is a must have for anyone who owns a 3rd gen Mazda3! The difference that a stiffer sway bar makes when cornering is night and day, especially if you go for the most aggressive setting. I would highly recommend buying Corksports adjustable end links as well, so that you can make the most of the added rigidity.
Install is a bit more difficult than I was expecting (the brace bolts are tough to get to until you find the perfect length of socket)
Still, only took a few hours. 6/5 āļø s
Install is a bit more difficult than I was expecting (the brace bolts are tough to get to until you find the perfect length of socket)
Still, only took a few hours. 6/5 āļø s
Took me about 45 minutes to install. Few install tips that helped me, lower the rear subframe some, and you’ll get more access to the sway bar. Once loose, it came out easily and the new one went in place. It comes with grease and zerk fittings to add grease later as well.
Iāve noticed a lot better cornering with this sway bar, it doesnāt feel like the rear end wants to break free anymore. Amazing product!
Iāve noticed a lot better cornering with this sway bar, it doesnāt feel like the rear end wants to break free anymore. Amazing product!
I have installed stiffer rear sway bars on almost every car I have owned in the last 20 years. They are ALWAYS worth it. Factory rear sway bars (if equipped) are always "just good enough" and really, are never worth a crap in my opinion. I installed this bar on the softer setting along with the front strut bar and my 2017 M3 in lowered on CorkSport lowering springs and Koni Red shocks. I may move up to the firmer setting once I get a stiffer front sway bar so I can add in just a touch of oversteer. Right now I have hardly any body roll and just a slightest touch of understeer.
The swaybar itself is great. It GREATLY improves the handling of the car, really stiffening up the rear and heavily reducing body roll. I genuinely love the product but it does have a couple flaws; neither of which are with the swaybar itself.
There are only 2 gripes with this product; first being the install instructions. Instructions say to leave the subframe as-is, which leaves you with VERY little space to work with. I personally recommend you lower the subframe, not completely remove it as it would be quite difficult to get it back. Simply lower the subframe by loosening the 4 nuts holding it in place on their studs, lower on the threads. Do this slowly as to not add too much stress, but also do not worry as the studs are ridiculously strong for subframe mount points. This will allot you much more space to remove the oem swaybar and install the new one.
My second gripe is with the provided swaybar brackets. The walls of the brackets block off easy access to the top nuts that you need to tighten on the swaybar. I tried an assortment of tools and attachments to make it easier but it really is a pain.
If you are looking to improve the handling of your car I highly recommend this. Just be sure to save yourself the headache and lower the subframe a bit in the process!
There are only 2 gripes with this product; first being the install instructions. Instructions say to leave the subframe as-is, which leaves you with VERY little space to work with. I personally recommend you lower the subframe, not completely remove it as it would be quite difficult to get it back. Simply lower the subframe by loosening the 4 nuts holding it in place on their studs, lower on the threads. Do this slowly as to not add too much stress, but also do not worry as the studs are ridiculously strong for subframe mount points. This will allot you much more space to remove the oem swaybar and install the new one.
My second gripe is with the provided swaybar brackets. The walls of the brackets block off easy access to the top nuts that you need to tighten on the swaybar. I tried an assortment of tools and attachments to make it easier but it really is a pain.
If you are looking to improve the handling of your car I highly recommend this. Just be sure to save yourself the headache and lower the subframe a bit in the process!
Well worth the money. I would always lose the rear end when taking sharp turns like it was disconnected, but this solved it.
Pros
- increased grip to front end
- reduces chassis flex, sinking
- eliminated all body roll
- ties rear end to front end for better handling
Pros
- increased grip to front end
- reduces chassis flex, sinking
- eliminated all body roll
- ties rear end to front end for better handling
Really noticed the difference right away from upgrading, the CS sway bar is significantly thicker than the OE one which in itself is a big upgrade. With the stiffness settings it changes even more, I'm a local to the Dragon so I'm out there a lot and the car handles the corners so much better with this. Highly recommend for anyone wanting to help out their suspension
If you want more handling performance out of your third gen this is the first mod I would consider. I have run this rear bar since 2016 on two vehicles and have not been disappointed. The adjustability really becomes an advantage as you upgrade your other suspension components as you can fine tune the handling as your skill and tires allow.
Sooo there is different bars out there. Some more some cheap. This bar is absolutely soild and great performer. Wouldn't matter what brand you go with..to remove and install is a bear for rear. Finish was great. And I done mine in my driveway on Jack's, laying on my back. Yes it sucks. But the payout is amazing. This is a must do for anyone wanting better performance. I have my bar matched to Moog links, Bilsteins b8s, and Megan springs and it's solid. Have mine on the firm setting. While yes most looking for looks, this a performance bar. It will not ride "like stock" because it's better and safer than stock. Know what your getting into when you buy suspension parts. Also my Mazda 3 is superchargered and this bar help shifting of power back to my front where it belongs. Thanks corksport. Seriously appreciate you. And others who are doing this bar....know what your modifying you suspension to do. Stop thinking your going to get stock performance with performance parts. This bar is solid and 100% trust that my 3 will handle what I give it now.
Why are the torque settings in CorkSport's instructions different from the OEM service manual, even when factory nuts/bolts are used? For example... Your 2014+ Mazda 3 Adjustable Rear Sway Bar instructions state the following: "Reinstall and tighten the four (4) factory 14mm bracket nuts to 50ft-lbs." However, the Mazda service manual for the 2014+ Mazda 3 shows the rear stabilizer bracket nuts should be tightened to 16-19 ft-lbs.
Asked by ChampPavo | 01/02/2025, 04:42 PM | 1 answer(s)
We did not have access to the service manual at the time when these instructions were written. A new TQ spec will be updated soon. But we plan on have the TQ a bit higher then OEM as OEM is only 15-20ft lbs.
Answered by Chris Nash | 03/04/2025, 02:06 PM
