2019 Mazda 3 – What’s new with the suspension?

With the introduction of the 4th generation Mazda 3 there are many questions around the new chassis, engine, interior, and many other components. Here we are going to start investigating the suspension as we move through the process of developing sport lowering springs for the 4th Gen Mazda 3.

View all Mazda 3 Parts

If you didn’t know already, we recently purchased a 2019 Mazda 3 Premium with the 6 manual transmission and Snowflake white paint. Right out of the box the 2019 has impressed us with its intuitive driver feedback through the steering wheel, pedals, and gear shifter. The interior is phenomenal and the exterior is…growing on us.

BUT enough of the chatter lets throw the car on the lift and take a look at the suspension.

CorkSport

At the front of the car, we have a pretty typical McPherson strut assembly with a lower control arm. This type of suspension is very common in modern passenger cars because it is simple, durable, and cost-effective. There are tons of aftermarket support for this type of suspension because it is so common, but from a purely performance standpoint, it does leave something to be desired.

Comparing the 2019 to our inhouse 2018 3rd Gen you can see one major difference. The connection from the steering knuckle to the strut body is now a simple clamp collar vs the two-bolt connection on the 3rd gens. We imagine this was purely a cost-cutting design change. For you, the result is just a slightly more difficult installation.

View all of our Lowering Springs

At the rear of the car, things are drastically different. Instead of the more standard multi-link trailing arm suspension, we have a torsion beam style suspension. Mazda says this was “to reduce unwanted movement in the suspension and increase driver comfort”, but sadly we believe this is straight-up cost cutting at the sacrifice of performance.

Check our 3rd Gen Suspension options

We could go into a bunch of nerdy details here, but in a nutshell, going from multi-link trailing arm to torsion beam takes away our ability to adjust and control camber, toe, and rear roll stiffness because all of these major suspension dynamics are integrated (or discarded) with the torsion beam design. Never fear, the Team at CorkSport Mazda Performance is working on solutions to this, but it will be a challenge.

Now specifically looking at the rear springs, you can see that the spring is very short. This caused some difficulty in design, but we have successfully overcome this hurdle.

View all of our current lowering springs

We’ve tested the OEM springs rates and WOW are they soft. We developed prototypes to validate our target springs rates and have been driving on those for about a few months now. Happily, from this testing, we’ve found that the OE struts/dampers damping rate is more than sufficient for proper sport lowering springs. With that complete, we’ve designed multiple sets of lowering springs with various ride height targets and our tested springs rates.

Lastly, we tested various final prototypes to get our final ride height just right. Ladies and Gentlemen, these will be LOW and will work with Sedan, Hatch, AWD, and FWD!

We are excited to release final production units to the public in #twoweeks. It is important to note, CorkSport 7th Gear Members will have an opportunity to purchase these springs a week before the general release and they will receive free shipping (in the lower 48 states), as part of their membership benefits!

If you have not seen what the future holds for your 4th Gen Mazda 3, see our product pipeline blog here. If you have ideas or feedback, please let us know. We are listening, we want to hear from you!

-Barett @ CS

Stay Up-to-date with CorkSport

Connect with us

Stay up-to-date on the latest news and product updates from CorkSport.

* indicates required

Protect your Mazda 3 with the CorkSport Skid Tray

Extra Protection for your 2014-2016 Mazda 3

That’s right folks; CorkSport’s favorite skid trays have made their way to the GEN3 Mazda 3. Whether you have a broken OE plastic skid tray or are just looking for some extra protection for the winter months, please welcome the CorkSport 2014-2016 Mazda3 Skid Tray. Made from laser cut, 0.090” thick aluminum formed to a perfect fit, this skid tray is a direct upgrade from the OE Mazda3.

From the factory, the GEN3 Mazdas come with a flimsy plastic under tray that can crack and break with the smallest of impacts.

Stay Up-to-date with CorkSport


It exists primarily to smooth the airflow traveling under your car and act as a splash shield for the engine compartment while driving in the rain but offers no real protection for your oil pan. We felt compelled to remedy this issue, and thus, the CorkSport Mazda3 Skid Tray was born.

The 0.090” thick aluminum protects your Mazda 3 from road debris, rocks, and damage to vital engine components while adding minimal weight to your car. This aluminum is the same material as our Mazdaspeed 3 skidplate, and it has proven itself to take plenty of punishment. We even torture tested one of our prototype skid trays during the 25 Hours of Thunderhill on the CorkSport Mazda 3 Race Car and had no issues.

As always, we sought out to make the installation as painless as possible while retaining all OE features. The CorkSport skid tray only uses the OE mounting locations without having to drill or trim anything. The CorkSport Mazda3 skid tray is a two-piece design that allows for a more straightforward install. Each piece is more manageable to move around for installation than the traditional one-piece design. As a bonus, it also makes the shipping is cheaper! We retained The oil and filter access panel so you can easily perform maintenance without having to remove the Mazda3 skid tray.

By extending the front of the skid tray above the bottom of the front bumper like OE, the CorkSport Skid Tray retains the smooth transition from bumper to skid tray to ensure smooth airflow under your car. You can even run the CorkSport Skidplate with the Mazda OE front lip with no issues.

If you’re worried about your oil pan or can’t seem to keep an OE skid tray in one piece, let the CorkSport Skid Plate for 2014-2016 Mazda 3 alleviate your issues.

P.S. Our two-piece design allows us to develop fitments for other models. If you’re interested in a skid plate for your car, let us know, and we might start work on one for you!

Stay up-to-date on the latest news and product updates from CorkSport.

* indicates required

Sneak Peek at an Upcoming Transmission Motor Mount

Here is a treat for GEN3 (2014+) Mazda 3 owners!

We are in the process of designing and producing a CorkSport Transmission Motor Mount, (TMM), to reduce the excessive engine movement present from the factory. Buckle up as we go through a sneak peek at some features and go through the design process and decisions that all serve to give you a better mount in the end.

Mazda 3 without sacrificing drivability or OEM fitment. Stiffer motor mounts are a great way to improve throttle response, improve shift feel, and reduce wheel hop by reducing the total amount of engine movement but they can hugely increase NVH (noise, vibration, and harshness). As such, there is a balancing act between finding an acceptable level of NVH for the performance gains you get.

Stay Up-to-date with CorkSport


In a typical front wheel drive car the engine is mounted in a transverse matter, that is, the engine is parallel to the axle centerline. So when the engine tries to turn the wheels, the force to do so tries to make the engine rotate in the opposite direction. Motor mounts resist this motion of the engine.

Initially, we wanted to change the orientation of the factory mount for the Mazda3 to use the polyurethane bushings in the most optimal way possible as the bushings function best when they are parallel to the axis of rotation. Doing so proved to be difficult as we were effectively creating a new pivot point in the system.

Going through this design, we also realized that overall size was becoming a problem as different transmissions have varying heights. Since this mount sits right above the transmission, this was a vital thing to keep in mind. So for our 2.5L manual Mazda 3, we had a good amount of room below the mount, but it needed to go on a serious diet to fit an automatic model. This meant moving to a drastically smaller bushing which likely would have increased NVH, only using the mount for manual models, or using a custom bracket for each different transmission & model. Check out down below for one of the early (and ugly) designs.

So we went back to the drawing board. We decided to move forward with a design similar to the OE design. Doing so allowed for a smaller mount, easier manufacturing, and a significantly wider applicable model range. This includes all 2014-2016 Mazda 3, all 2014-2016 Mazda 6, and 2013-2016 CX-5 (we have not confirmed the 2017+ models years yet, but there’s a good chance this will be compatible).

Even though we went to a similar design to OE do not assume it’s the same thing. The CorkSport mount has the same diameter bushing as the OE mount; however, the OE mount does not utilize all the available space. This means that in addition to the stiffer polyurethane material, there is simply more material to resist the engine’s movement.

The CorkSport TMM utilizes billet aluminum for the main body of the mount with stainless steel plates for the washers and the angled section of the mount. This provides a more attractive and lighter mount than the OE offering while retaining the same strength and fitment of OE. Check out the picture down below for a look at one of our 3D printed prototype test fits.

We just received our first functional prototypes for further fitment and testing since 3D printed plastic parts don’t support an engine & transmission very well. With these samples, we can determine exactly how stiff to make the polyurethane and finalize the best possible design for you. During our test fit, we even noticed some deterioration of the OE mount.

This OE mount came off of the CorkSport Mazda 3 racecar. While it does not have many miles, they have all been racing miles that are very hard on all vehicle components. Check out the image down below to see a comparison between the used mount (left), a new mount (center), and the CorkSport prototype TMM (right). It’s interesting that Mazda has made some changes to their OE mount in the last few years. What you can’t see very well is that the racecar’s mount has areas where the rubber is starting to separate from the metal center section of the mount. There are even a few small tears forming on some of the inner bushing surfaces.

These signs of wear are encouraging to us at CS since this means we are helping to solve a potential problem facing 2014+ Mazda3 owners. As such we could not wait to get the TMM on a car for testing. Fitment is great so far, and we were even able to overcome some minor manufacturing errors. The first test for the mount was with the CorkSport Mazda 3 racecar at the 25 hours of Thunderhill. This event is an endurance race that runs for 25 hours straight.

The Mazda3 completed 613 laps during this time covering over 1800 hard miles. This is a torture test for any part, and I’m happy to report that the CorkSport TMM passed with flying colors. The drivers liked the mount and Derrick (who owns the car) reported greatly reduced slop in the transmission when shifting. Here is what the mount looked like after the 25-hour long race:

Aside from being very dirty and having a few scratches where it was bolted down, the mount had no issues and was still in good working condition. It already has a new home in a daily driven Mazda 3 to get even more testing done. Initial impressions are good, but we will look to decrease NVH as much as possible before any of you get your hands on it. Look for the CorkSport 2014+ Mazda 3 Transmission Motor Mount in the next few months.

Transmission Motor Mount

Stiffer motor mounts are a great way to improve throttle response, improve shift feel, and reduce wheel hop by reducing the total amount of engine movement but they can hugely increase NVH (noise, vibration, and harshness).

Stay up-to-date on the latest news and product updates from CorkSport.

* indicates required

Superior Stopping Power for your Mazda 3, Mazda 6 and Cx5 with our Big Brake Kit

After a long wait and a lot of testing, we’re proud to announce the launch of the CorkSport 4 Piston Big Brake Kit for the 2014+ Mazda 3, Mazda 6, and the 2013+ Cx5.

Why upgrade your brakes to something of this level?

On our own 2015 Mazda 3 SCCA race car, we’ve found that even mildly increased power levels can burn up the stock brakes on the track. We melted the OEM dust boots off the stock calipers after two race weekends, which is not a good sign for the longevity of OEM components.

CorkSport Mazda 3 & Mazda 6 big brake kit

CNC machined from extremely lightweight billet aluminum, the CorkSport calipers use an opposed-piston design that is fixed to provide highly improved pad wear and caliper rigidity over the OEM design. At just over 7 lbs, the aluminum CorkSport Big Brake Kit shaves almost 7 lbs of unsprung weight off each corner of your Mazda 3, all while adding more stopping power and a much better pedal feel.

Available in 3 anodized colors, this brake system includes everything you need to easily upgrade your stock braking system including high-strength steel brackets, calipers, slotted brake rotors, stainless steel braided front brake lines, brake pads, and all necessary hardware.

mazda 3 big brake kit calipers

The 2014+ Mazda 3 Big Brake Kit has the following features:

  • Superior Construction: Crafted from billet aluminum and made to last with durable components.
  • Longevity: With dual O-rings far away from the brake pads, these calipers are able to handle much more abuse than typical dust boot-equipped calipers.
  • Lightweight: At just over 7 lbs a side, this kit saves almost 7 lbs of unsprung weight per corner!
  • Versatile: Designed around a popular brake pad style (Hawk #HB750), you can use almost any brake pad compound available.
  • Available in Three Colors: Choose from black, red, or blue in a durable anodized finish.
  • Ease of Use: With simple hand tools you can change brake pads in minutes and you are able to rebuild, so you can be back to factory fresh brakes in no time.
  • CorkSport Service and Support: Receive full-color installation instructions, all of the needed installation hardware, and knowledgeable telephone support.
Mazda 3 Big Brake Kit testing 700

The CorkSport 4 Piston Big Brake Kit is available at corksport.com, and is ready to ship now! For more information, visit our product listing here.

You may also like:

Product Release: CorkSport Shifter Bushing Set

CorkSport Shifter Bushing Set
2014-2018 Mazda 3 / 2014 + Mazda 6 / 2013 + Mazda CX-5

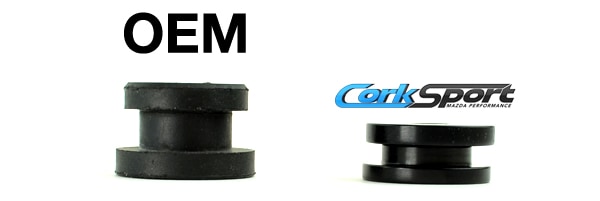

3rd Gen Mazda 3 Shifter base bushings
The new CORKSPORT 3rd Gen Mazda 3 shifter bushing set is CAD designed and machined for exacting fitment and are made from billet aluminum and anodized black for a long lasting durable finish.

Over time, shifting gears can cause the soft rubber bushings found at the anchor point of your shifter assembly to deteriorate and fall apart.

The factory OEM bushings are made out of a soft rubber giving you soft and sloppy shifts. The CorkSport shifter bushing set will give you solid shifts and a firm responsiveness.

Axm-6-958_Mazda3ShifterBushings_blogtop4

Designed for easy fitment on the 2014 Mazda 3, 2014+Mazda 6 and 2013+ CX-5 with manual transmissions.

Order the CORKSPORT shifter bushing set here.
